Upright TL38 - Hub Assembly

Page 6-11

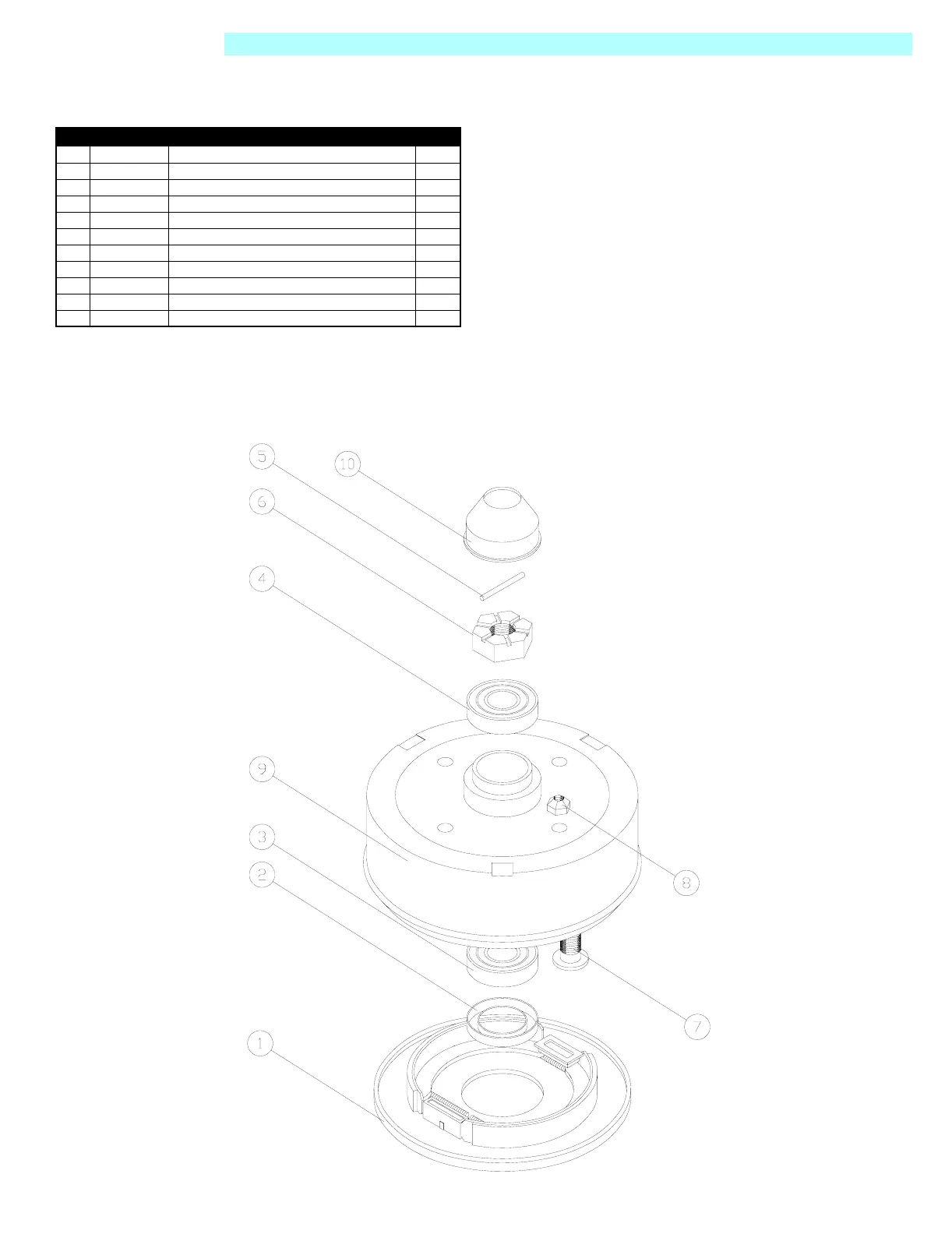

Illustrated Parts Breakdown - Hub Assembly
TL38 Service & Parts
Hub Assembly
500050-001
Item Part Description QTY.
1 500050-003 LEFT HAND BRAKE ASSEMBLY 1
* 500050-004 RIGHT HAND BRAKE ASSEMBLY 1
2 058571-000 GREASE SEAL 1
3 057083-000 INNER BEARING 1
4 057084-000 OUTER BEARING 1
5 - SPLIT PIN 1
6 - AXLE NUT 1
7 057471-000 WHEEL STUD M12 4
8 057474-000 WHEEL NUT M12 4
9 500050-002 DRUM 1
10 057089-000 HUB CAP 1
