Upright TL38 - Page 75

Page 6-12

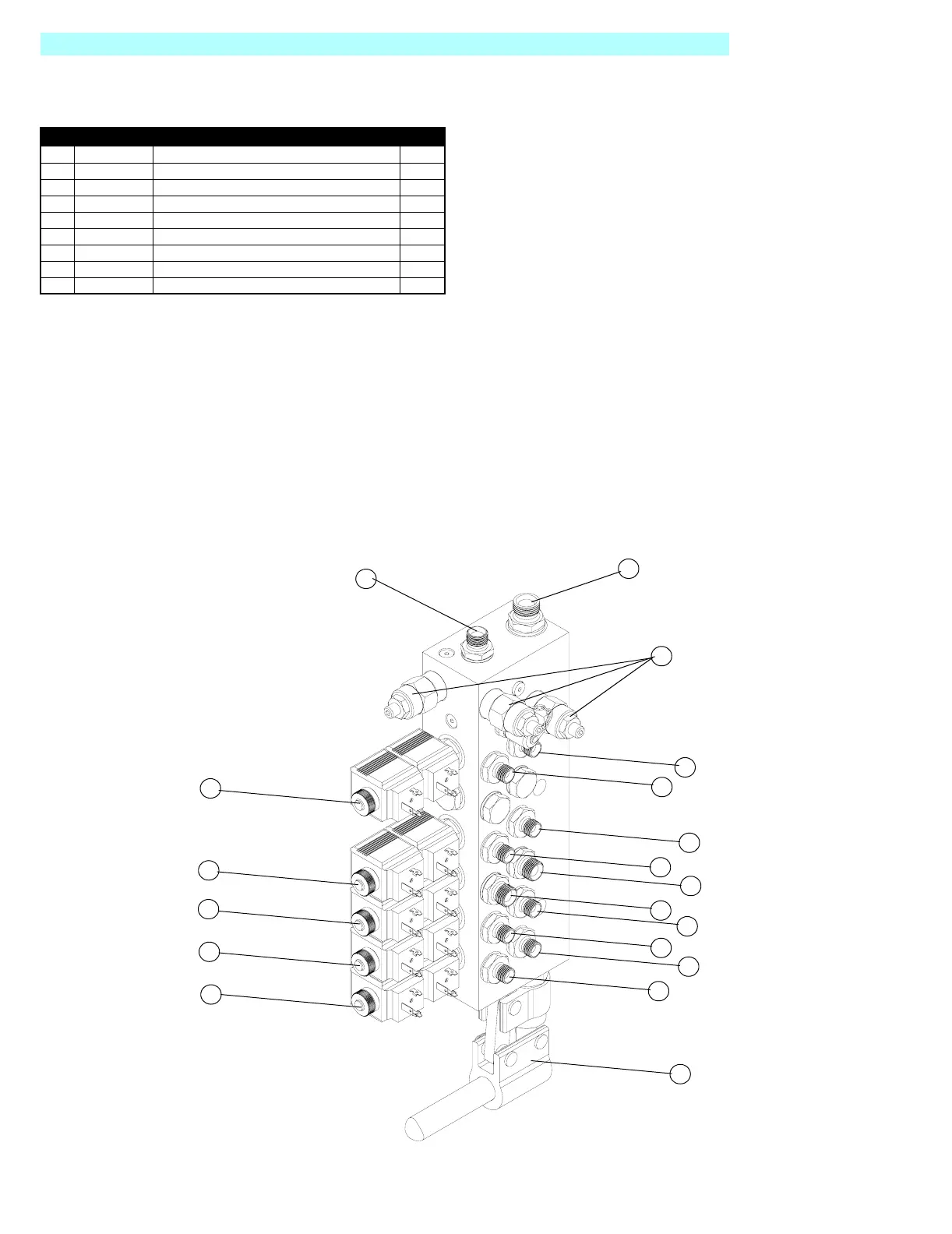

Illustrated Parts Breakdown - Hydraulic Block
TL38 Service & Parts
Hydraulic Block
500055-000
Item Part Description QTY.
1 057377-000 MALE / MALE FITTING 1/2 X 1/2 1
2 058722-000 RELIEF VALVE 3
3 057122-000 MALE / MALE FITTING 3/8 X 3/8 3
4 057121-000 MALE / MALE FITTING 3/8 X 1/4 8
5 500261-002 HANDPUMP 1
6 503351-000 SOLENOID VALVE, SLEW 1
7 503352-000 SOLENOID VALVE, LEVEL 1
8 503535-000 SOLENOID VALVE, TELE 1
9 503354-000 SOLENOID VALVE, LIFT 2
1
2
3
4
5
6
7
8
9
9
3
4
4
4
4
4
4
4
3
