Upright TL38 - Lubrication

Page 3-3
Maintenance 3.3 - Lubrication
TL38 Service & Parts
3.3 LUBRICATION

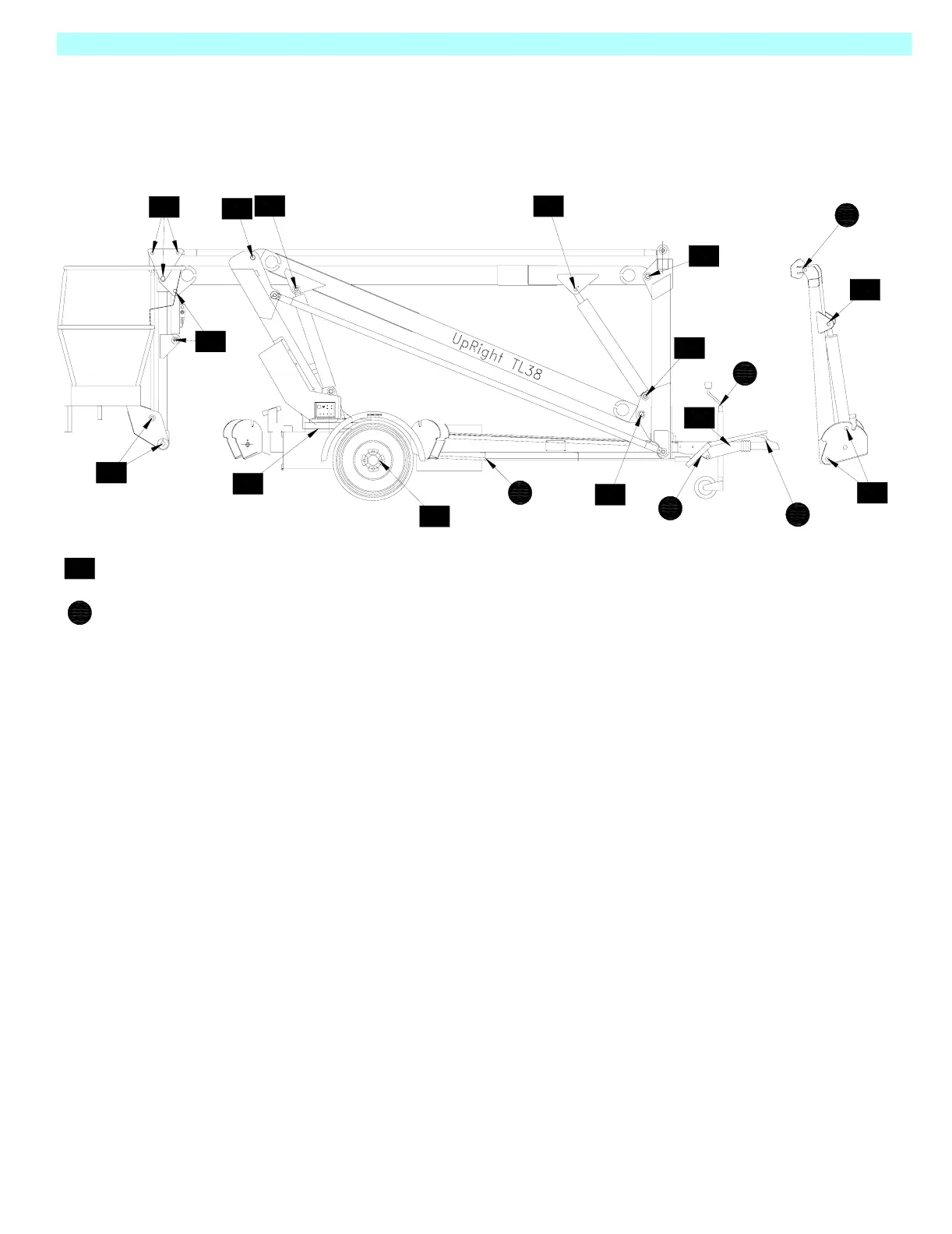

See figure below for lubrication points on the TL38
Grease Nipple Locations
2 per Outrigger Cylinder ___________________________ :8
1 per Outrigger Pivot Boss _________________________ :4
2 per Lower Boom Pivot Bosses _____________________ :2
1 per Upper Boom Pivot Boss_______________________ :1
1 per Jib Boom Pivot Boss _________________________ :1
2 per Slew Ring______________________________ :2
2 per Jib Cylinder ____________________________ :2
2 per Lower Lift Cylinder ___________________________ :2
2 per Upper Lift Cylinder ___________________________ :2
1 per Towhitch coupling____________________________ :2
Total__________________________________________ :26
Grease Nipple (Grease Type - Litium Sulphate, Water Resistant, ISO220 Oil + NLG12 Thickness e.g. Mobil HP222)
Other (Oil Type - ISO 46 e.g. Mobil DT25)
