Upright TL38 - Page 37

Page 3-14
Maintenance 3.9 - Hydraulic Manifold
TL38 Service & Parts

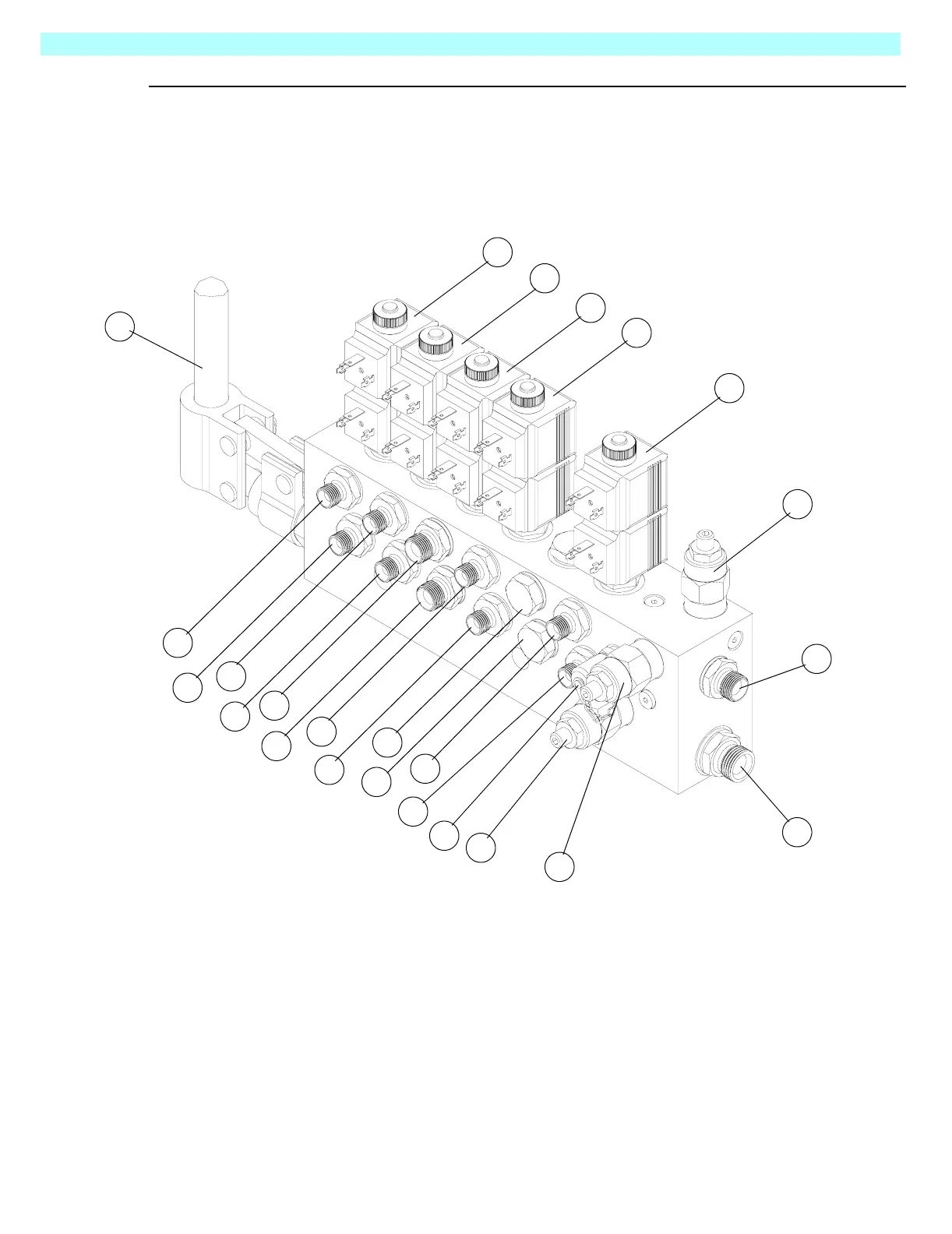

Figure 3-5: Hydraulic Manifold
1. Hand Pump
2. FITTING (3/8” - 1/4” MALE/MALE)
3. FITTING (3/8” - 1/4” MALE/MALE)
4. FITTING (3/8” - 1/4” MALE/MALE)
5. FITTING (3/8” - 1/4” MALE/MALE)
6. FITTING (3/8” - 3/8” MALE/MALE)
7. FITTING (3/8” - 3/8” MALE/MALE))
8. FITTING (3/8” - 1/4” MALE/MALE)
9. FITTING (3/8” - 1/4” MALE/MALE)
10. Blanking Cap
11. Blanking Cap
12. FITTING (3/8” - 1/4” MALE/MALE)
13. FITTING (3/8” - 1/4” MALE/MALE)
14. Test Port
15. CROSS LINE RELIEF VALVE (SLEW)
16. CROSS LINE RELIEF VALVE (SLEW)
17. FITTING (1/2” - 1/2” MALE/MALE)
18. FITTING (3/8” - 3/8” MALE/MALE))
19. Main Relief Valve
20. Solenoid Valve (Slew)
21. Solenoid Valve (Level)
22. Solenoid Valve (Telescope)
23. Solenoid Valve (Lower Boom)
