Page 3-18
Maintenance 3.12 - Hydraulic Cylinder (lower boom)
TL38 Service & Parts
3.12 HYDRAULIC CYLINDER (LOWER BOOM)
REMOVAL
NOTE: Due to the force on the pins caused by the weight of the booms, it is generally nec-
essary to use a sling and overhead crane of suitable capacity to assist in the removal of
the cylinder pins.
1. Set the machine up on level ground with all 4 outriggers deployed.
2. Securely attach a sling to the second post and to an overhead crane.
3. Disconnect the two hoses from the cylinder body and plug. Note which hose goes to which
port.
4. Remove lock plate securing bolt and spring washer from both the rod end pin and body end
pin.
5. Remove the lock plates.
6. Take up the slack on the sling to remove the weight of the booms on the rod end pin.
7. Knock the rod end pin out pin out.
8. Knock the body end pin out.
9. Remove cylinder.
FOR DISASSEMBLY, CLEANING AND INSPECTION, REASSEMBLY
S
EE SECTION 3-17

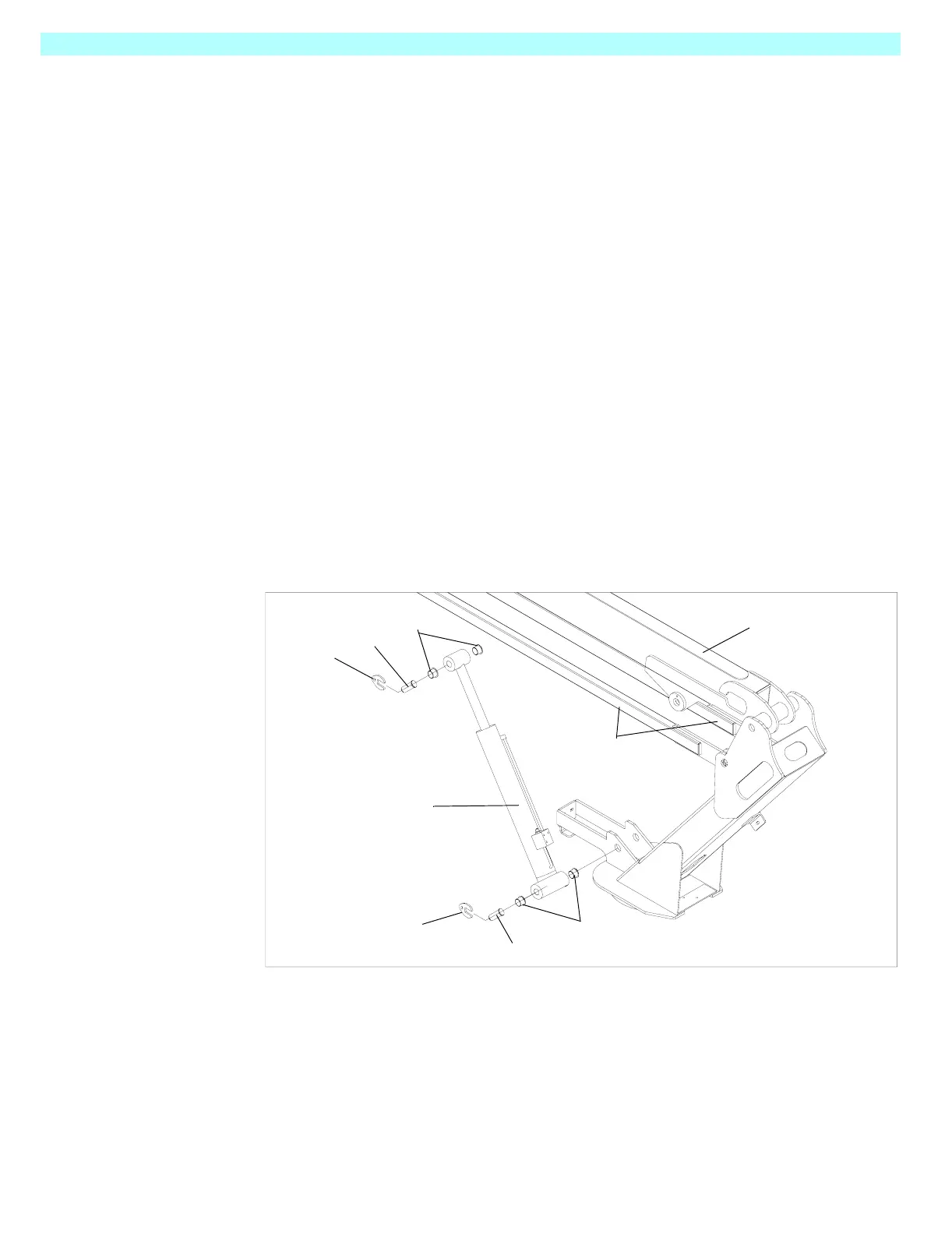

1. Cylinder
2. Lock Plate
3. Pivot Pin
4. Bushing
5. Lower Boom
6. Tie Bars
1
2
3
4
5
6
2
3
4
