Maintenance 3.15 - Disassembly, Cleaning, Inspection and Assembly of cylinders
TL38 Service & Parts
ASSEMBLY
1. Lubricate and install a new complete set of seals on both the end cap and piston.
2. Slide the end cap onto the rod (with the tab washer where applicable) and then the piston
head.
3. Screw on the piston locknut (fitting roll pin and grub screw where applicable).
4. Lubricate the entire assembly’s seals and slide the piston into the cylinder body.
5. Screw end cap onto end of cylinder body.
6. Bend down tab on tab washer.
7. Insert all cartridge valves and fittings into the cylinder valve block.

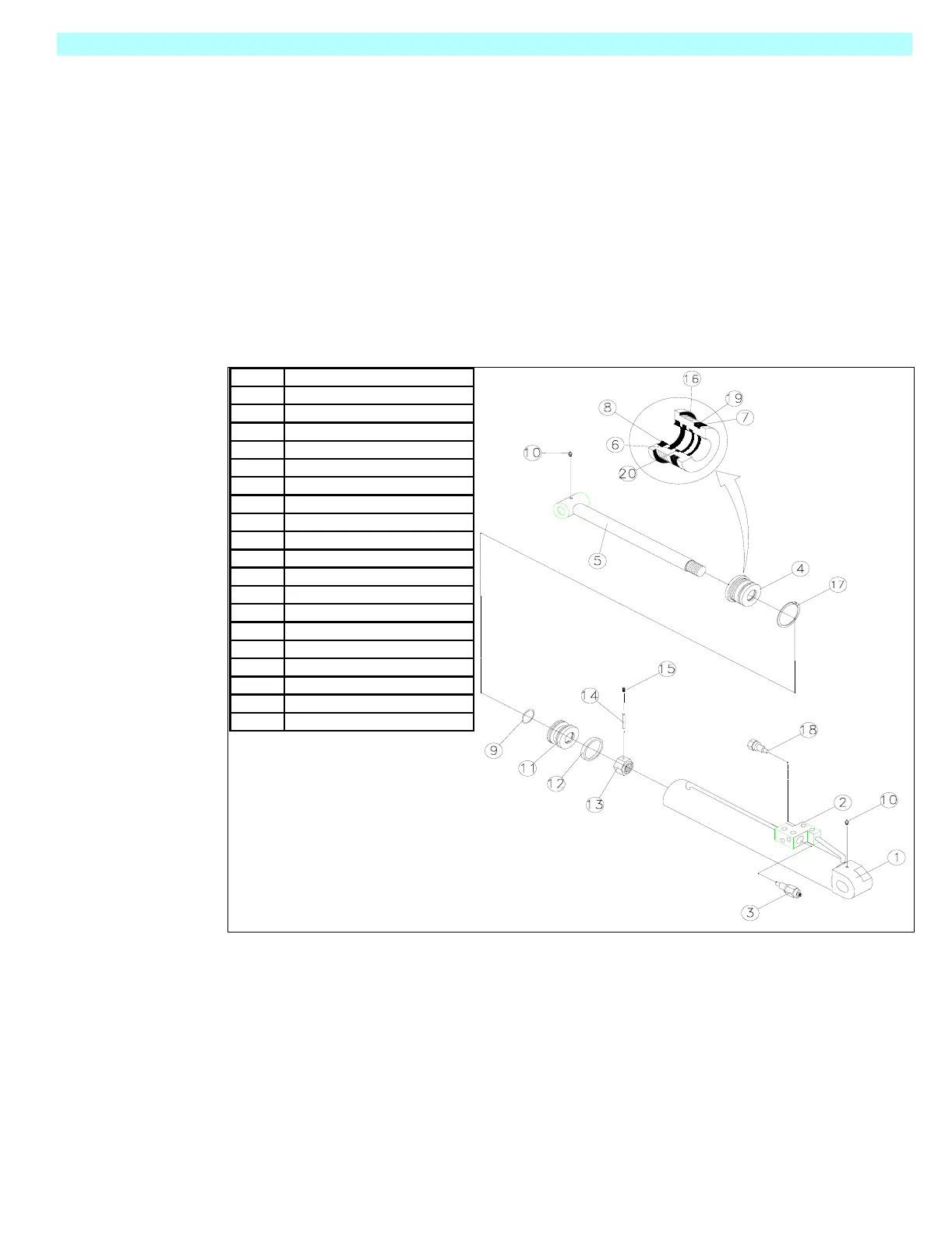

1 CYLINDER BOD
2 VALVE BOD
3CARTRIDGE
4 END CAP
5 ROD AND END PIVOT
6 ROD SEAL
7O-RING
8 WIPER
9 PISTON O-RING
10 GREASE NIPPLE
11 PISTON HEAD
12 PISTON SEAL
13 PISTON LOCKNUT
14 ROLL PIN
15 GRUB SCREW
16 END CAP GLAND
17 TAB WASHER
18 CARTRIDGE
19 PTFE SEAL
20 ROD SEAL
