Upright X Series User Manual

Page 9X Series
B
Y
C
RANE
Secure straps to Lugs only.
B
Y
F
ORKLIFT
Figure 7:
Transporting the Work Platform
Forklift from the rear of the machine
using the forklift pockets provided. If
necessary, the machine may be fork-
lifted from the side by lifting under the
Chassis Modules.
B
Y
T
RUCK
1. Maneuver the work platform into
transport position and chock the
wheels. The platform must be in
the fully lowered position for trans-
port.
2. Secure the work platform to the
transport vehicle by attaching
chains or straps of adequate load
capacity to the front and rear Tie
Downs.
T
RANSPORTING
T
HE
W
ORK
P
LATFORM
WARNING
!
!
Forklifting is for transporting only.
See specifications for weight of the work platform and be certain that forklift is
of adequate capacity to lift the platform.

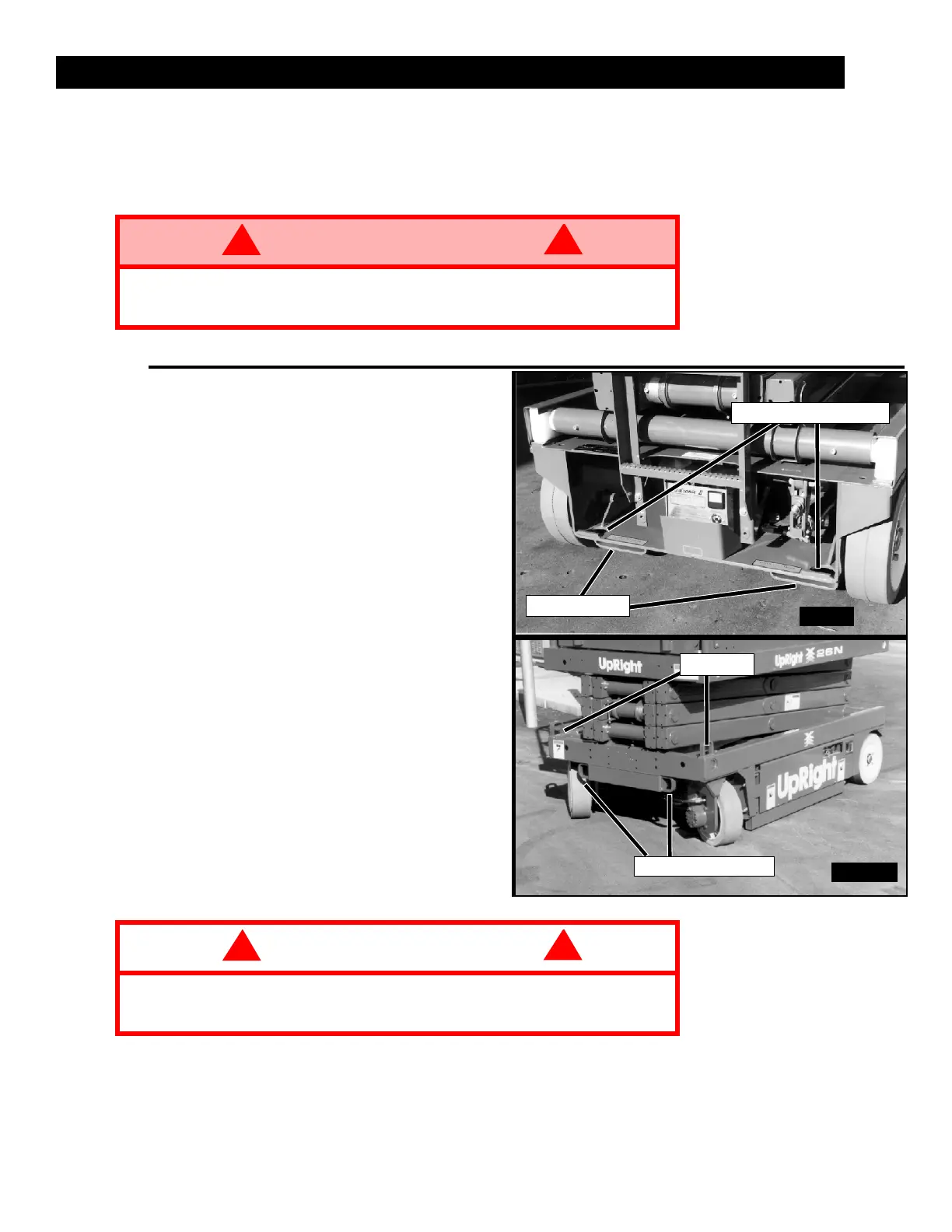

Rear Tie Down/Lift Lugs
Front Tie Down Lugs
Lift Lugs
REAR
Forklift Pockets
FRONT
CAUTION
!
!
Front tie down lugs are not to be used to lift work platform.
Overtightening of chains or straps attached to tie down lugs may result in
damage to work platform.
