Page 10 X Series

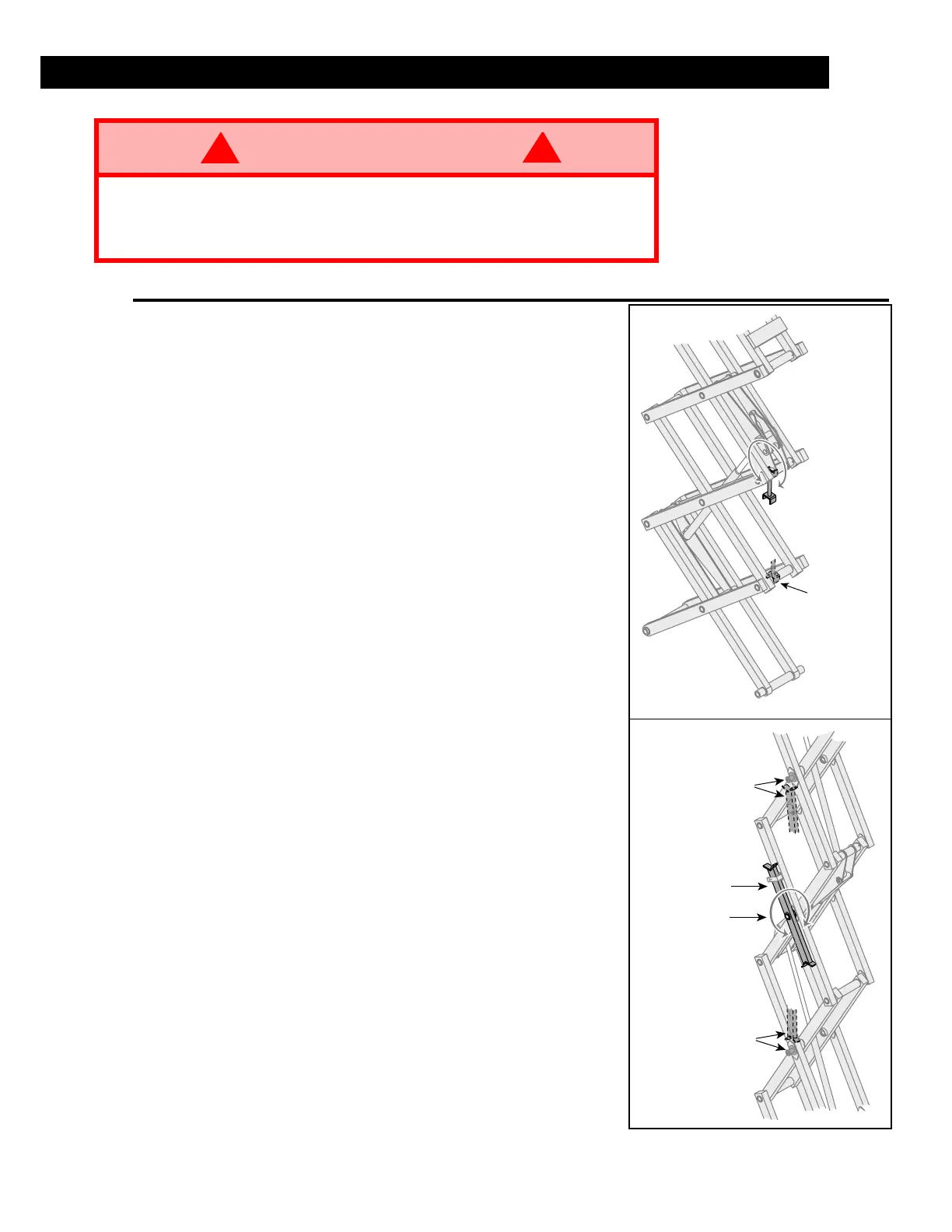

Figure 8:
Blocking the Elevating Assembly
B
LOCKING
E
LEVATING
A
SSEMBLY
INSTALLATION
1. Park the work platform on a firm level surface.
2. Pull Chassis EMERGENCY STOP Switch to the ON
position.
3. Pull Platform EMERGENCY STOP Switch to the ON
position.
4. Turn and hold the Chassis Key Switch to CHASSIS.
5. Push the Chassis Lift/Lower Switch to LIFT to elevate
the platform until the Scissor Brace can be rotated to
the vertical position.
6. X20N, X20W, and X26N-From rear of machine, lift the
Scissor Brace from its stowed position. Rotate upward
and outward then down until it is hanging vertical
below its attachment point.
7. X31N-From the left side of the machine, pull the lock-
ing pin securing the brace. Rotate the Scissor Brace
counterclockwise until it is in the vertical position.
8. Lower the platform by pushing the Chassis Lift/Lower
Switch to LOWER and gradually lower the platform
until the Scissor Brace is supporting the platform.
REMOVAL
1. Using the Chassis Controls, gradually elevate the plat-
form until the Scissor Brace is clear.
2. X20N, X20W, and X26N-Rotate Scissor Brace out-
ward and upward over its mounting point until it rests
in the stowed position.
3. X31N-Rotate scissors brace clockwise until the locking
pin engages.
4. Lower the platform by pushing the Chassis Lift/Lower
Switch to LOWER to completely lower the platform.
M
AINTENANCE
WARNING
!
!
Never perform service while platform is elevated without first blocking the
elevating assembly.
DO NOT
stand in elevating assembly area while deploying or storing brace.
DO NOT
block elevating assembly with a load on the platform.
BRACE RESTS ON
WELDMENT WHEN IN
BLOCKING POSITION
ROTATE BRACE
CLOCKWISE
TO BLOCK
PIN RESTS ON
BRACE WHEN IN
BLOCKING POSITION
SCISSOR BRACE
IN REST POSITION
BRACE ROTATES
TO BLOCKING
POSITION
BRACE RESTS ON
PIN WHEN IN
BLOCKING POSITION
