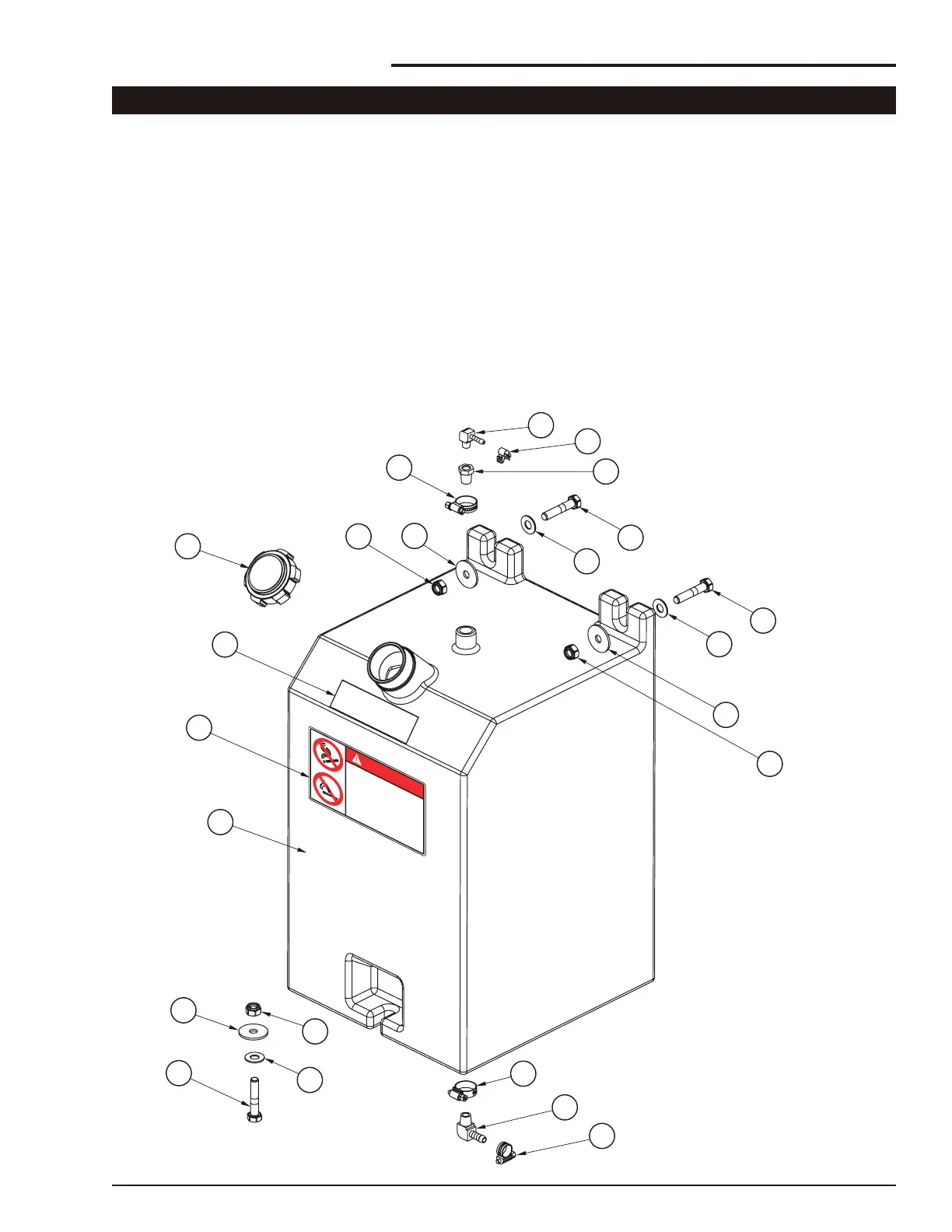

Fuel tank assembly, diesel fuel
Item Part No Qty Description
1. 3603-10 3 Plain washer
2. 3610-10050 3 Metric bolt
3. 3611-10 3 Nyloc nut
4. 3618-10 1 Hose clamp
5. 3618-11 2 Hose clamp
6. 3618-14 1 Hose clamp
7. 561706 1 Tank, 13 gallon
8. 563726 1 Elbow, male, BSPT
9. 605256 1 Cap, vented, standard
11955 1 Cap, lockable, option
10. 967309 1 Elbow, male, BSPT
11. 5560179 3 Flat washer, special
12. 7720201 1 Fitting, reducer
13. 605726 1 Decal, diesel fuel only
14. 476706 1 Decal, danger explosive fumes
SR3370 & SR2770 (CE) – 12864B page 1 - 27
