Manifold assembly, 4 wheel drive
Item Part No Qty Description
0. 12569A 1 4 wheel drive manifold block assembly
1. 12770-350606 5 Adapter, 90
O
elbow, 9/16" UNO -> 3/8" STCF
2. 12770-330806 8 Adapter, straight, 3/4" UNO -> 3/8" STCF
3. 12770-330606 1 Adapter, straight, 9/16" UNO -> 3/8" STCF
4. 12770-330808 2 Adapter, straight, 3/4" UNO -> 1/2" STCF
6. 12569-1 1 Selector valve series parallel
7. 12569-2 4 Pilot operated selector valves
8. 12569-3 2 Flow divider combiner
9. 12569-4 2 Drive motor relief valves
page 2 - 8 SR3370 & SR2770 (CE) – 12864B

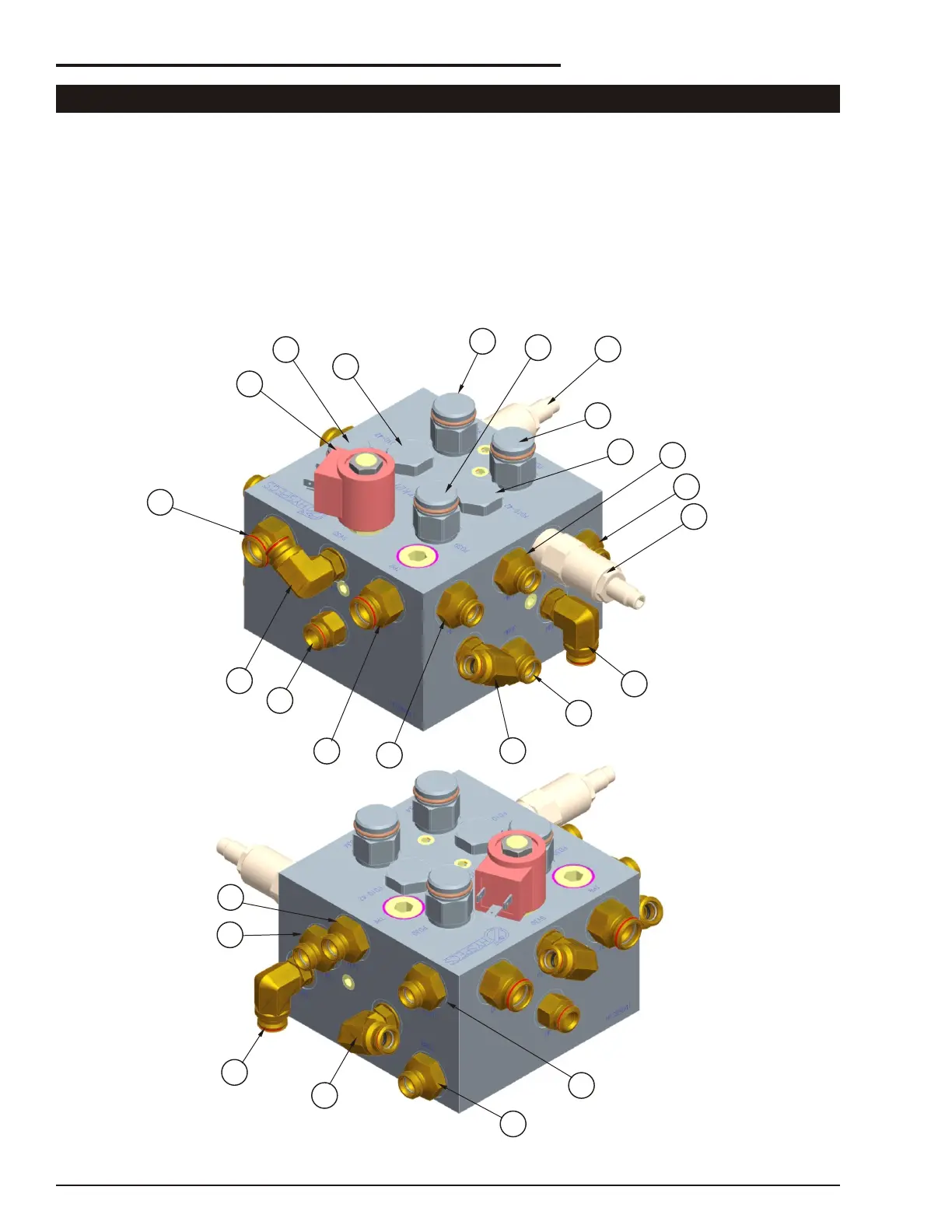

Manifold assembly, 4 wheel drive
1
1
2
2
2
2
1
1
1
3
2
2
2
2
4
4
9
9
7
7
7
7
6
8
8
