Upright X33RT - Flashing Light Installation

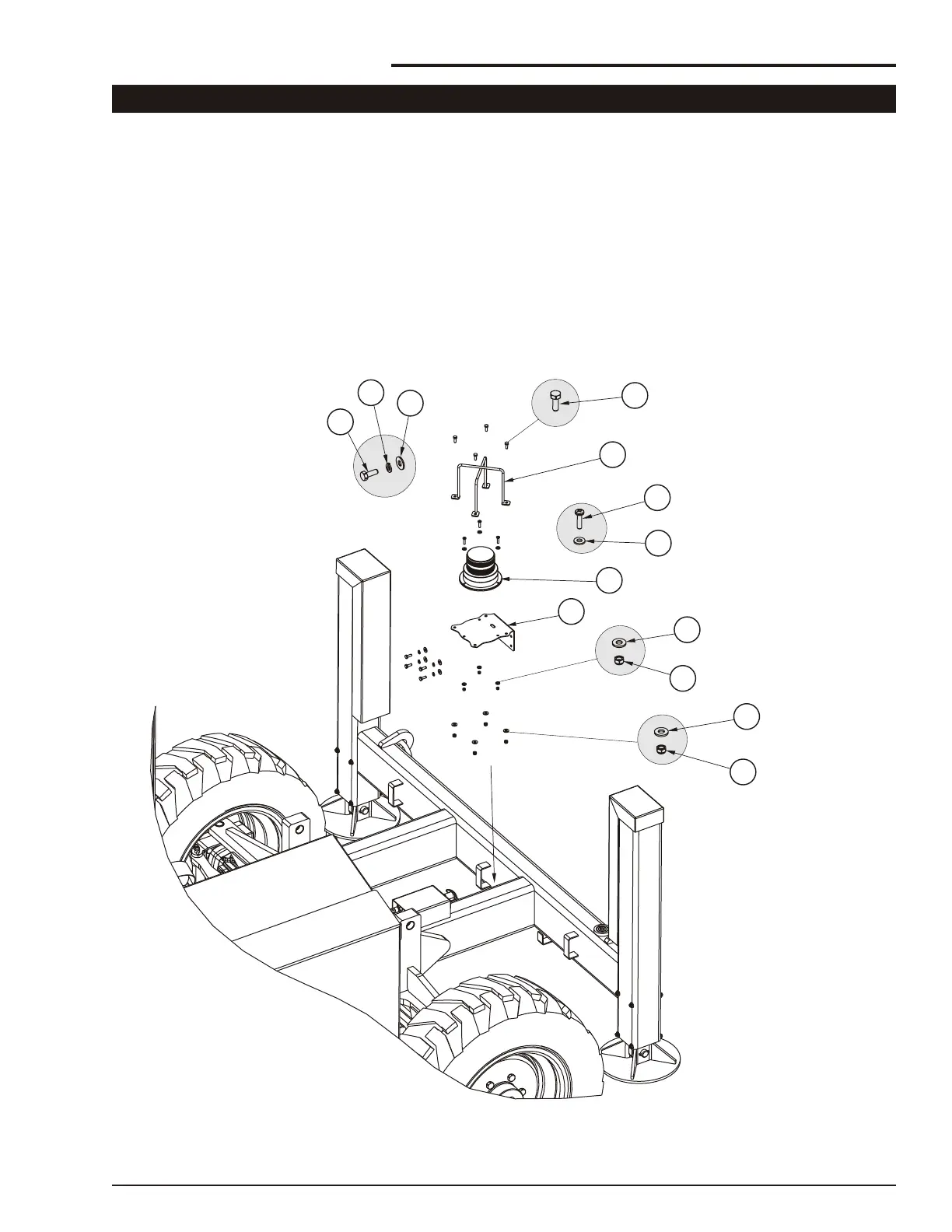

Flashing light installation
Item Part No Qty Description
1. 3610-06016 8 Bolt
2. 12034 1 Guard, strobe light
3. 3604-05020 3 Screw, pan head
4. 3603-05 6 Plain washer
5. 1866-003 1 Strobe, amber
6. 1866-002 1 Bracket, strobe light
7. 3611-05 3 Nyloc nut
8. 3603-06 8 Plain washer
9. 3611-06 4 Nyloc nut
10. 3605-06 4 Spring washer
