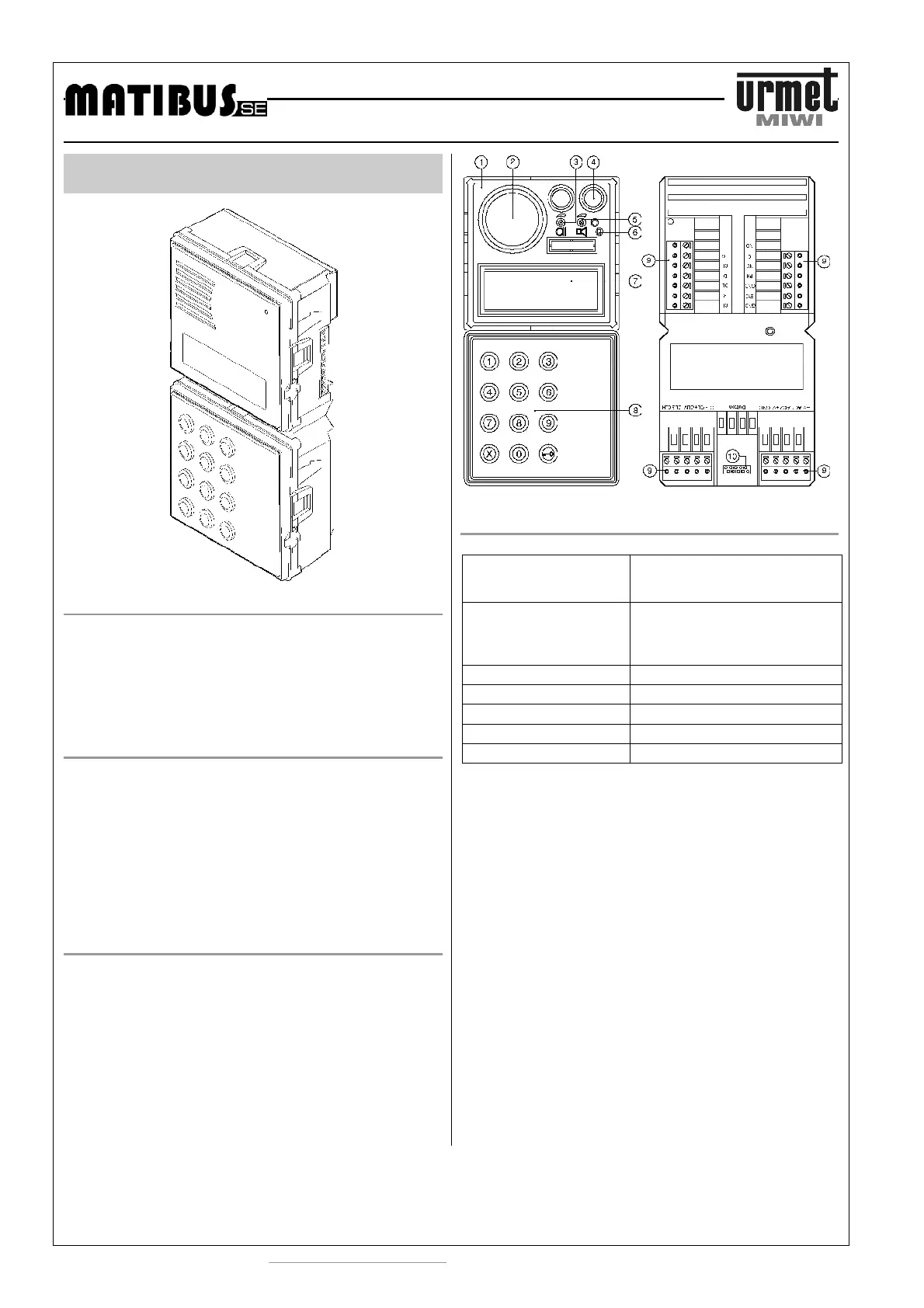

SINTHESI CALL MODULE REF. 1052/13
http://www.miwiurmet.com.pl e-mail:miwi@miwiurmet.com.pl
32
SINTHESI CALL MODULE WITH KEYBOARD
REF. 1052/13
BASIC FEATURES
Digital call module with keyboard ref. 1052/13 is designed for
digital call system MATIBUS
SE
and is based on SINTHESI call
module. Panel could be upgraded to video door phone system by
adding camera module ref. 1745/70 (B/W) or ref. 1745/40 (Colour).
Call module could be wall or flush mounted (accessories must be
bought separately).
BASIC SYSTEM FUNCTIONS
1. Calling to all house phones,
2. General and individual opening codes,
3. Dallas key reader (only in 1052/15../15D and 1052/16../16D),
4. Exit transmitter NC-O-NO controlled by general and individual
opening codes and additional button in the house phone,
5. Open door input.
6. Exit dedicated to handling video,
7. Hall button timed input,
8. Programmable system,
9. System information shown on LED display.
STRUCTURE
Call module is based on Sinthesi line, it is made from anodizing
aluminum. Ref. 1052/13 corresponds to 2 Sinthesi modules, and is
provided with LED display.
1. Anodizing aluminum front panel,
2. Speaker,
3. Adjustable call module microphone sensitive,
4. Microphone,
5. Adjustable call module speaker volume,
6. Programming button (for use if password is unknown),
7. LED display,
8. Terminal boards
9. Dallas key reader socket.
TECHNICAL SPECIFICATION
Power supply voltage
~ 12 V AC
or
+ 20 V DC
Driving of electrical lock
-with build in three state regulation
of current U
max
=12V
-NO–C–NC maximum value 1A/24V
DC
0L LG line voltage + 7,5…12,5 V DC
0L D line voltage + 15 V DC nom.
Operating temperature
-20°C ÷ +50°C
Size (audio) 2 Sinthesi modules
Size (video) 3 Sinthesi modules
