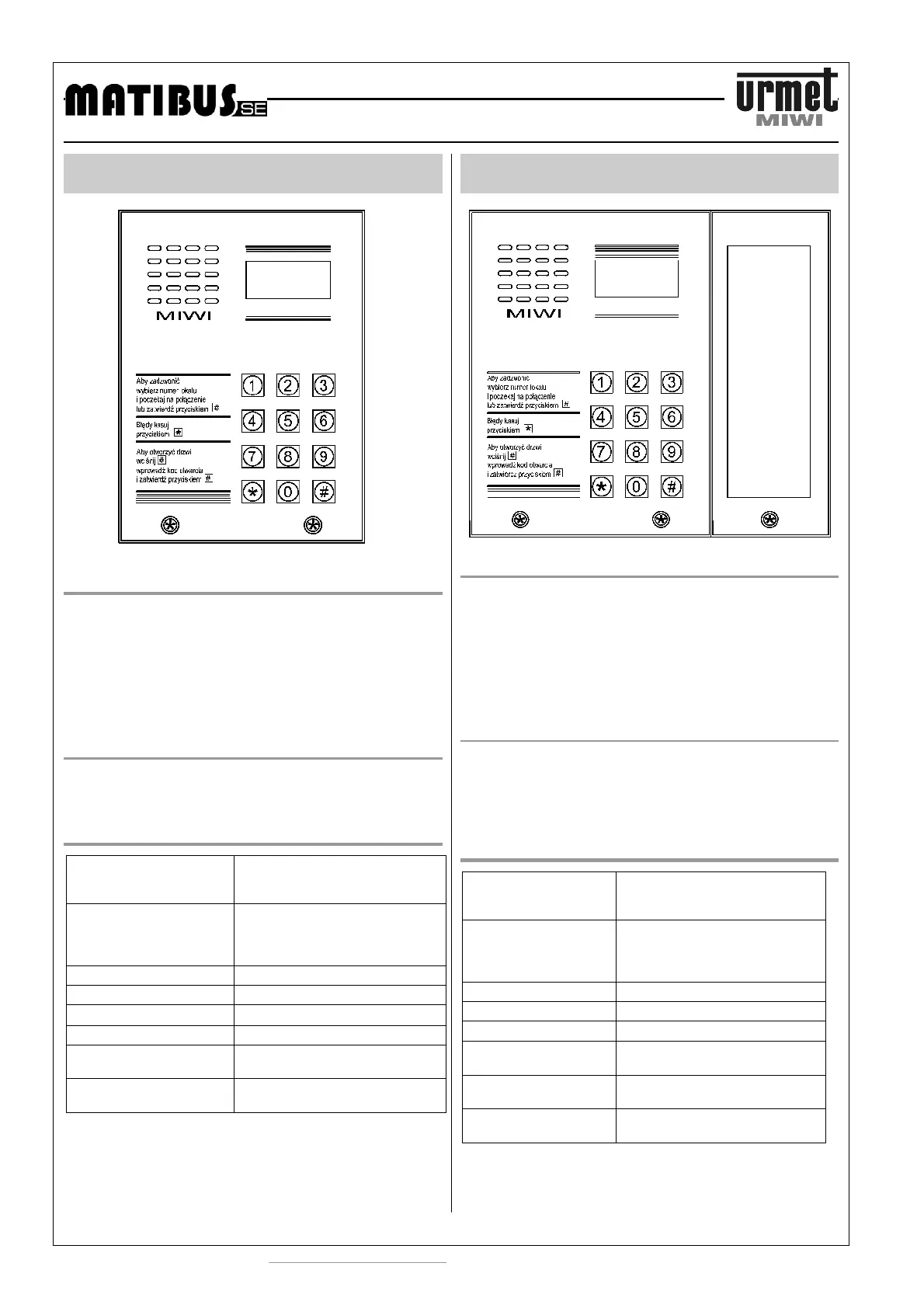

CALL MODULE WITH KEYBOARD
REF. 1052/10…/10D
BASIC FEATURES
Digital call module with keyboard ref. 1052/10…/10D Is designed
for digital call system Matibus SE and is based on MIWUS call
module „Mod.525” (2 modules).
We offer 2 kinds of this call module:
1052/10 wall mounted case
1052/10D wall mounted case with the rain hood
This call module can be optional flush-mounted with additional
frame ref. 525/RP2.
CONSTRUCTION OF THE CALL MODULE
Digital call module with keyboard ref. no. 1052/10…/10D is made of
stainless steel, also the keyboard is made of the same materials
equipped the backlight. This panel is highly vandal-proof.
TECHNICAL SPECIFICATION
Power supply voltage
~ 12 V AC
or
+ 20 V DC
Driving of electrical lock
-with build in three state regulation
of current U
max
=12V
-NO–C–NC maximum value 1A/24V
DC
0L LG line voltage + 7,5…12,5 V DC
0L D line voltage + 15 V DC nom.
Operating temperature
-20°C ÷ +50°C
Size (high x width x deep.) 152 x 110 x 23mm (ref. no 1052/10)
Size (high x width x deep.) 152 x 110 x 23-35mm
(ref. no. 1052/10D)
Size (high x width x deep.) 175 x 135 x 23.6mm
(with frame 525/RP2)
CALL MODULE WITH KEYBOARD
REF. 1052/11…/11D
BASIC FEATURES
Digital call module with keyboard ref. 1052/11…/11D Is designed
for digital call system MATIBUS SE and is based on MIWUS call
module „Mod.525” (3 modules).
We offer 2 kinds of this call module:
1052/11 - wall mounted case
1052/11D wall mounted case with the rain hood
This call module can be optional flush-mounted with additional
frame ref. 525/RP3.
CONSTRUCTION OF THE CALL MODULE
Digital call module with keyboard ref. no 1052/11…/11D is made of
stainless steel, also the keyboard is made of the same materials
equipped the backlight. The panel is provided with backlight
information module, which enables putting a list of users or other
information. This panel is highly vandal-proof.
TECHNICAL SPECIFICATION
Power supply voltage
~ 12 V AC
or
+ 20 V DC
Driving of electrical lock
-with build in three state regulation
of current U
max
=12V
-NO–C–NC maximum value 1A/24V
DC
0L LG line voltage + 7,5…12,5 V DC
0L D line voltage + 15 V DC nom.
Operating temperature
-20°C ÷ +50°C
Size (high x width x
deep.)
152 x 163 x 23mm (ref. no.1052/11)
Size (high x width x
deep.)
152 x 163 x 23-35mm
(ref. no. 1052/11D)
Size (high x width x
deep.)
175 x 188 x 23.6mm
(with frame 525/RP3)
