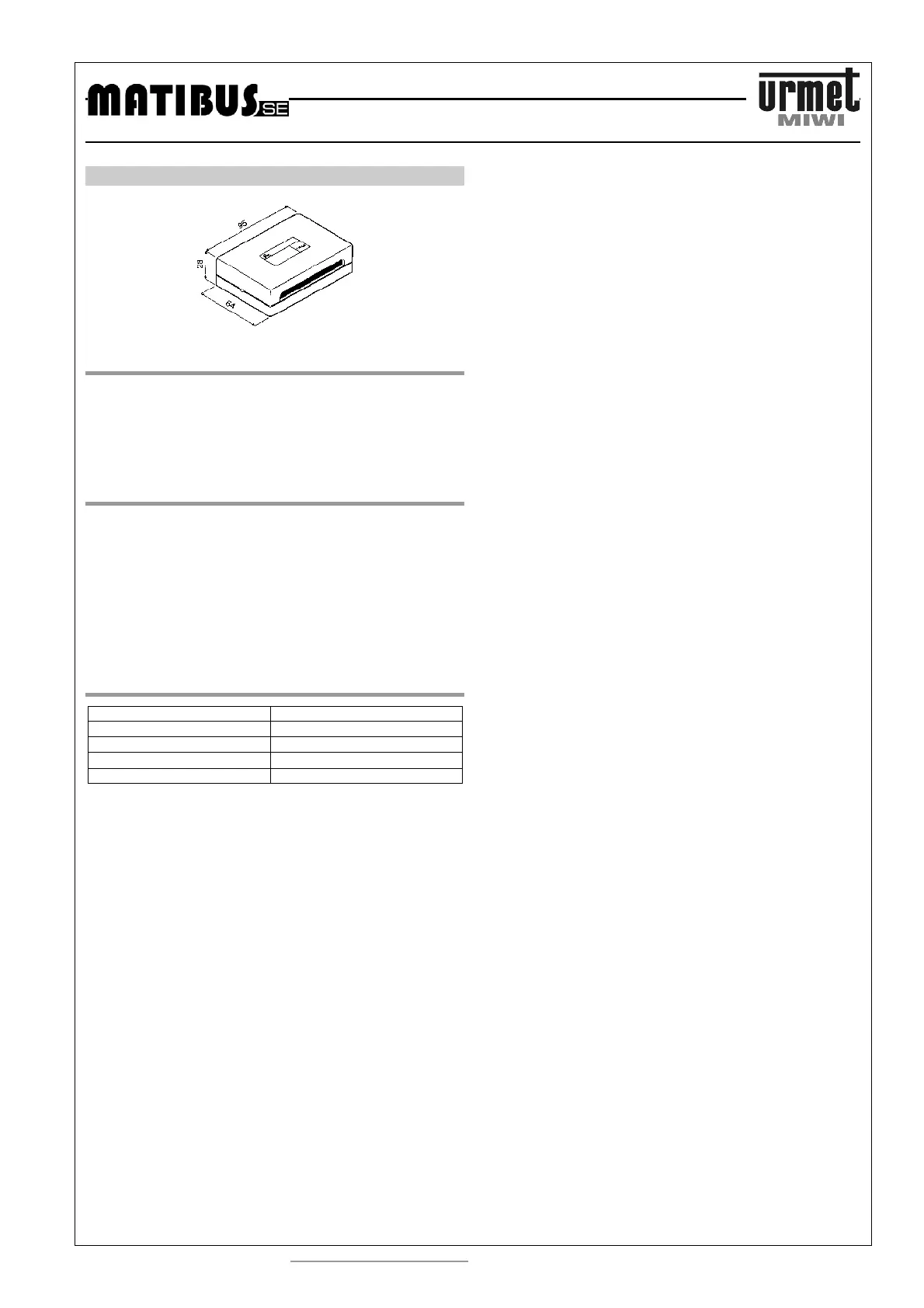

VIDEO DISTRIBUTOR REF. 1794/4 SID
http://www.miwiurmet.com.pl e-mail:miwi@miwiurmet.com.pl
65
VIDEO DISTRIBUTOR REF. 1794/4 SID
BASIC FEATURES
Distributes the video signal in systems with COAX cable. The
typical uses of this product are video signal distribution on floor
level and distribution of the same video signal on several riser
columns. The distributor is provided with 4 independent outputs,
plus one through output.
.
DESCRIPTION OF TERMINALS
R1 Power input (gnd),
R2 Power input (positive),
E Coax input,
U1 – U5 Coax output,
Remove jumper JP1 in the video distributor to use the U5 output for
monitor connection.
TECHNICAL SPECIFICATION
Power voltage 12 - 20 V DC
Consumption with 4 loads 15 mA
Input impedance
75 Ω
Output impedance
75 Ω
Dimension (W x H x D) 95 x 64 x 28 mm
If installation requires more than 10 distributors ref. 1794/4 SID
additional video power supplier should be used (for example ref.
789/2 for each next 15 distributors).
