SPECIFICATIONS
The Models G-A and GK-A are equipped
with stainless steel* product contact parts.
Both machines are approved by the United
States Department of Agriculture, Meat and
Poultry Division.
WARNING: Do not modify this machine!
Any modification or omission of parts could
compromise the safety and sanitation of this
machine and invalidate USDA approval.
Length: ...................................73.73" (1873 mm)
Width: .....................................45.94" (1167 mm)
Height: ....................................49.25" (1251 mm)
Net Weight: ............................740 lbs. (336 kg)
Gross Weight Crated:............950 lbs. (431 kg)
Gross Weight Export Box:.....1150lbs.(522 kg)
(See “Dimensional Drawing”, page 103.)
Motor: 2 H.P., with brake, totally enclosed,
non-ventilated. See motor specification plate
and motor manufacturer's instructions for more
information.
PRODUCT LIMITATIONS
MAXIMUM INPUT PRODUCT SIZE is 5-
1/2" (140 mm) in any dimension. Precut prod-
uct if necessary. Some products that are diffi-
cult to cut may require a smaller size of precut.
PROCESSING STICKY OR CANDIED
PRODUCT will cause friction in the slicing unit.
PROCESSING FIBROUS PRODUCTS
such as meats will result in gradual fiber build-
up on the knife edges, causing crushing and in-
complete cuts.
TRANSVERSE SLICES CANNOT BE PRO-
DUCED from elongated products such as pick-
les, celery or rhubarb. Urschel Laboratories
manufactures equipment better suited for
these applications.
PRODUCTS WHICH ARE EXPLOSIVE or
create a potentially explosive atmosphere
should not be processed by this machine.
NOISE EMISSION

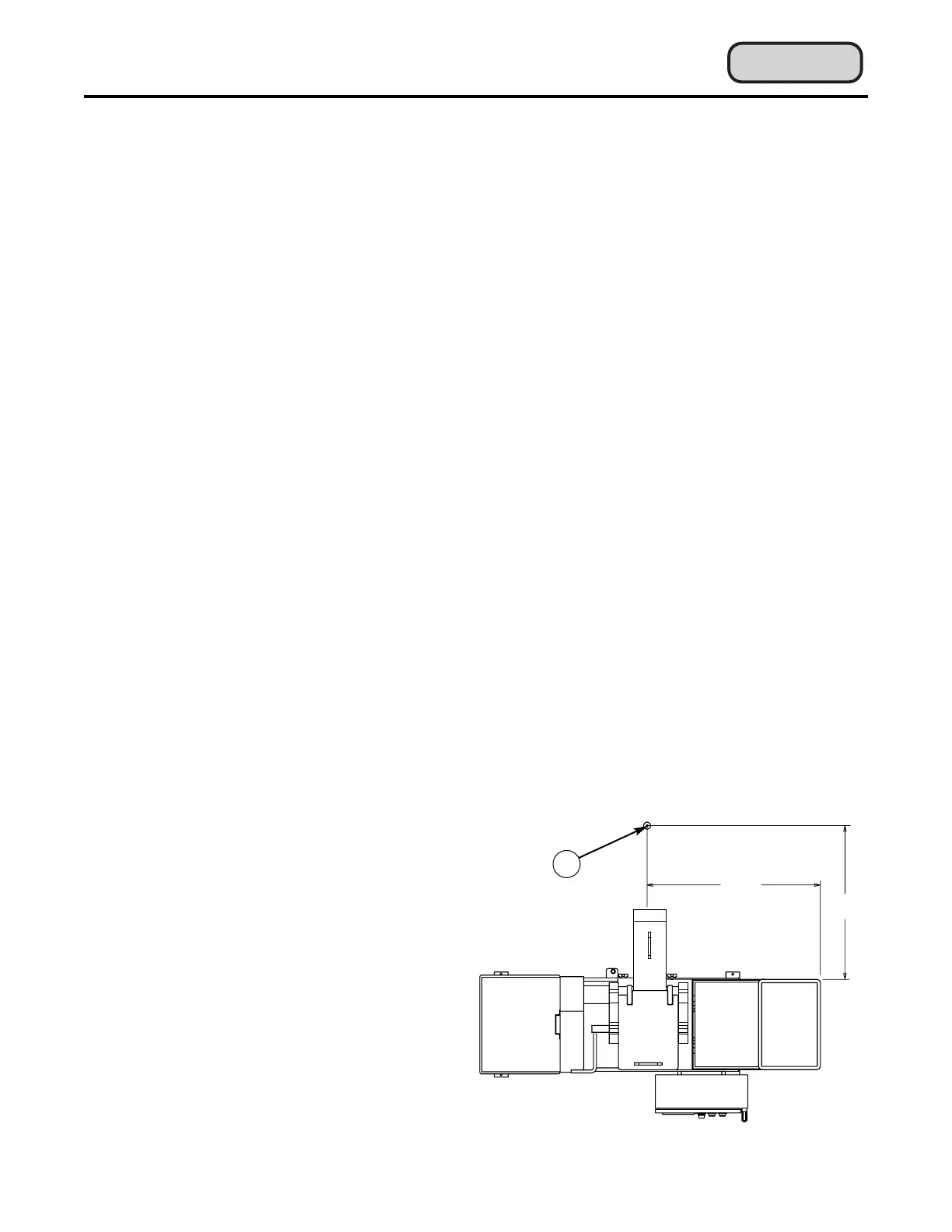

The amount of noise generated by this ma-
chine in use will vary depending on the type,
condition and volume of product being cut, the
size of cut and the acoustical characteristics
of the room in which the machine is installed.
A machine in good condition will register ap-
proximately 81 dB(A) in a free field over a re-
flecting plane when run without product and set
to produce 9/32" (7 mm) dices. At a height of
63" (1600 mm) from the floor and 39.37" (1000
mm) from the machine, maximum sound posi-
tion occurs at a point in front of the discharge
chute on a standard height machine (Figure 9).
Machines set for larger dicing or used without a
crosscut spindle will generate less noise when
measured under similar conditions.
OPERATION
General Information
14
