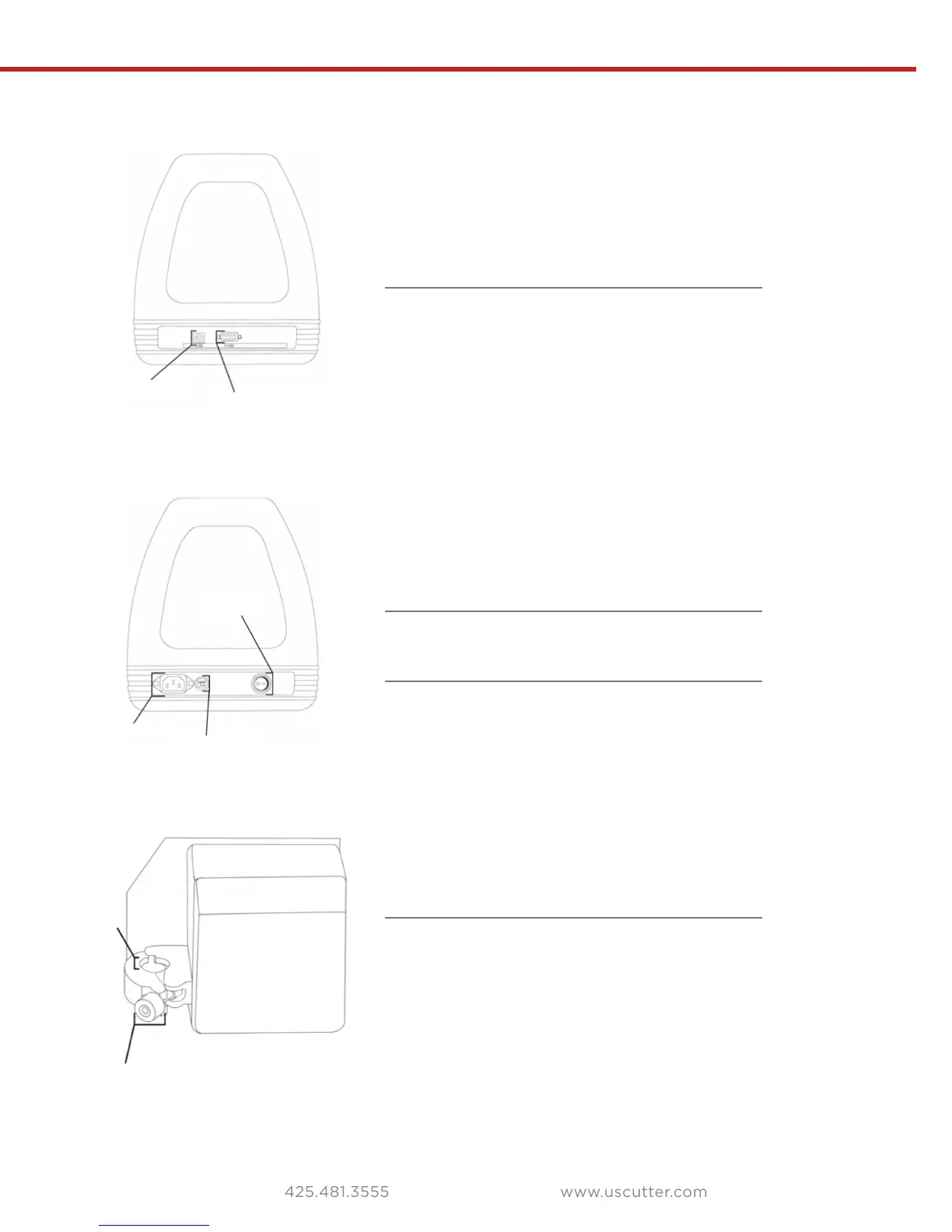

Get to know your cutter
CARRIAGE SLOT
LOCKING KNOB
CARRIAGE SLOT
Holds the blade carriage
in place.
LOCKING KNOB
Allows access to the
blade/pen carriage slots
for exchanging/replacing
carriages.
USB CABLE PORT
USB CABLE PORT
Used to connect a USB
cable from the cutter to a
computer.
SERIAL (COM)
CABLE PORT
Used to connect a serial
cable from the cutter to a
computer.
RIGHT SIDE VIEW
POWER SWITCH
FUSE CARTRIDGE
POWER CABLE PORT
POWER CABLE
PORT
Used to connect a power
cable from the cutter
to a wall outlet or surge
protector.
POWER SWITCH
Main power switch for
turning the power of the
cutter on (1) or o (0).
FUSE CARTRIDGE
Allows access to the fuse
inside of the cutter.
LEFT SIDE VIEW
SERIAL (COM) CABLE PORT
