10

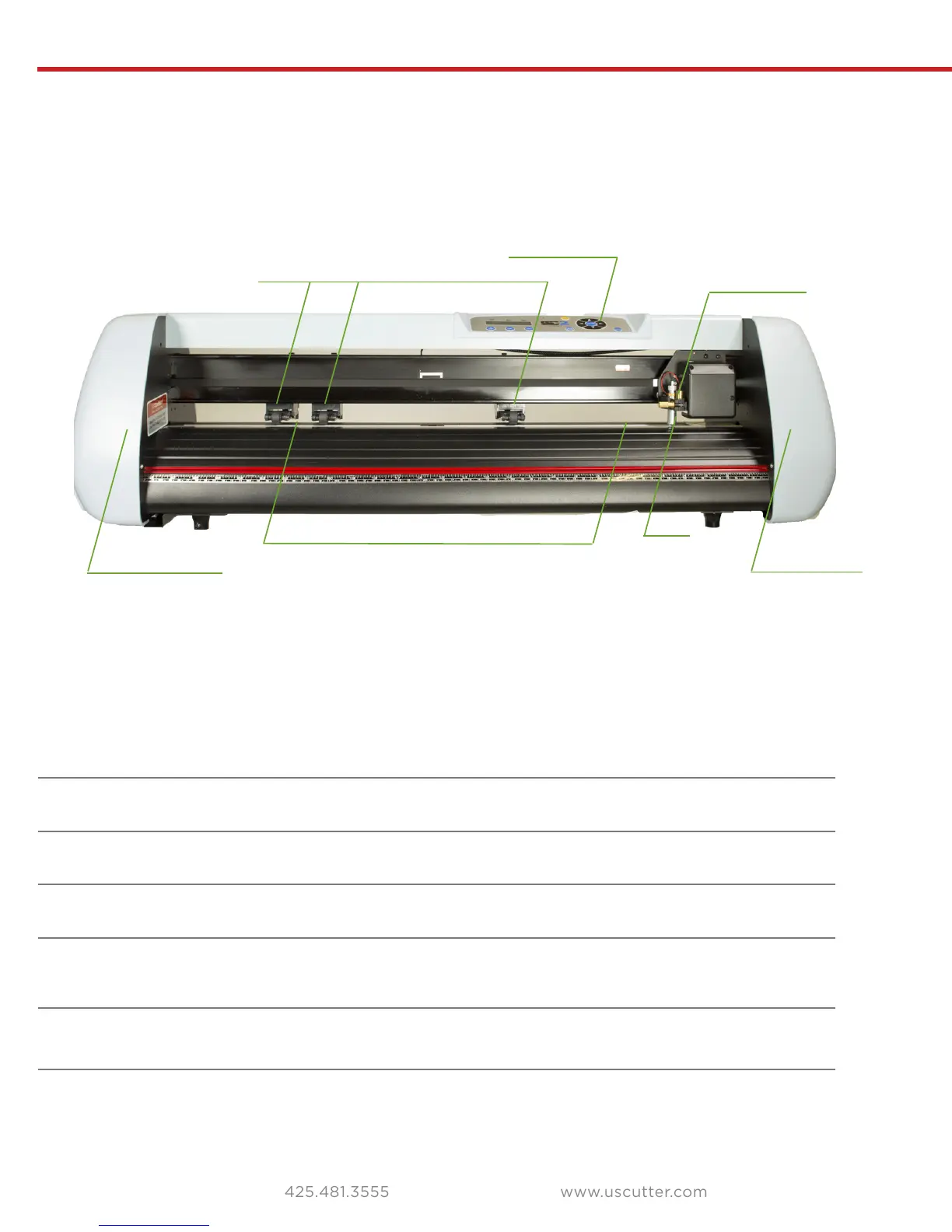

Getting to know your cutter
Before you start cutting, you should familiarize yourself
with the cutter along with its basic parts and functions.
CONTROL PANEL
Used to provide input directly to the cutter. Covered in
detail in the “Control Panel” section of this manual.
CARRIAGE ARM
Holds the blade (or pen) carriage.
PINCH ROLLERS
Holds the media tightly to the feed roller below.
FEED ROLLERS
Positions the cutting material during operation.
LASER
Used by the cutter to determine the location of cut contours
LEFT SIDE COVER
Contains the power cable port, power switch, and fuse
cartridge for the cutter.
RIGHT SIDE COVER
Contains the USB and serial cable ports for the cutter.
FEED ROLLERS
LEFT SIDE COVER
PINCH ROLLERS
CONTROL PANEL
RIGHT SIDE COVER
LASER
CARRIAGE ARM
