USR-TCP232-T2 user manual www.usriot.com
Jinan USR IOT Technology Limited www.usriot.com
4.2.2. TCP Server
1) In TCP Server Mode, T2 monitors local port, it will response and establish a connection when there is a request. When
the T2 receive the data, it will send it to all the client connected to T2, meanwhile, this mode can monitor the connect
timely with keepalive function.
2) Usually it is used in the LAN communicating with TCP client. Adopt the case that more than one PC or phone asking data
without server. Same as the TCP client ,there are different between connect and disconnect.
3) Support synchronizing baud rate.
TCP Client number is from 1 to 16, default value 4. the port is fixed., can not be set to 0.

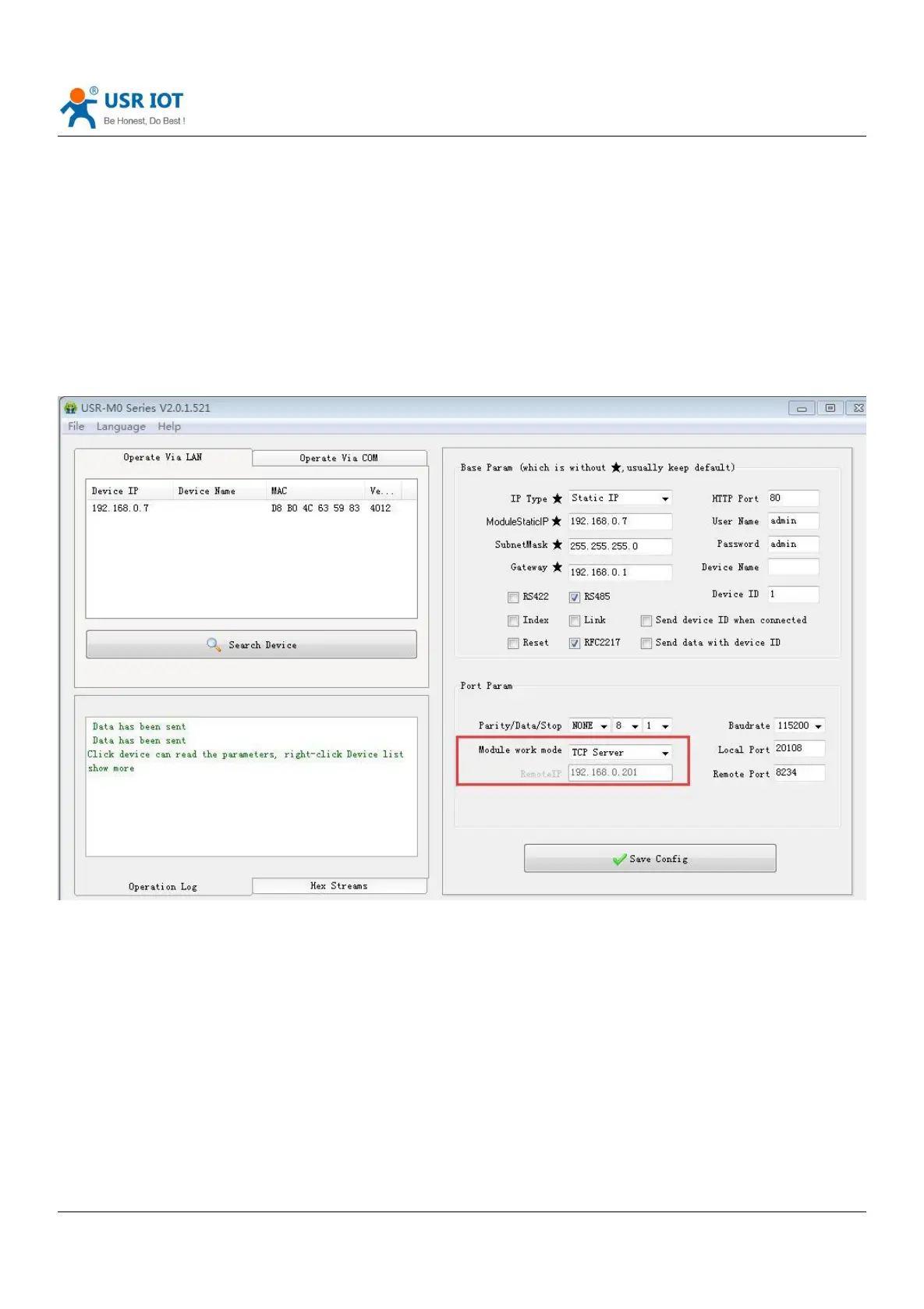

Diagram 4.2.2-1 TCP Server Setting
