USR-TCP232-T2 user manual www.usriot.com
Jinan USR IOT Technology Limited www.usriot.com
29

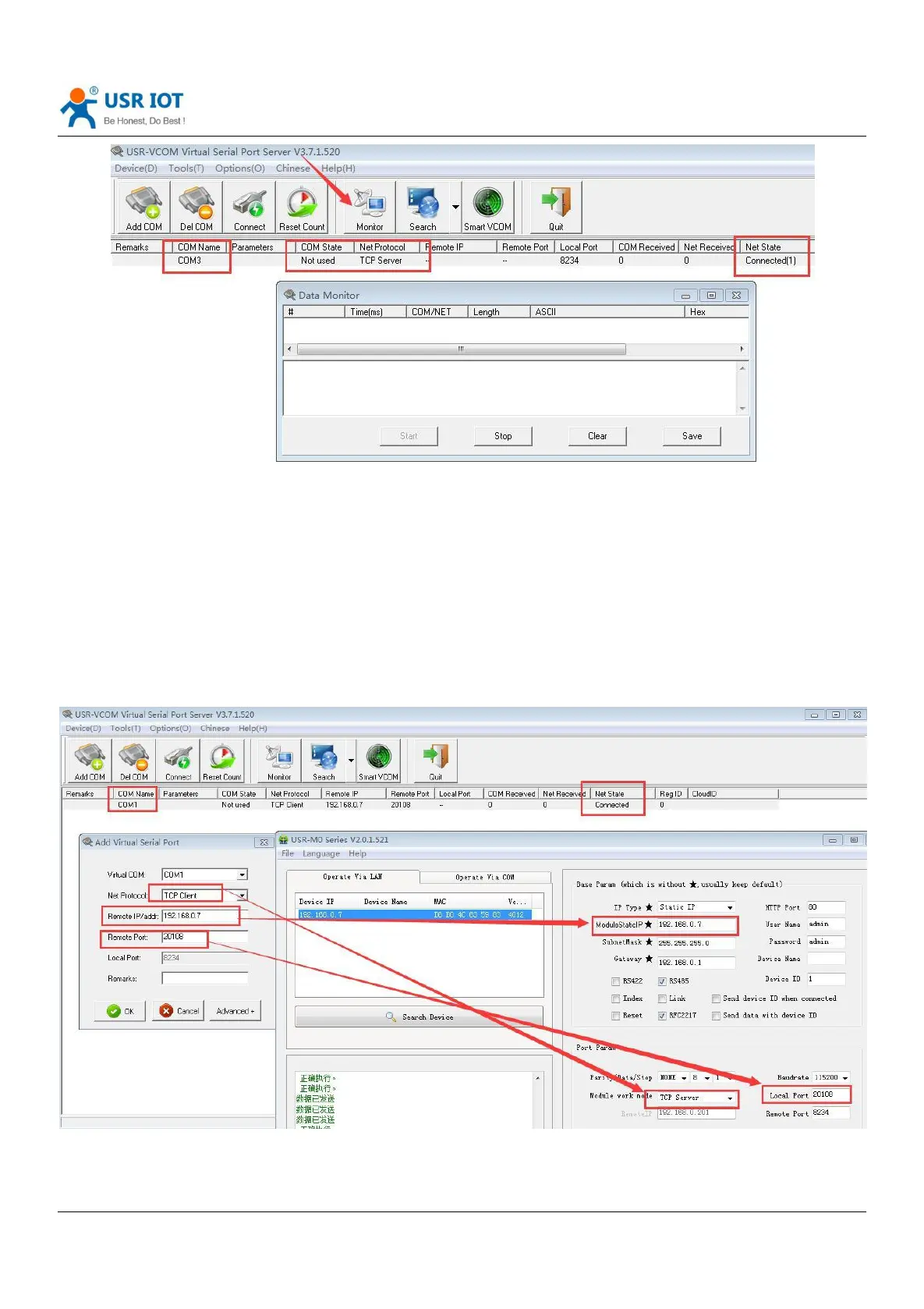

Diagram 4.4.1-2 Monitor Date
4.4.2. Module Work as Server
1)
Set T2 work model: TCP Server.
2) Set virtual port as follows:
Diagram 4.4.2-1 Create Client Virtual Port

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the USR IOT USR-TCP232-T2 and is the answer not in the manual?

USR IOT USR-TCP232-T2 Specifications

General IconGeneral
ModelUSR-TCP232-T2
CategoryControl Unit
TypeSerial to Ethernet Converter
Communication InterfaceRS232, Ethernet
RS232 Port1
Power SupplyDC 5V
Data Bits5, 6, 7, 8
Stop Bits1, 2
Network InterfaceRJ45
Ethernet Port10/100Base-T
Power Input5V
ProtocolTCP/IP, UDP
ParityNone, Even, Odd
Flow ControlRTS/CTS
Basic FunctionBi-directional transparent transmission between RS232 and Ethernet
