4.4. VCOM
USR-VCOM Download: http://www.usriot.com/usr-vcom-setup-software-v3-7-1-520/
USR-VCOM Manual: http://www.usriot.com/usr-vcom-setup-software-user-manual-v3-5-2/
If user’s upper computer and device are all connect by serial port, user can create a COM which has TCP/ IP to realize
remote control by USR-VCOM software.
1) Turn off firewall and anti-virus software.
2) Install USR-VCOM.
I advise user to choose “Search”or “Smart vcom” to create virtual port. Please refer to 4.4.3
4.4.1. Module Work as Client
1) Set module parameters. T2 work model: TCP Client.
2) Open USR-VCOM, set virtual port as follows :

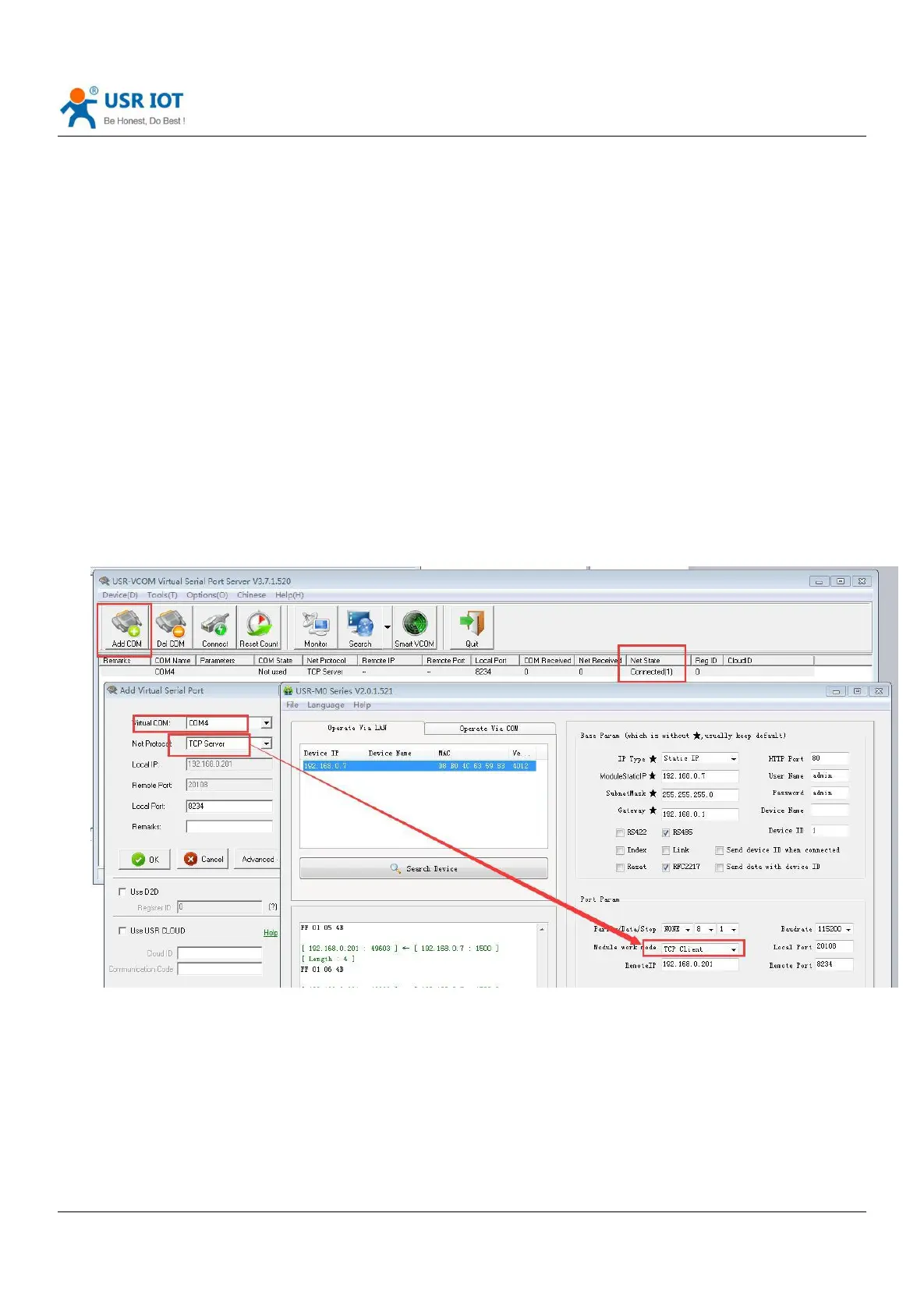

Diagram 4.4.1-1 Create Server Virtual Port

USR IOT USR-TCP232-T2 Specifications

General

Model	USR-TCP232-T2
Category	Control Unit
Type	Serial to Ethernet Converter
Communication Interface	RS232, Ethernet
RS232 Port	1
Power Supply	DC 5V
Data Bits	5, 6, 7, 8
Stop Bits	1, 2
Network Interface	RJ45
Ethernet Port	10/100Base-T
Power Input	5V
Protocol	TCP/IP, UDP
Parity	None, Even, Odd
Flow Control	RTS/CTS
Basic Function	Bi-directional transparent transmission between RS232 and Ethernet
