USR-TCP232-T2 user manual www.usriot.com
Jinan USR IOT Technology Limited www.usriot.com
25

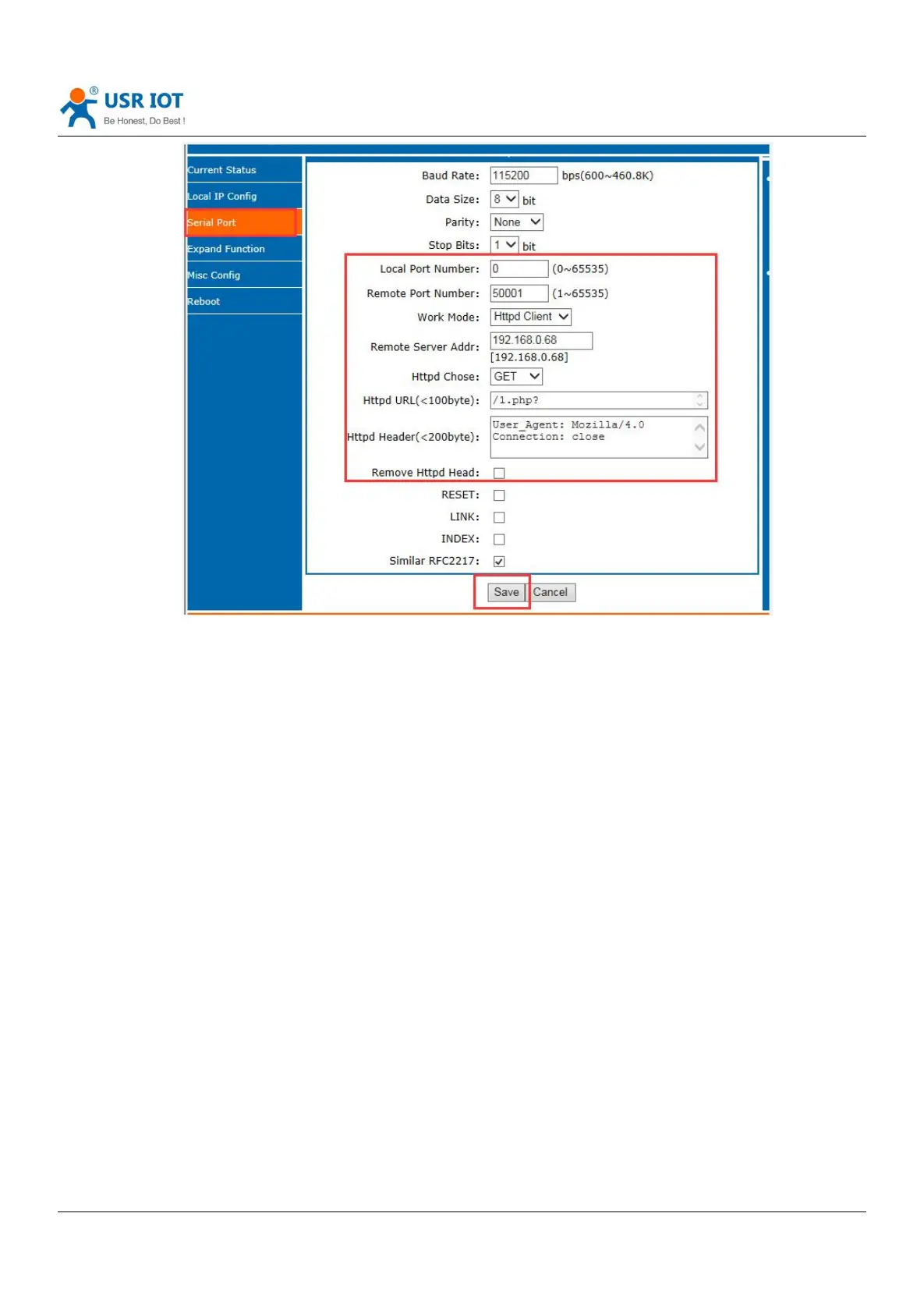

Diagram 4.2.5-1HTTPD client Webpage
1.Setting USR-TCp232-T2 as Httpd Client mode via webpage, and setting corresponded remote port and remote IP.
2.Configure HTTPD request method ( Httpd chose such as Get or Post), Httpd URL(request packet URL) and Httpd
header ( packet header information) by webpage
3.The return data whether drop the package header can be set by webpage: remove HTTPD head
4.Click save, then restart the module to work.
5.Open serial port to send data, then the data of the serial port will submit to your webpage, meanwhile the serial
port will receive the reply.
6. Please refer to the following diagram on sending requests
