USR-TCP232-T2 user manual www.usriot.com
Jinan USR IOT Technology Limited www.usriot.com
44

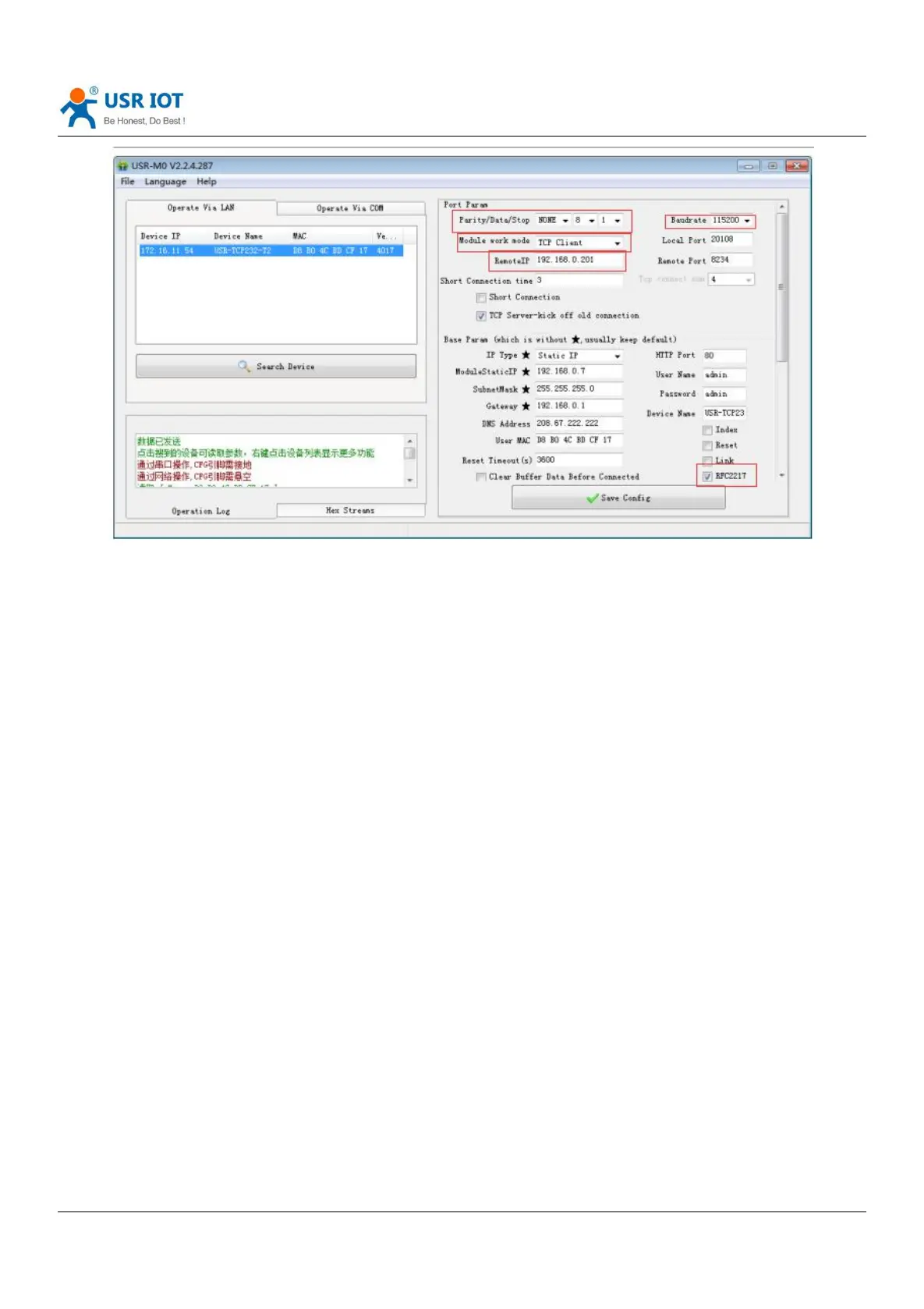

Diagram 5.1.1-4 Serial parameters
 Serial baud rate: the baud rate for serial port communication, both standard and customize baud rate are ok.
 Parity/data/stop: serial port parameters
 Work mode: TCP Server /TCP Client/Httpd Client/UDP Client/UDP Server
 Remote IP: when T2 works in TCP client, UDP client and HTTPD client mode as a client, the IP or domain name of the
server that it connected.

Similar RFC2217: ussed if need to change the serial port in transport. Use with V-COM or you can reference the
software manual.
4. Check data
