USR IOT USR-TCP232-T2 User Manual

USR-TCP232-T2 user manual www.usriot.com
Jinan USR IOT Technology Limited www.usriot.com
48

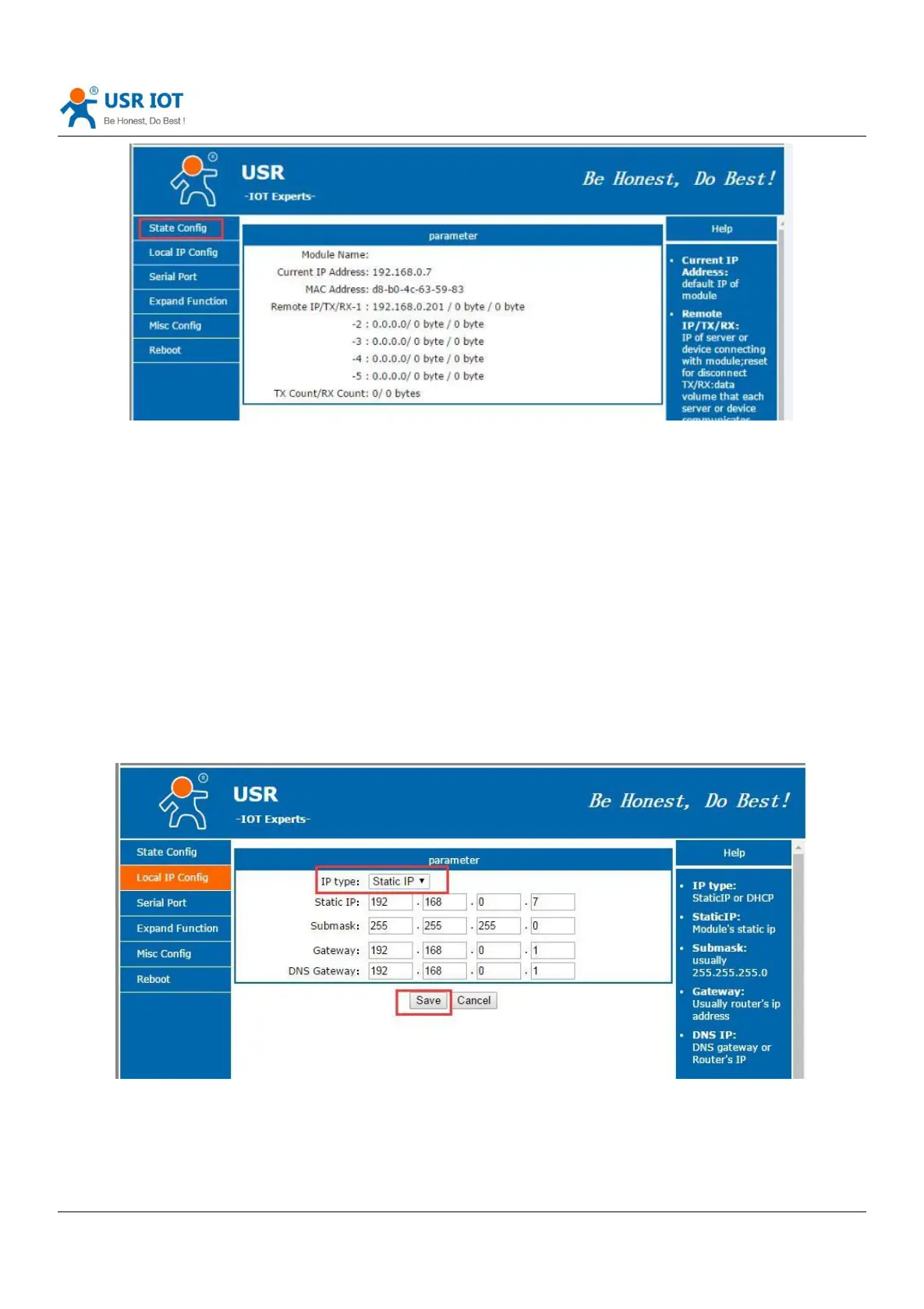

Diagram 5.2.1-1 State Configuration
This page show some information of the T2
 Module name: default is USR-TCP232-T2
 Current IP address: default is 192.168.0.7
 MAC address: the unique in the world
 Remote IP /TX/RX: the device has connected and the data number of receive and send. TX means send and RX means
received
 TX count/RX count: Total number of connection send or received.
5.2.2. Local IP
Modify the parameters and save, then modify the parameter in next page. If the parameter need not to modify, click
the restore and work.
Diagram 5.2.2-1 Local IP
