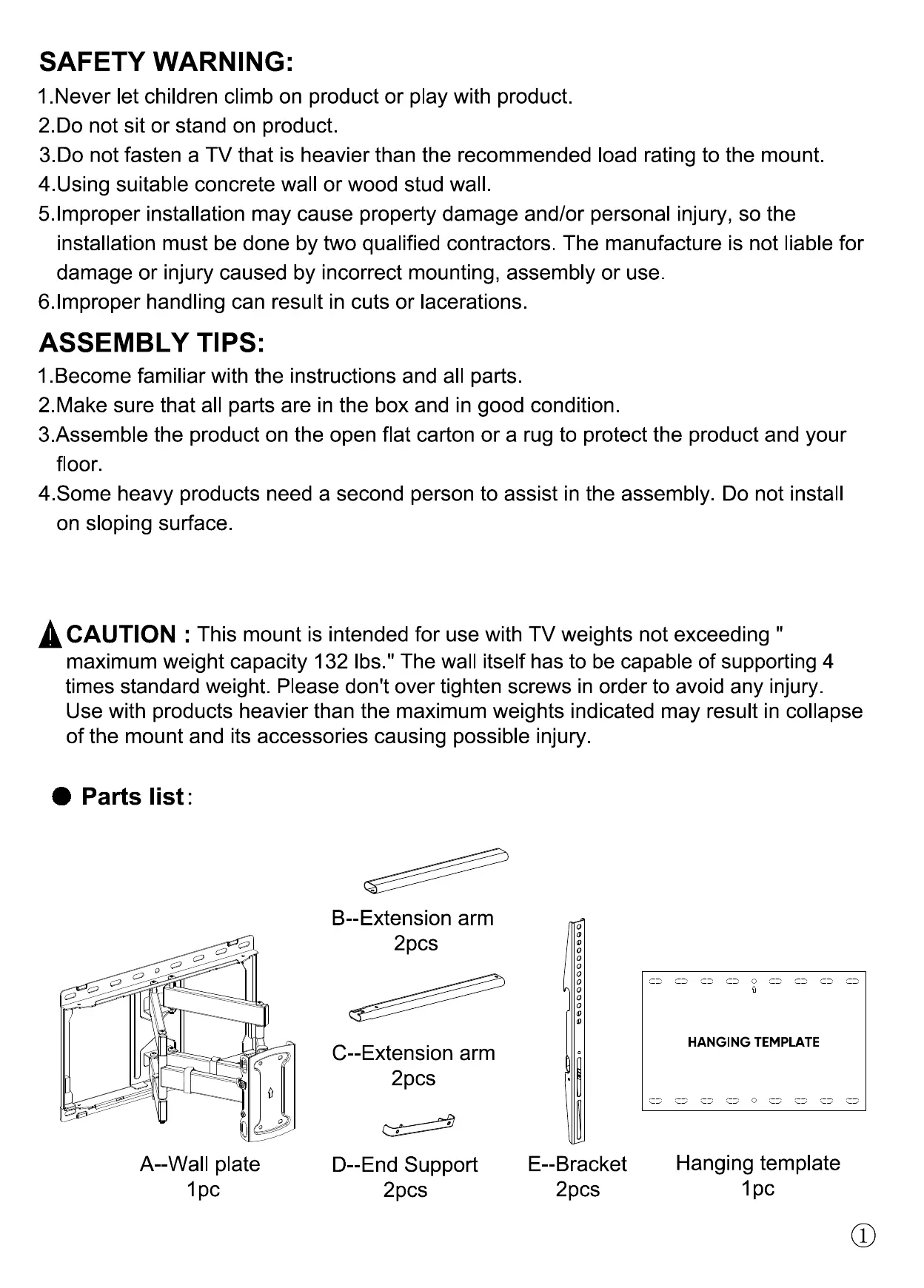

SAFETY WARNING:
1.Never let children climb on product or play with product.
2.Do not sit or stand on product.
3.Do not fasten a TV that is heavier than the recommended load rating to the mount.
4.Using suitable concrete wall or wood stud wall.
5.Improper installation may cause property damage and/or personal injury, so the
installation must be done by two qualified contractors. The manufacture is not liable for
damage or injury caused by incorrect mounting, assembly or use.
6.Improper handling can result in cuts or lacerations.
CAUTION :
This mount is intended for use with TV weights not exceeding "
maximum weight capacity 132 lbs."
The wall itself has to be capable of supporting 4
times standard weight. Please don't over tighten screws in order to avoid any injury.
Use with products heavier than the maximum weights indicated may result in collapse
of the mount and its accessories causing possible injury.
①
Parts list:
ASSEMBLY TIPS:
1.Become familiar with the instructions and all parts.
2.Make sure that all parts are in the box and in good condition.
3.Assemble the product on the open flat carton or a rug to protect the product and your
floor.
4.Some heavy products need a second person to assist in the assembly. Do not install
on sloping surface.
A--Wall plate
1pc
B--Extension arm
2pcs
C--Extension arm
2pcs
D--End Support
2pcs
E--Bracket
2pcs
Hanging template
1pc
HANGING TEMPLATE
