⑤
Figure 8

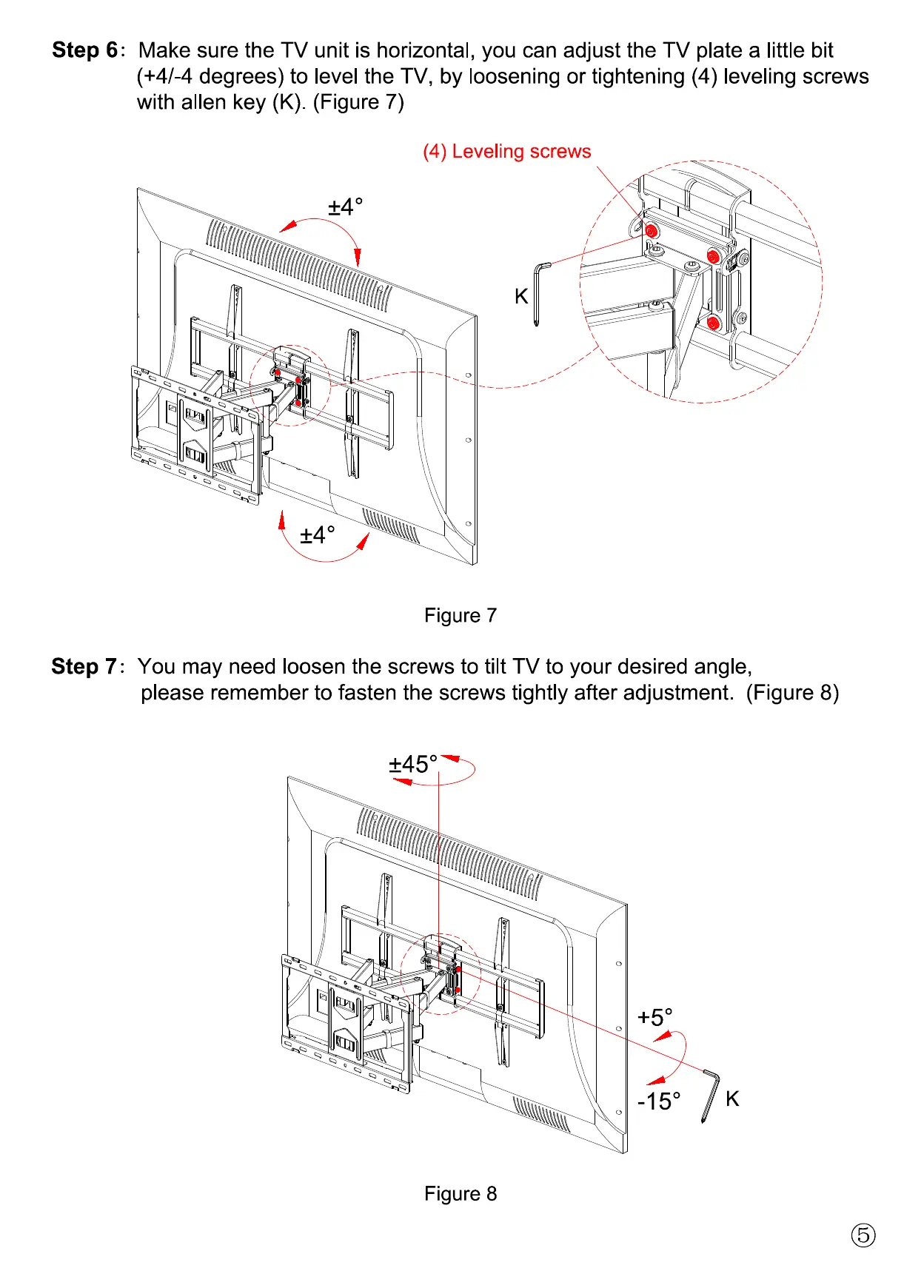

Step 6
Make sure the TV unit is horizontal, you can adjust the TV plate a little bit
(+4/-4 degrees) to level the TV, by loosening or tightening (4) leveling screws
with allen key (K).
(Figure 7)
Step 7
You may need loosen the screws to tilt TV to your desired angle,
please remember to fasten the screws tightly after adjustment. (Figure 8)
(4) Leveling screws
K
±45°
-15°
+5
°
±4°
Figure 7
K
±4°
To Next Page
