USX-MOUNT WML016-01 - Step 2: Assemble Extension Arms; Step 3: Attach End Support

③

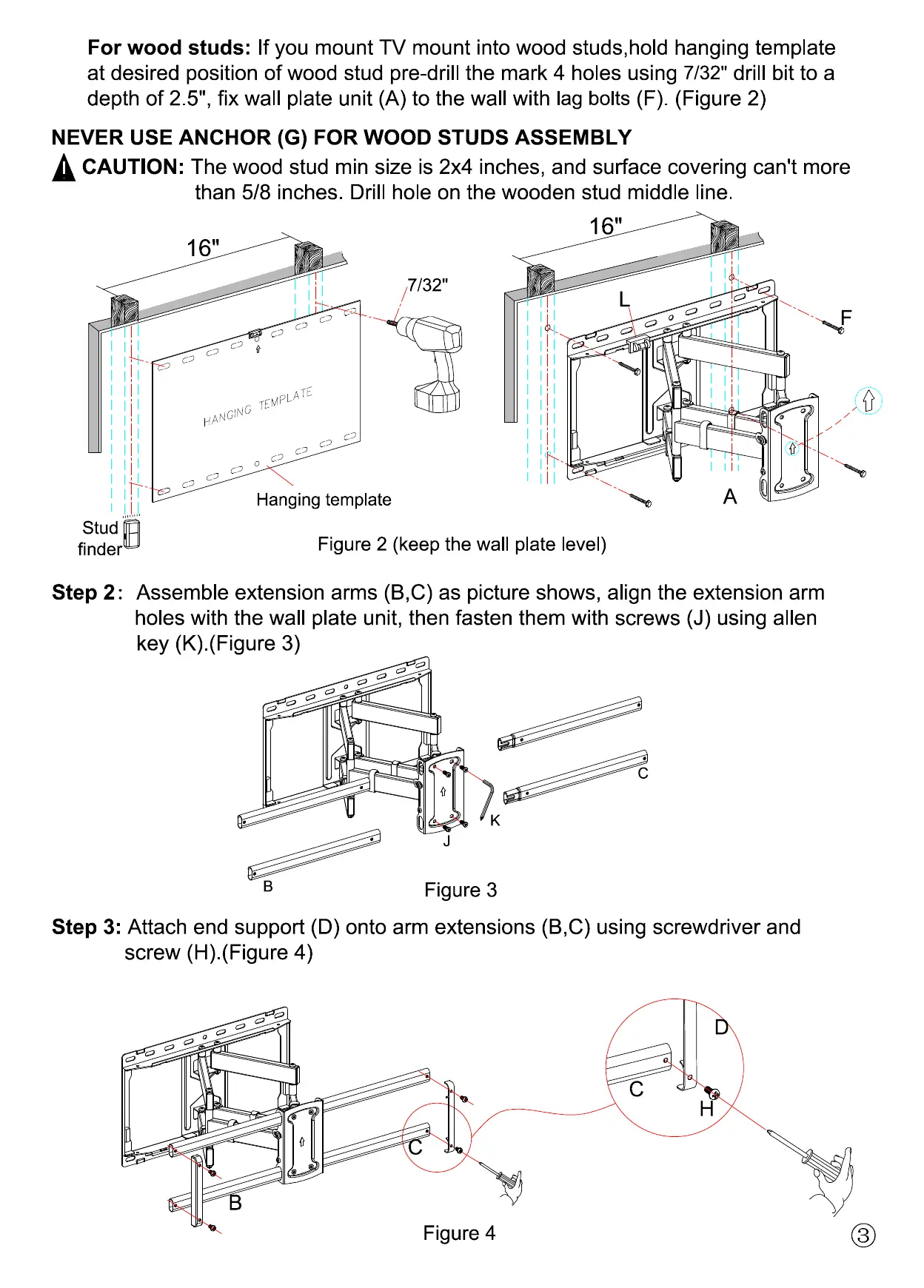

For wood studs: If you mount TV mount into wood studs,hold
hangin
g template
at desired position of wood stud pre-drill the mark 4 holes using
7/32"
drill bit to a
depth of 2.5", fix wall plate unit (A) to the wall with
lag bolts
(F). (Figure 2)
CAUTION: The wood stud min size is 2x4 inches, and surface covering can't more
than 5/8 inches. Drill hole on the wooden stud middle line.
Figure 2 (keep the wall plate level)
F
A
Step 2Assemble extension arms (B,C) as picture shows, align the extension arm
holes with the wall plate unit, then fasten them with
screws
(J) using allen
key (K).(Figure 3)
Step 3: Attach end support (D) onto arm extensions (B,C) using screwdriver and
screw (H).(Figure 4)
Figure 3
Figure 4
H
D
C
C
B
J
K
NEVER USE ANCHOR (G) FOR WOOD STUDS ASSEMBLY
L
16"
C
B
Stud
finder
16"
Hanging template
7/32"
