USX-MOUNT WML016-01 - Step 1: Install Wall Plate on the Wall

②

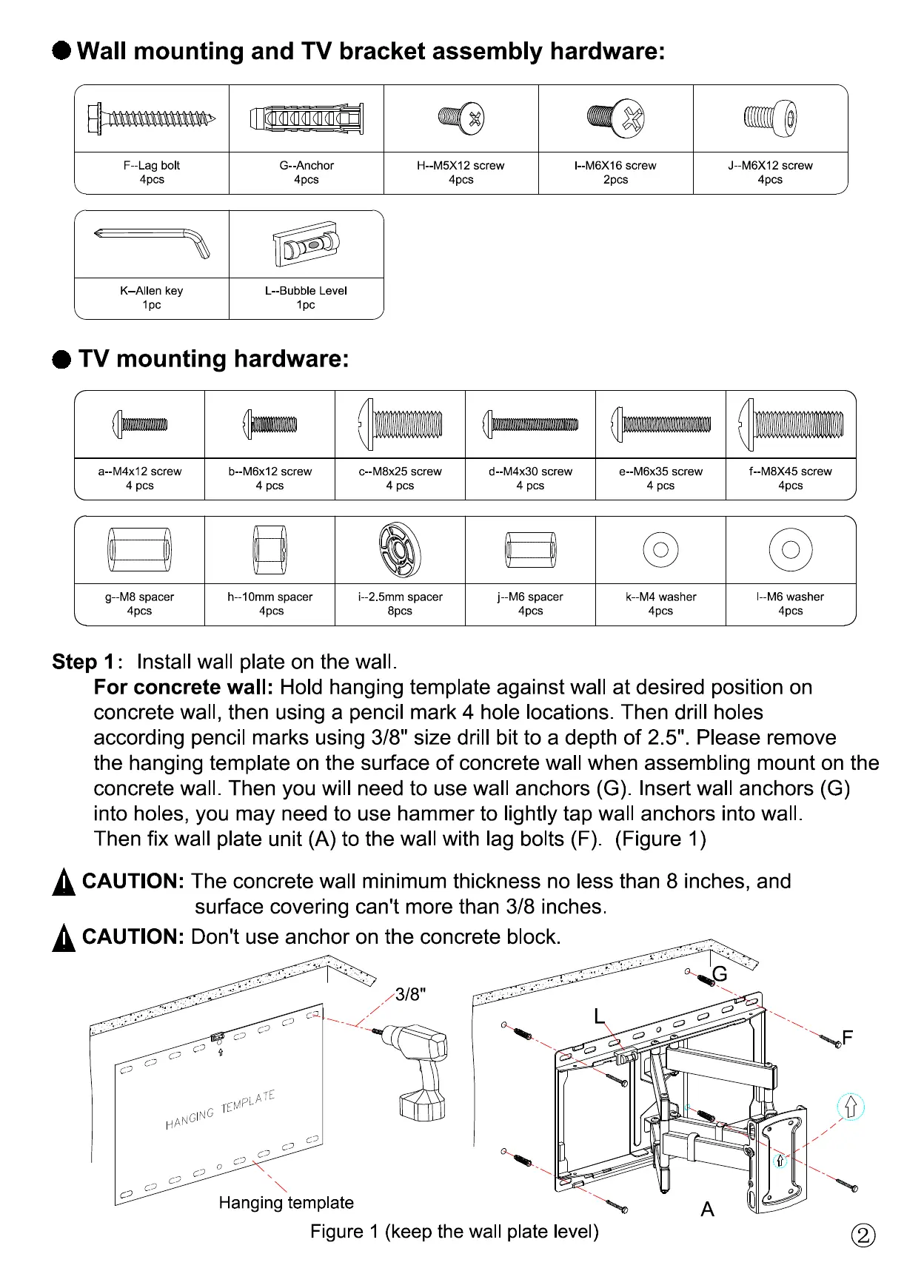

Step 1Install wall plate on the wall.
For concrete wall: Hold hanging template against wall at desired position on
concrete wall, then using a pencil mark 4 hole locations. Then drill holes
according pencil marks using 3/8" size drill bit to a depth of 2.5". Please remove
the
hanging template
on the surface of concrete wall when assembling mount on the
concrete wall. Then you will need to use wall anchors (G). Insert wall anchors (G)
into holes, you may need to use hammer to lightly tap wall anchors into wall.
Then fix wall plate
unit
(
A
) to the wall with lag bolts (F). (Figure 1)
CAUTION: The concrete wall minimum thickness no less than 8 inches, and
surface covering can't more than 3/8 inches.
CAUTION: Don't use anchor on the concrete block.
F
G
Figure 1 (keep the wall plate level)
A
L
3/8"
Hanging template
TV mounting hardware:
Wall mounting and TV bracket assembly hardware:
K--Allen key
1pc
H--M5X12 screw
4pcs
I--M6X16 screw
2pcs
J--M6X12 screw
4pcs
L--Bubble Level
1pc
F--Lag bolt
4pcs
G--Anchor
4pcs
a--M4x12 screw
4 pcs
d--M4x30 screw
4 pcs
b--M6x12 screw
4 pcs
e--M6x35 screw
4 pcs
c--M8x25 screw
4 pcs
f--M8X45 screw
4pcs
k--M4 washer
4pcs
l--M6 washer
4pcs
h--10mm spacer
4pcs
i--2.5mm spacer
8pcs
g--M8 spacer
4pcs
j--M6 spacer
4pcs
