Utax P-4030 MFP

2NM/2NX/2NY/2NZ/2P0/2P6-1
2-2-41
23. Release the hook A by sliding the left
upper cover upward.
24. Release the hook B and hook C and
then remove the left middle cover and
the waste toner box cover.

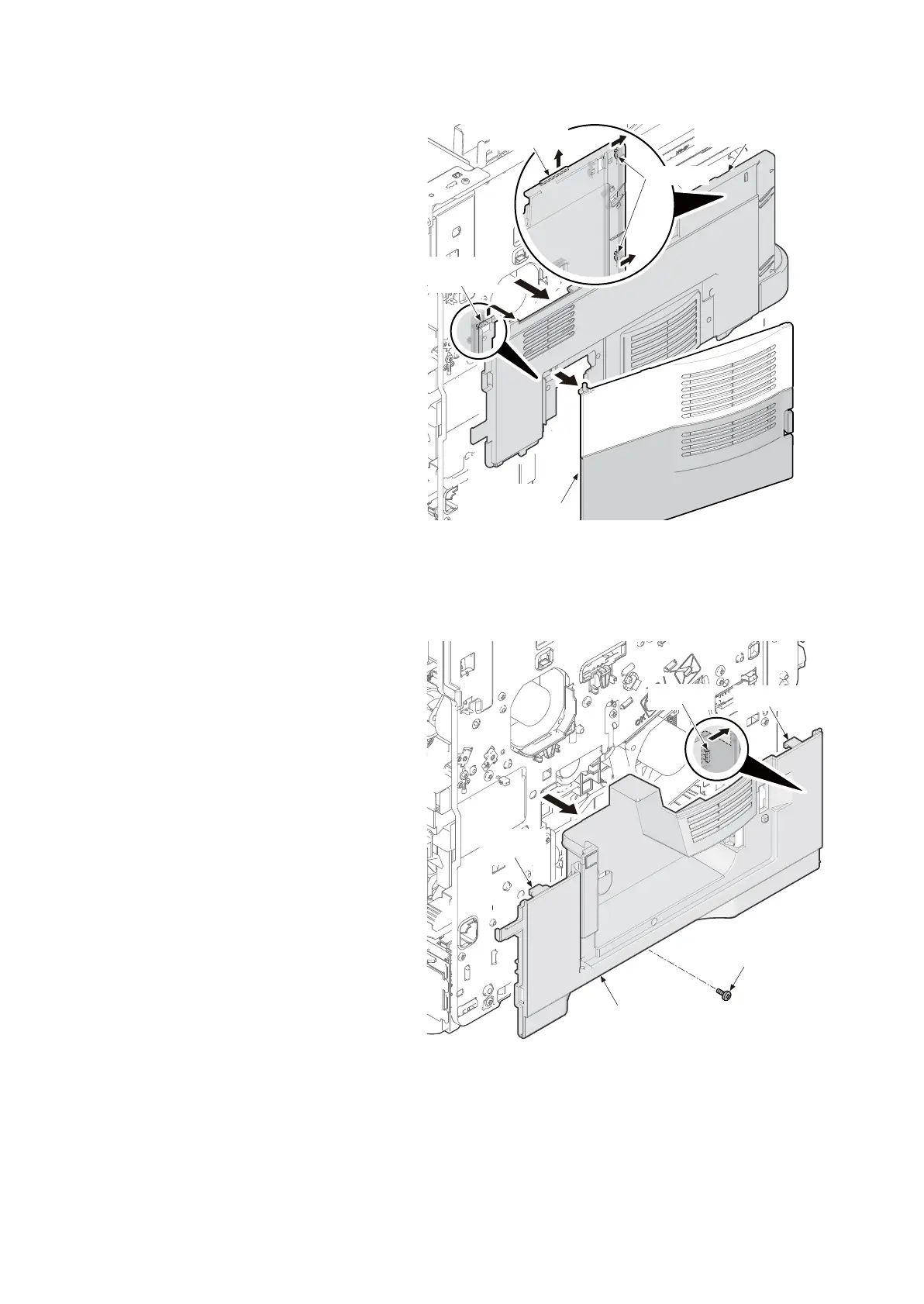

Figure 2-2-47
25. Remove the screw.
26. Release the hook A.
27. Release two hooks B by sliding the left
lower cover upward and then remove
the left lower cover.
Figure 2-2-48
Left middle cover
Hook A
Waste toner
box cover
Hooks B
Hook C
Screw
Hook B
Hook B
Left lower cover
Hook A
