2LV/2L1/2L2/2MS/2MT
1-5-17
(2) Detaching and refitting the separation needle unit
Procedure
1. Remove the transfer roller unit.
(See page 1-5-16)
2. Release four hooks of separation nee-
dle unit by rotating and then remove the
separation needle unit upward.
3. Check or replace the separation needle
unit and refit all the removed parts.
Caution: Check certainly being fixed at the
time of attachment.

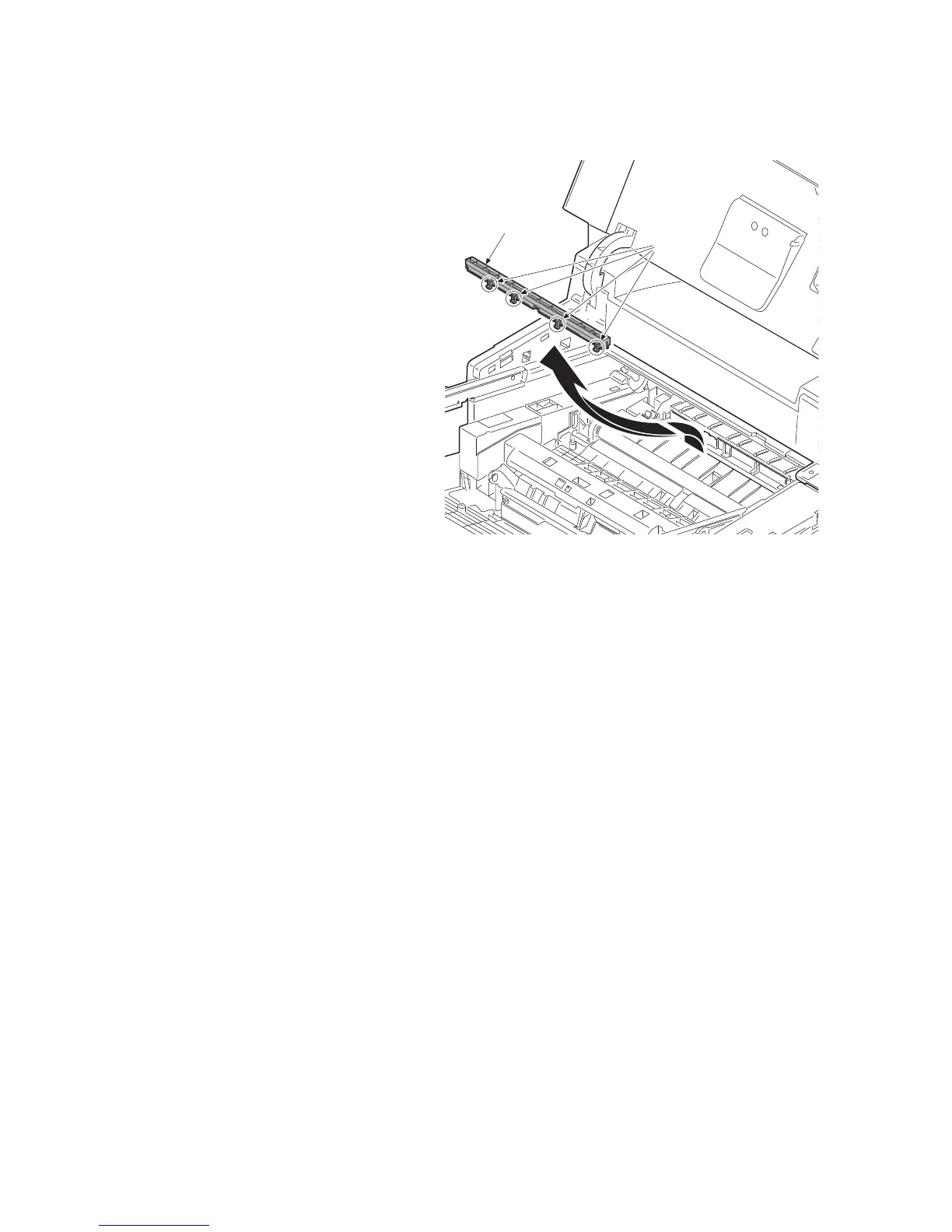

Figure 1-5-27
Separation
needle unit
Hooks
