(4) Direction of installing the principal fan motors
When detaching or refitting the fan motor, be careful of the airflow direction (intake or exhaust).

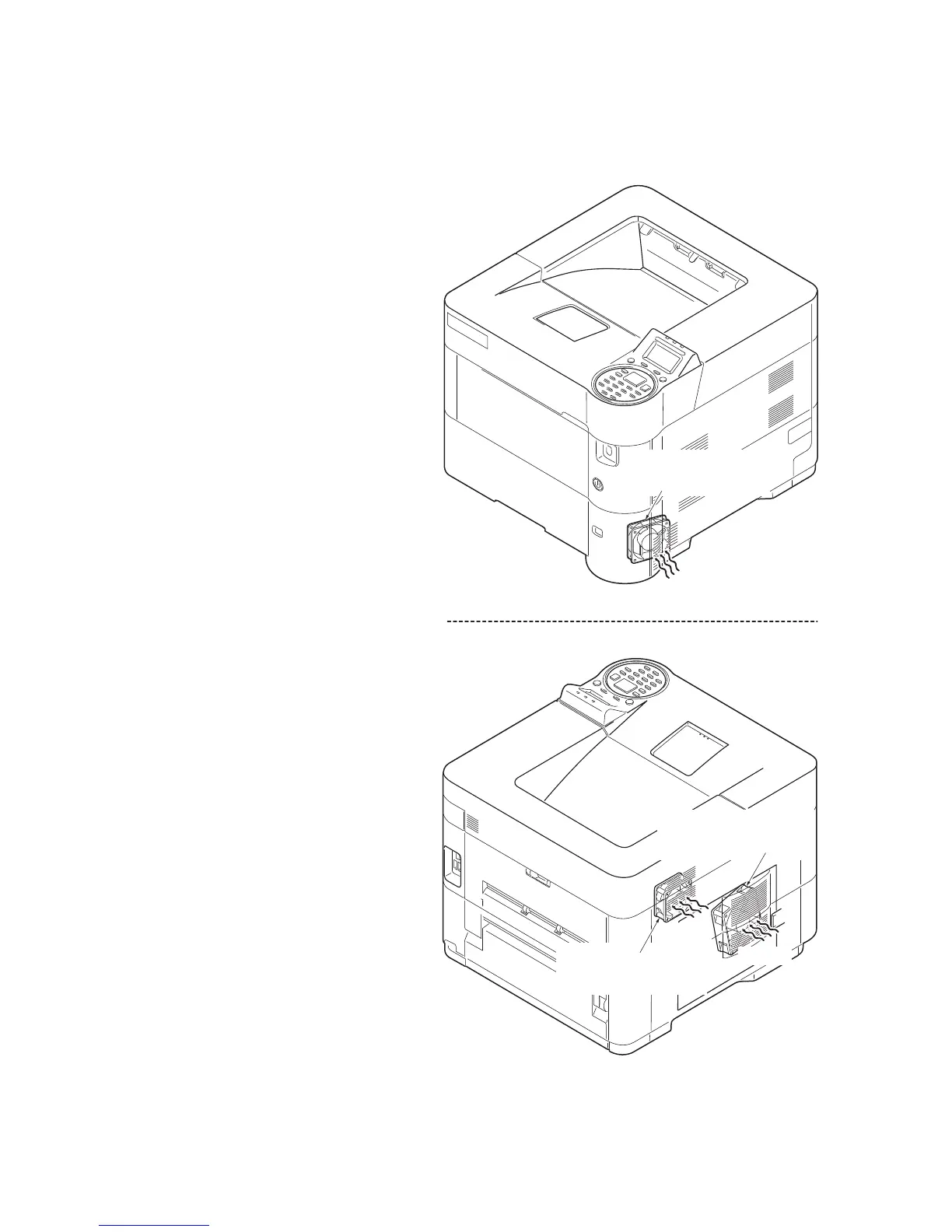

Figure 1-5-52
Developer fan motor
(Rating label: inside)
Intake
Intake
LSU fan motor
(Rating label: inside)
Power source fan motor
(Rating label: inside)
Intake
