Installing the 3-TAMP tamper switch
The 3-TAMP tamper switch is used to detect an open enclosure door for security
purposes.
Note: The 3-TAMP tamper switch must be used for security applications and
connected to a SIGA-SEC2 module mounted in the enclosure.
To install the tamper switch:
1. Install an EOL resistor on the 3-TAMP. Refer to the
3-TAMP Installation Sheet (P/N 387422) for more information.
2. Position the tamper switch over the mounting standoffs. See the diagram
below.
3. Use the two locking nuts provided to secure the tamper switch. See the
diagram below.
4. Connect all wiring to the tamper switch. Refer to the
3-TAMP Installation Sheet (P/N 387422) for details on wiring the tamper
switch.

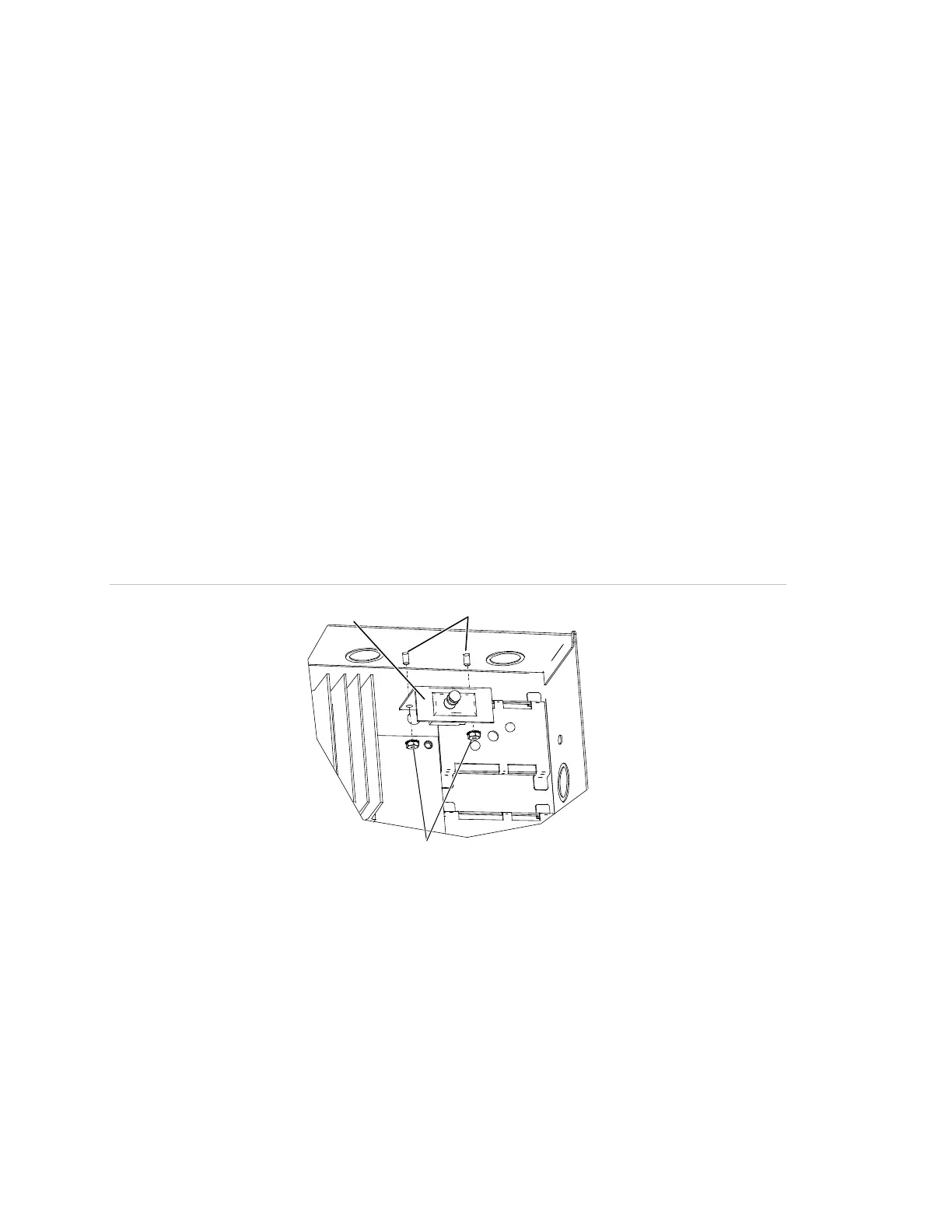

Figure 21: Tamper switch installation
(1)
(2)
(
3
)
(1) 3-TAMP tamper switch
(2) Mounting standoffs
(3) Locking nuts
