7
1-1/4 in. PVC
Elbow
5
Approx.
12 in.
Well Seal
4
Pipe clamp
25 ft. maximum
Water level
5 ft. minimum
3

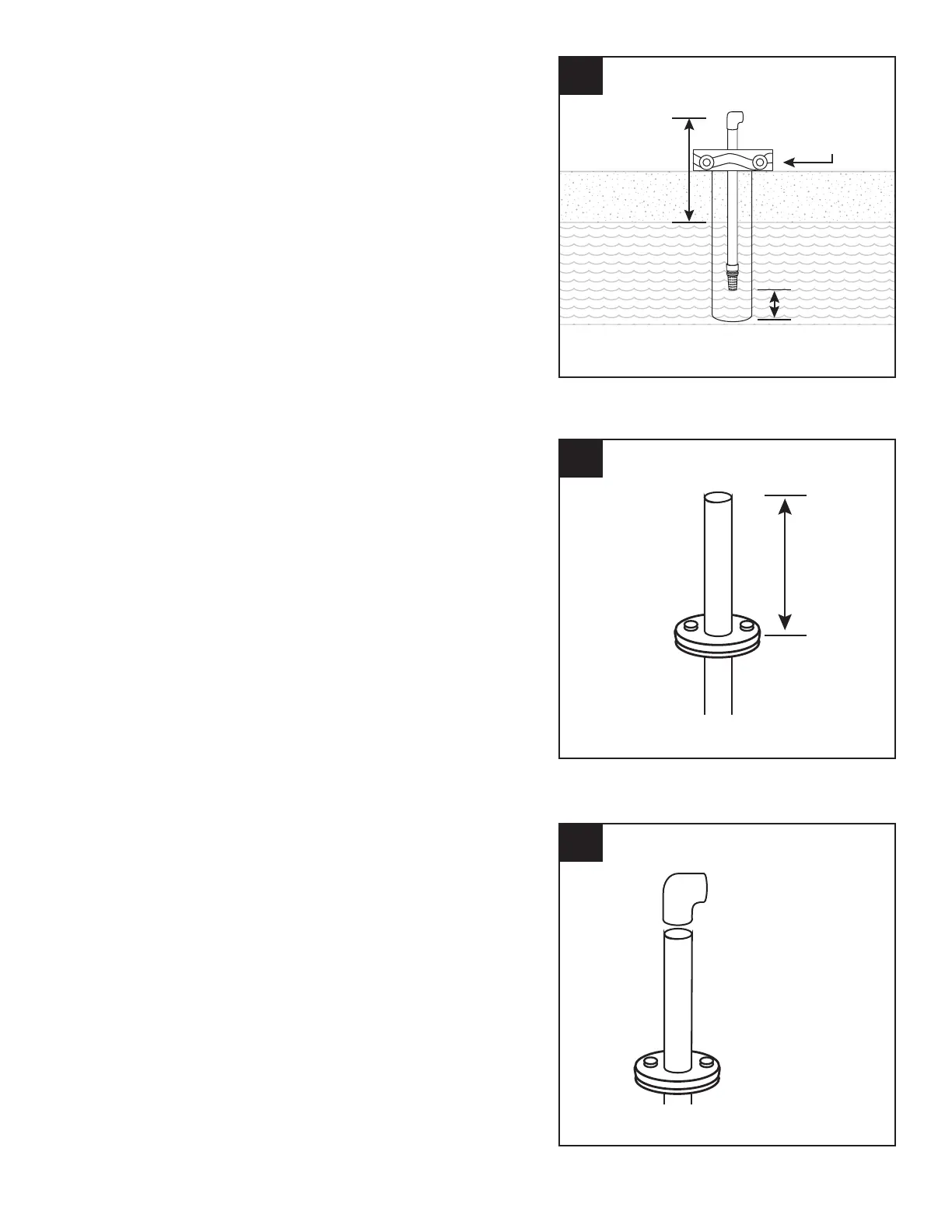

3. Before sliding the pipe assembly into the
well, rmly clamp the assembly with a pipe
clamp (not included) to prevent the assembly
from sliding down into the well.
4. Remove the pipe clamp and slide a well seal
(not included) over the PVC pipe and onto
the well casing. The PVC pipe should extend
approximately 12 in. above the top of the well
seal, depending on the height of the pump.
NOTE: Do not let the assembly slide down into the
well. Tighten the well seal until the rubber gaskets
are tight against the well casing and the PVC pipe.
5. Using a 2-step PVC system, attach a 1-1/4 in.
PVC elbow (not included) onto the rigid PVC
pipe extending from the well seal.
To Next Page
