EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS

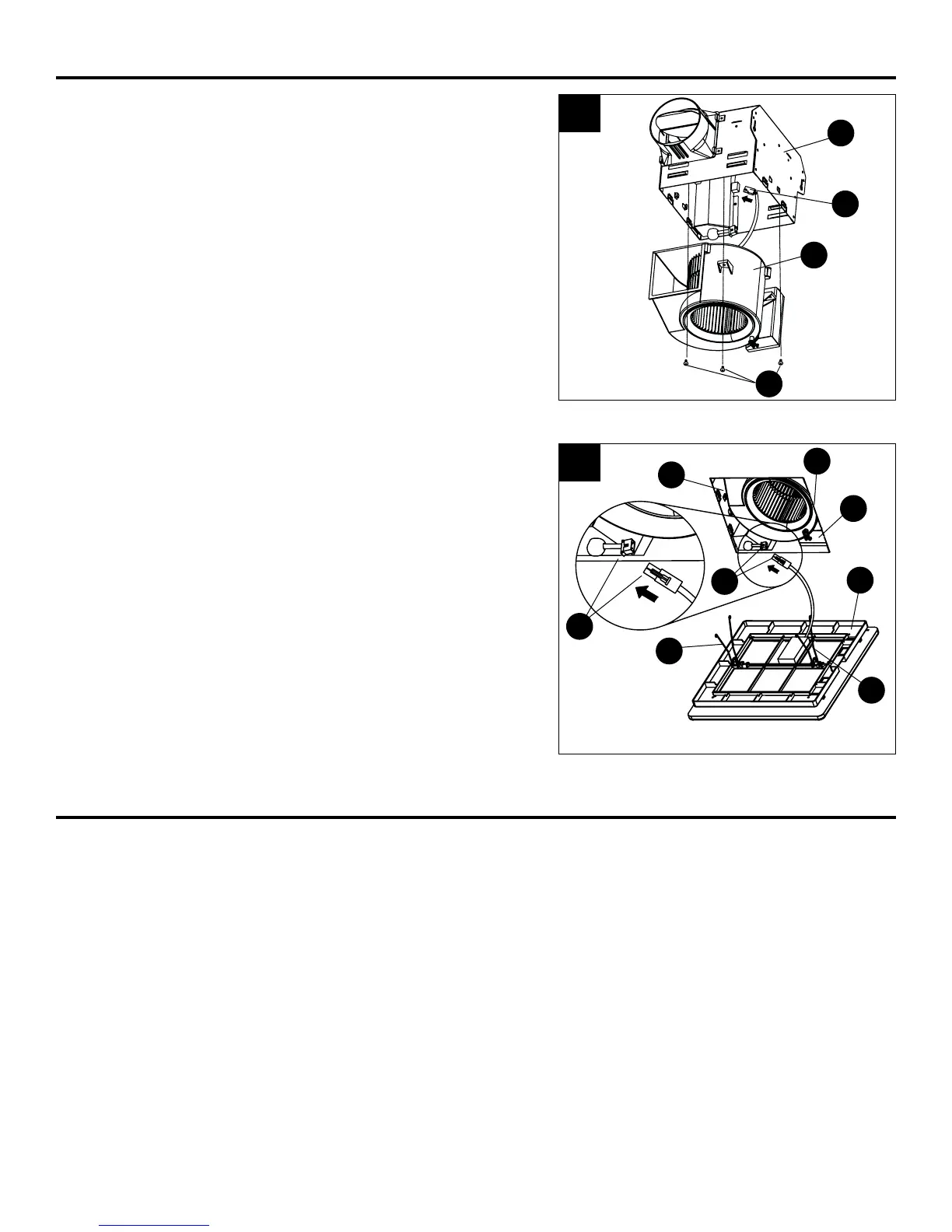

9. Plug back in the power unit (9.1). Replace motor
assembly (9.2) back into fan housing (A) using the
three screws (9.3) removed in step 3.
10.
For the LED light connection, plug in the connector
(10.1) from the grille (B) into the fan housing (A) as
shown.
Pinch the mounting springs (10.2) on the grille (B)
and insert them into the narrow rectangular slots
(10.3) inside the fan housing (A). Push the grille (B)
up toward the ceiling.
10
A
B
9
9.3
9.2
A
9.1
10.3
10.1
10.1
10.2
10.2
10.3
CARE AND MAINTENANCE
WARNING: Disconnect power supply before servicing. See SAFETY INFORMATION before proceeding.
Routine maintenance should be done at least once a year.
• Wash grille with mild soap and water, dry with a cloth.
• Remove excess dirt and dust from the fan housing with a vacuum cleaner.
• Do not use solvents, thinner or harsh chemicals for cleaning the fan.
• Do not allow water to enter the motor.
• Do not immerse resin parts in water over 140º F.
