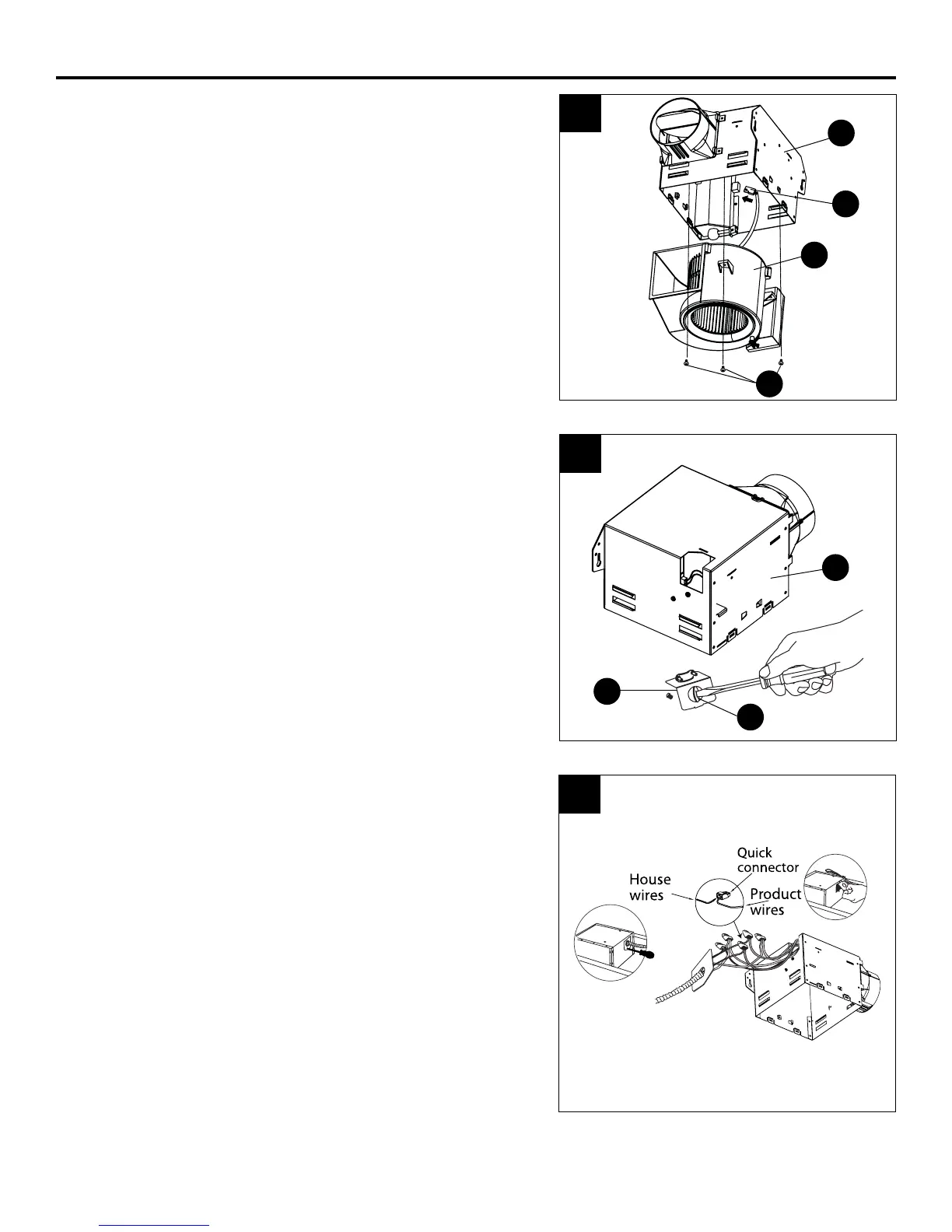

EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS
3. Remove the three screws (3.1) that hold the motor
assembly (3.2) in place. Remove the fan motor
assembly (3.2) from the fan housing (A). Unplug the
fan power unit (3.3).
4. Remove the wiring box cover (4.1) from the fan
housing (A). Remove the wiring knockout (4.2) from
the wiring box cover (4.1) with a athead screwdriver
(not included).
5. Pull the house wires through the wire box cover hole.
Using a quick connector, secure 120 V AC house wiring
from the wall switch to the fan as shown in the wiring
diagram on page 5. 14 AWG is the smallest conductor
that should be used for branch-circuit wiring.
Carefully push the connected wires back into the wiring
box housing. Reattach the wiring box cover.
CAUTION: If the electrical wires do not match the
colors listed, you must determine what each house wire
represents before connecting. You may need to consult
an electrical contractor to determine safely.
4
4
3.1
3.2
A
4.1
4.2
A
3.3
5
