6

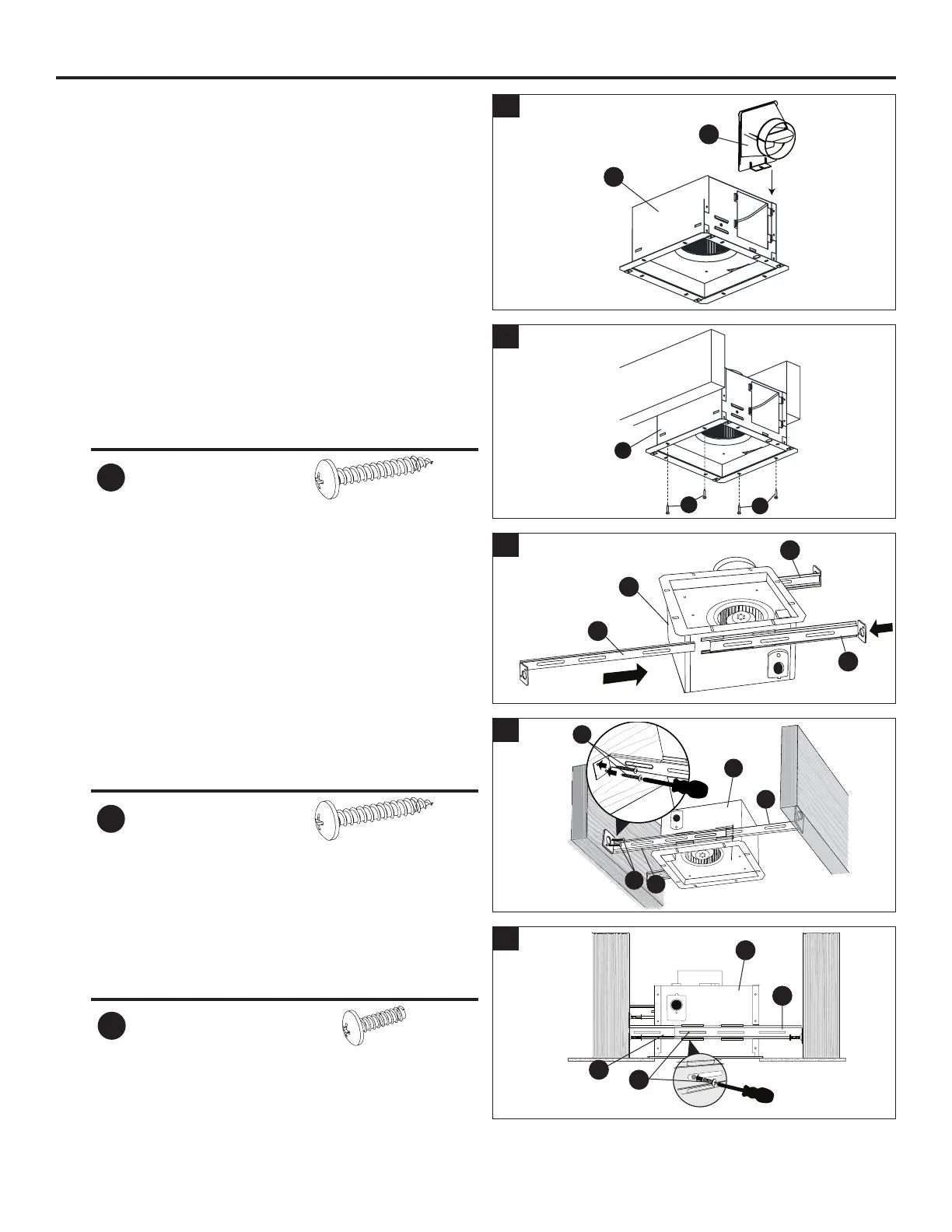

NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS
BEFORE INSTALLATION: Turn off power source. Review all
safety precautions.
1
1. Attach the duct connector (F) to the fan housing (A).
2. If spacing between joists is 12 in. apart, use 4 long wood
screws (AA) to attach the fan housing (A) to the ceiling
joists.
NOTE: Suspension brackets are not needed.
2
AA
A
Hardware Used
AA
Long wood screw
x 4
3. If spacing between joists is 16 in. - 24 in., insert
suspension bracket I (C) into the bracket cover on
the duct connector side. Then, attach suspension
bracket II (D) and suspension bracket III (E) to the
back of the fan housing (A).
3
C
E
D
A
4. Secure the fan housing (A) to joist with suspension
brackets (D, E) using long wood screws (AA).
4
AA
AA
A
D
E
Hardware Used
AA
Long wood screw
x 6
5. Secure the suspension brackets (D, E) to fan housing (A)
using short machine screw (BB).
5
BB
A
D
E
Hardware Used
BB
Short machine screw
x 1
AA
AA
A
F
To Next Page
