INSTALLATION INSTRUCTIONS

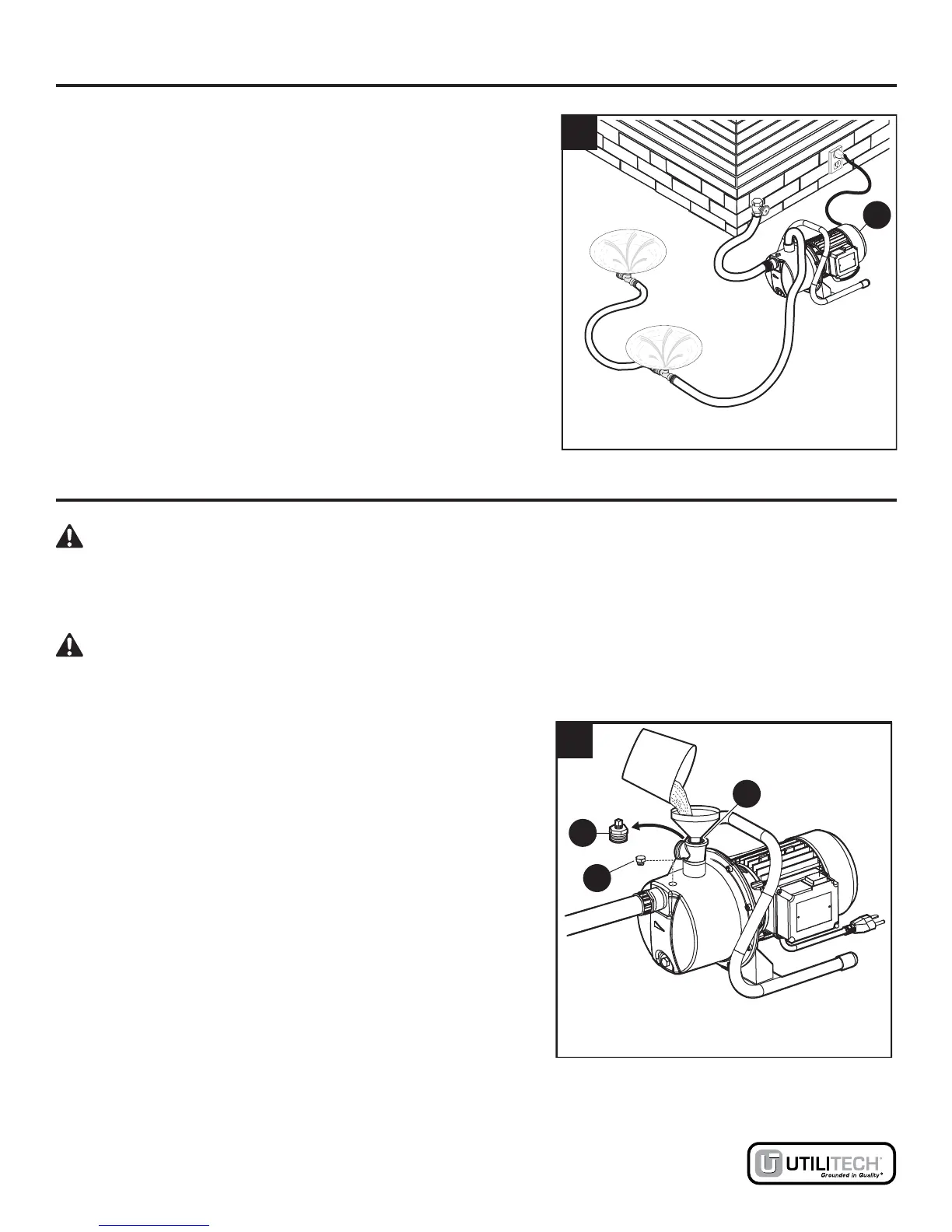

4. Connect your discharge hose to a standard lawn
sprinkler (Max. 2 sprinklers).
Note: This pump (A) is not designed to be used with
underground, pop-up sprinklers (zoned systems).
If you have this type of system, purchase a higher
capacity lawn or irrigation pump.
4
A
OPERATING INSTRUCTIONS
WARNING: Do not run the pump with the outlet pipe or hose nozzle closed. This will cause
damage to the pump, or burst the hose from excessive pressure. This could result in death or
serious injury. Use only reinforced high-pressure hoses or pipes for the outlet connection or pipes
for the inlet (suction) connection.
WARNING: Never remove the ground prong on the power cord. Never hardwire the power
cord. Cutting the cord, hardwiring, or removing the ground prong can result in death or serious
injury and will void the warranty.
1. Priming the Pump:
Note: The pump must be fi lled with water before
operation. Running the pump dry will cause
damage to the shaft seal and will void the warranty.
Note: Add thread tape on the discharge tee cap.
a. Remove the prime plug (1) and the discharge
tee cap (2). Fill water into top of discharge tee
(3) until pump overfl ows with water. Reinstall the
prime plug (1) and the discharge tee cap (2) when
fi nished priming.
Usage: You can install a 100# pressure gauge (sold
separately, Item #0064124) on top of the discharge tee
cap in order to monitor pressure.
Note: This pump is not designed to be used with under-
ground, pop-up sprinklers (zoned systems). If you
have this type of system, purchase a higher capac-
ity lawn or irrigation pump.
2
1
1
3
