UVD Robot Model B - User manual v2.1
Manual charging with cable:

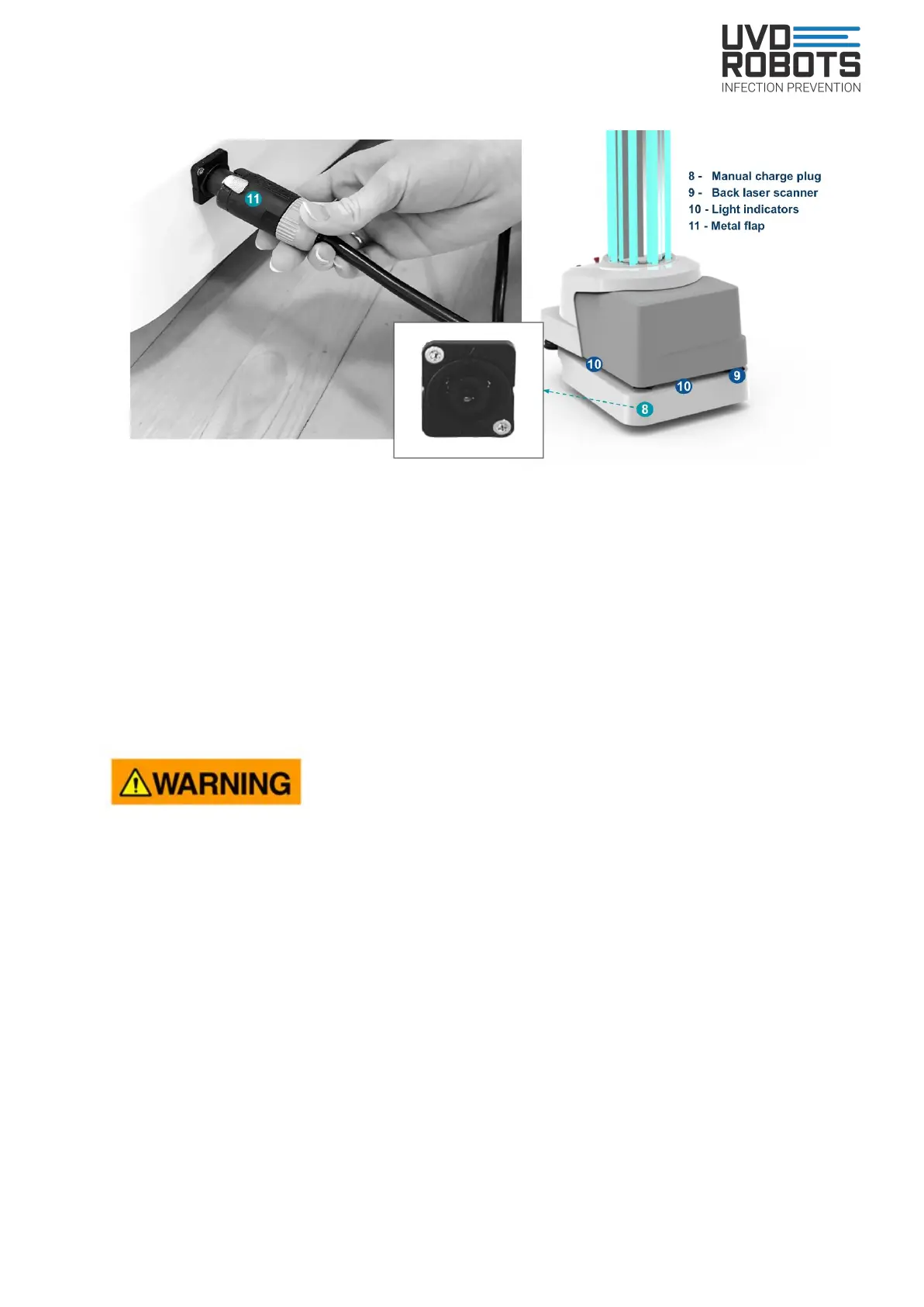

Figure 6. Charging the robot using a manual charger
Ensure the robot is off. Plug the charger (figure 6, number 11) into the socket at the left-hand
corner in the rear of the robot (figure 6, number 8) turning the connector to the right so a click
will be heard when secured. Leave charging until next use.
Once it is fully charged, pull back the metal flap (figure 6, number 11) and turn the connector
counter clockwise to unplug it.
Make sure you unplug the cable before trying to operate the robot or assigning a job to the
robot, otherwise the robot will remain in emergency stop mode.
Charger warning!
₋ Always use the original charger. The use of any other chargers may damage or
destroy the product and could be dangerous. Never use a charger that is damaged.
The use of other chargers will invalidate any warranty.
₋ When you disconnect the power cord, grasp and pull the plug, not the cord.
₋ Do not attempt to disassemble the charger as it may expose you to dangerous electric
shock. Incorrect reassembly can cause electric shock or fire when the product is
subsequently used.
₋ Avoid charging your product in extremely high or low temperatures and do not use the
charger outdoors or in damp areas.
Electrical warning!
- The charger must be connected to the power mains and grounded in compliance with
the effective standards and regulations.
- Do not touch the power cord or any other connected cables with wet hands.
- In case of charger damage refer servicing to your local distributor.
