UVD Robot Model B - User manual v2.1
Turn off the robot: Press the On / Off (blue button) hold it for 1 or 2 seconds and release it
again.
Note: if you need to restart the robot, do not turn it on again until it is completely off.
7.2. Charging the robot
UVD Robot Model B can be charged either manually or in the docking station. It is
recommended to turn off the robot while manual charging to decrease the charging time.
Automatic charging in the docking station:
Make sure the docking station is fixed to the wall and cannot move (figure 5) and keep away
objects, at least 50 centimeters on each side.

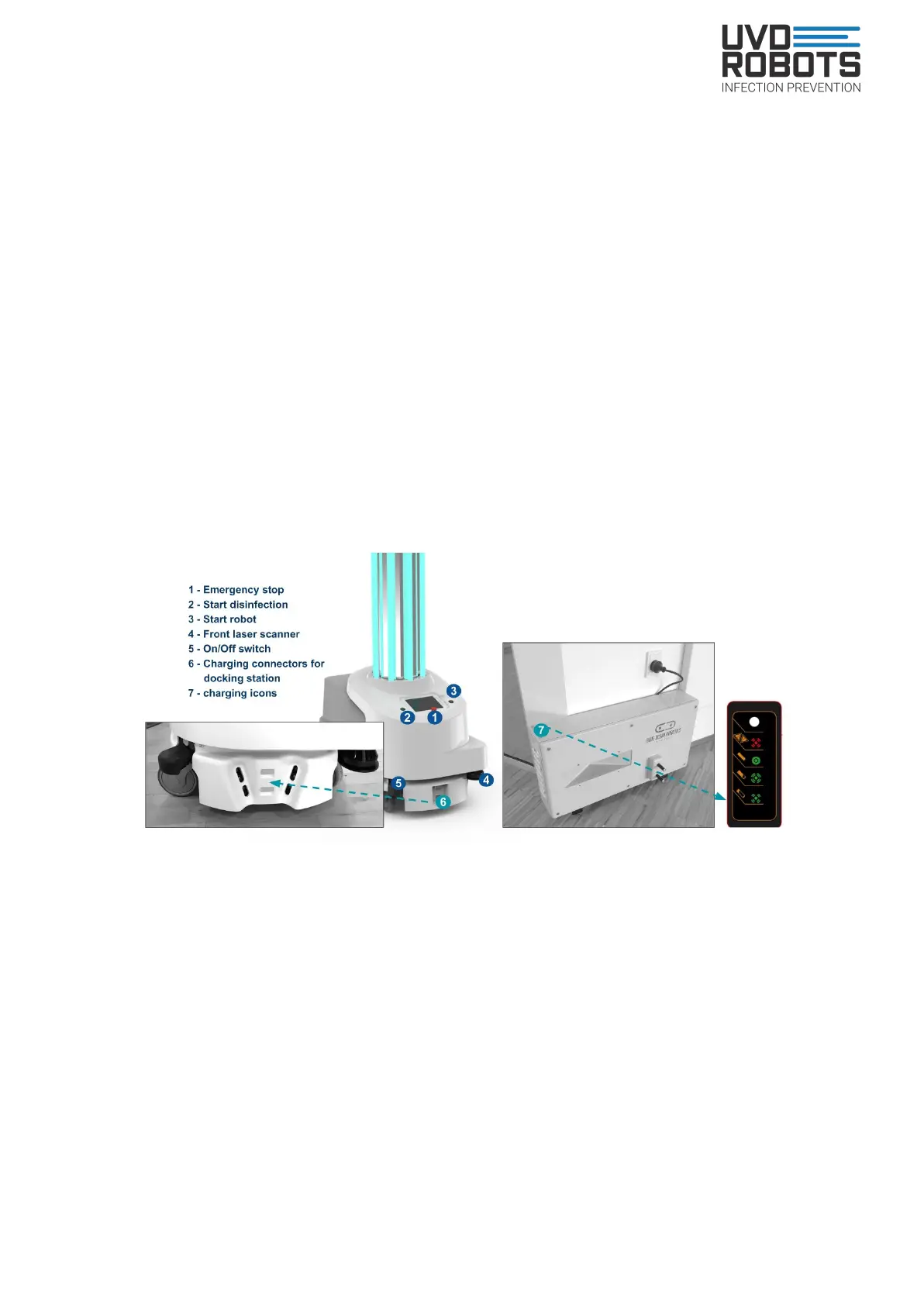

Figure 4. Charging connectors for docking station Figure 5. Docking station and charging status icons
After finishing a mission the robot will drive autonomously and plug itself into the docking
station by the connectors on the front of the robot (figure 4, number 6) if a docking station has
been previously assigned.
Otherwise, drive the robot to a nearby charging area where you can use the manual charger
to charge the robot as it is explained in the next section.
14
