UVD Robot Model B - User manual v2.1

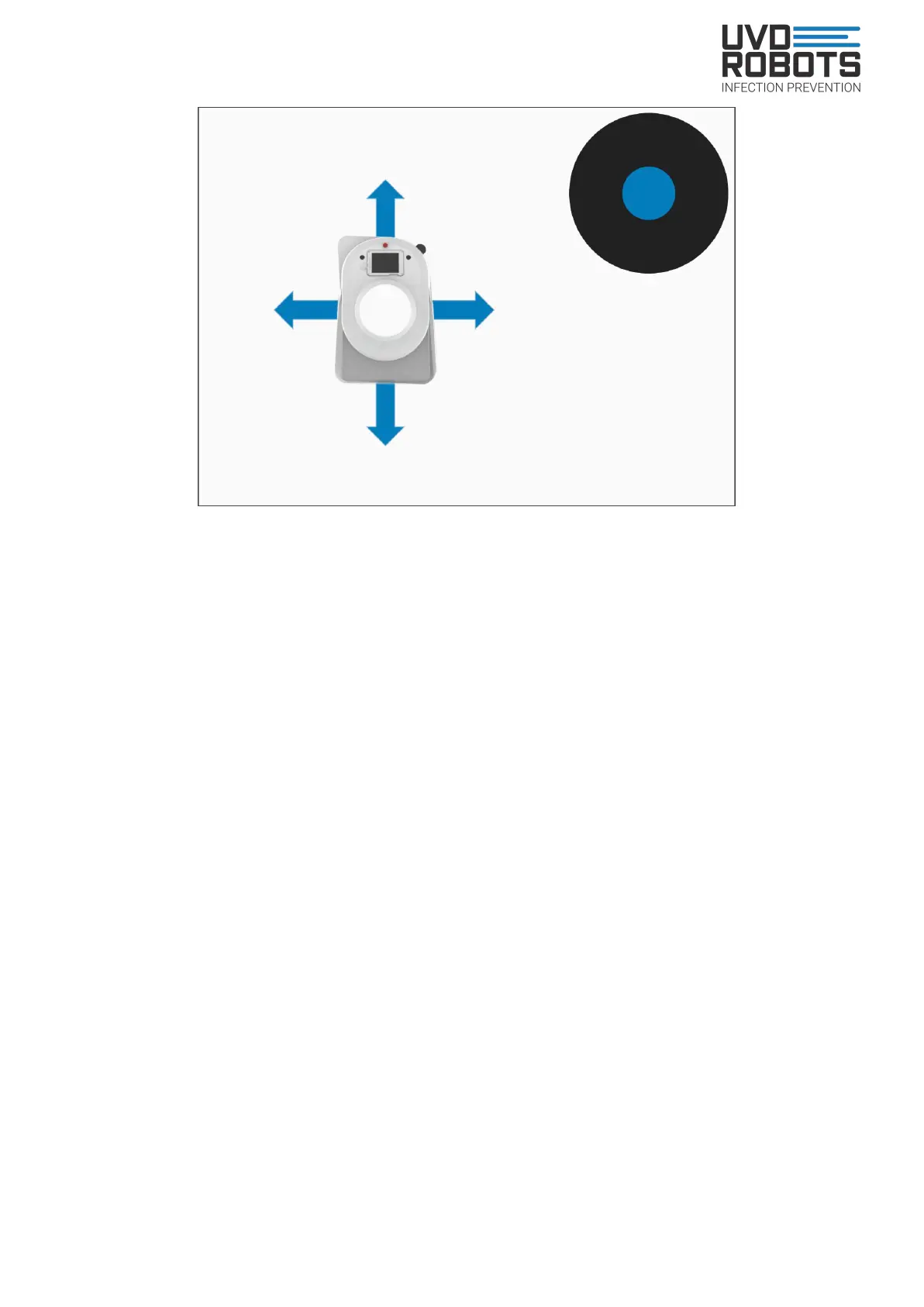

Figure 16. Joystick function and robot movements
The axis and the orientation of the joystick (up, down, left and right) are specified on the left
side of the screenshot (see figure 16) represented by an image of the robot and the
corresponding arrows. Place your finger on the blue circle and drag it slowly towards a desired
direction, the robot will start moving according to the reference axis. If you release the joystick
the robot will stop moving.
To carry out a manual disinfection drive the robot, follow the subsequent steps:
1) Drive the robot inside the desired room into the spot you want to start the disinfection
2) Select in the tablet the timer icon and input the disinfection time taking into account
that the lamps need around 3 minutes to warm up
3) Enter your operator ID
NOTE: Are more tablets required for additional doors, then the UVD app shall be
opened on these now, AFTER giving the job.
4) Complete the security checklist and the next steps as it was explained in section 7.4
5) Press the blinking button on the robot
6) Leave the room and close the door
7) Place the tablet on the suction cup on the door first and then, press "Start
disinfection" otherwise you will experience disinfection interrupted all the time
8) Once the disinfection is completed, press “OK”
NOTE: If extra tablets were used, Close the UVD app on the extra tablets now. Make
sure they have connection to the robot, when closing the UVD App
24
