Removal of the paneling (base housing)
Removal of the side panel at the foot end
Removal of the side panel at the head end

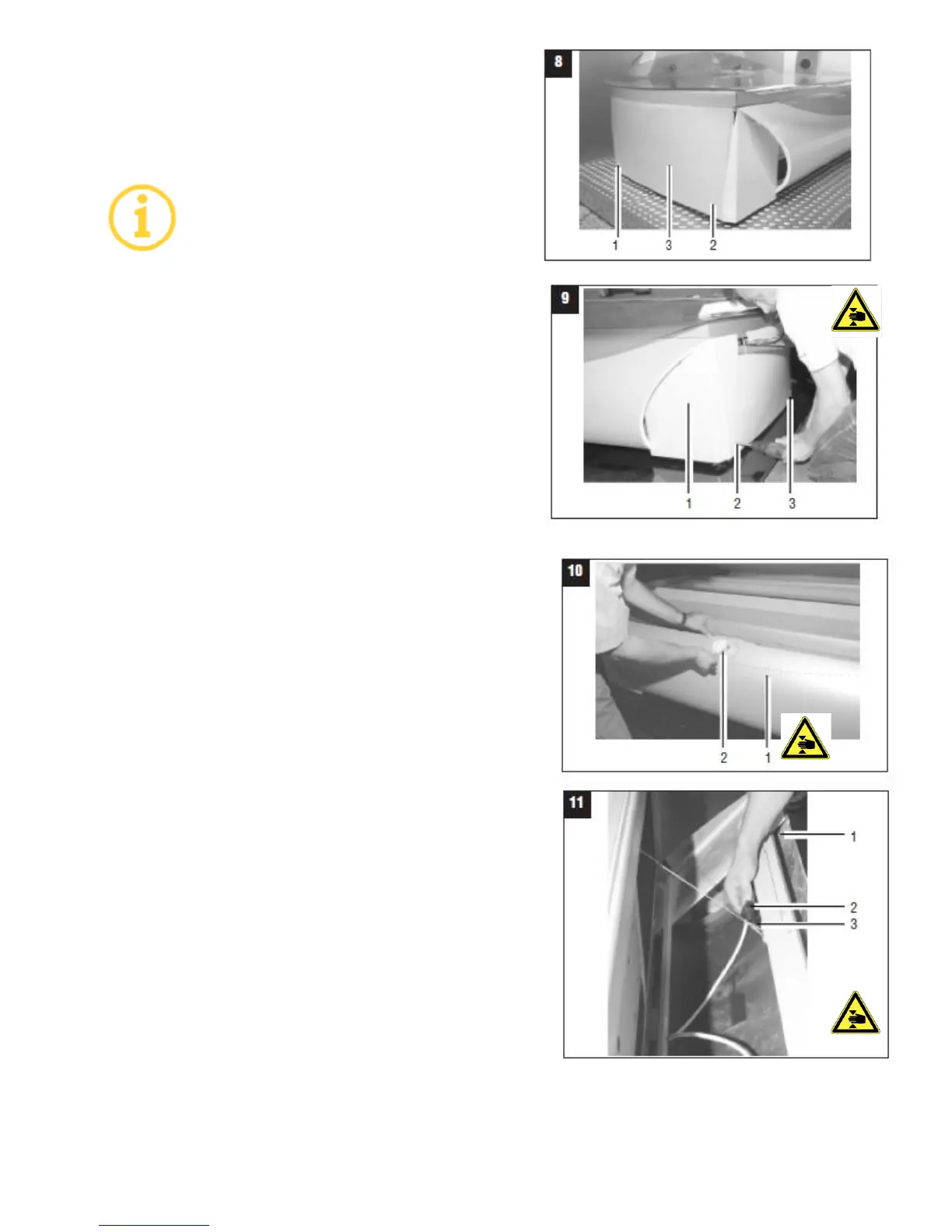

• Undo screws (9/2) and (9/3) on the bottom
• Remove the side panel at the head end (9/1)
Removal of the front apron
• Unlock the front apron (10/1) using an Allen key (10/2)
• Disconnect FLOORLIGHT plug X21 (11/2)
• Unhook the arrester cable (11/3) from its spring hook
and hold the front apron (11/1) firmly
• Two people are needed to take the front apron out of
the bottom mountings and place it on the side without
scratching the plastic components
