45
Removal of the mounting plates Prerequisite:
Paneling components of the base frame (side
components at the foot end, head end, front apron)
are removed.
All the mounting plates are heavy and
must be taken out and transported by two
people

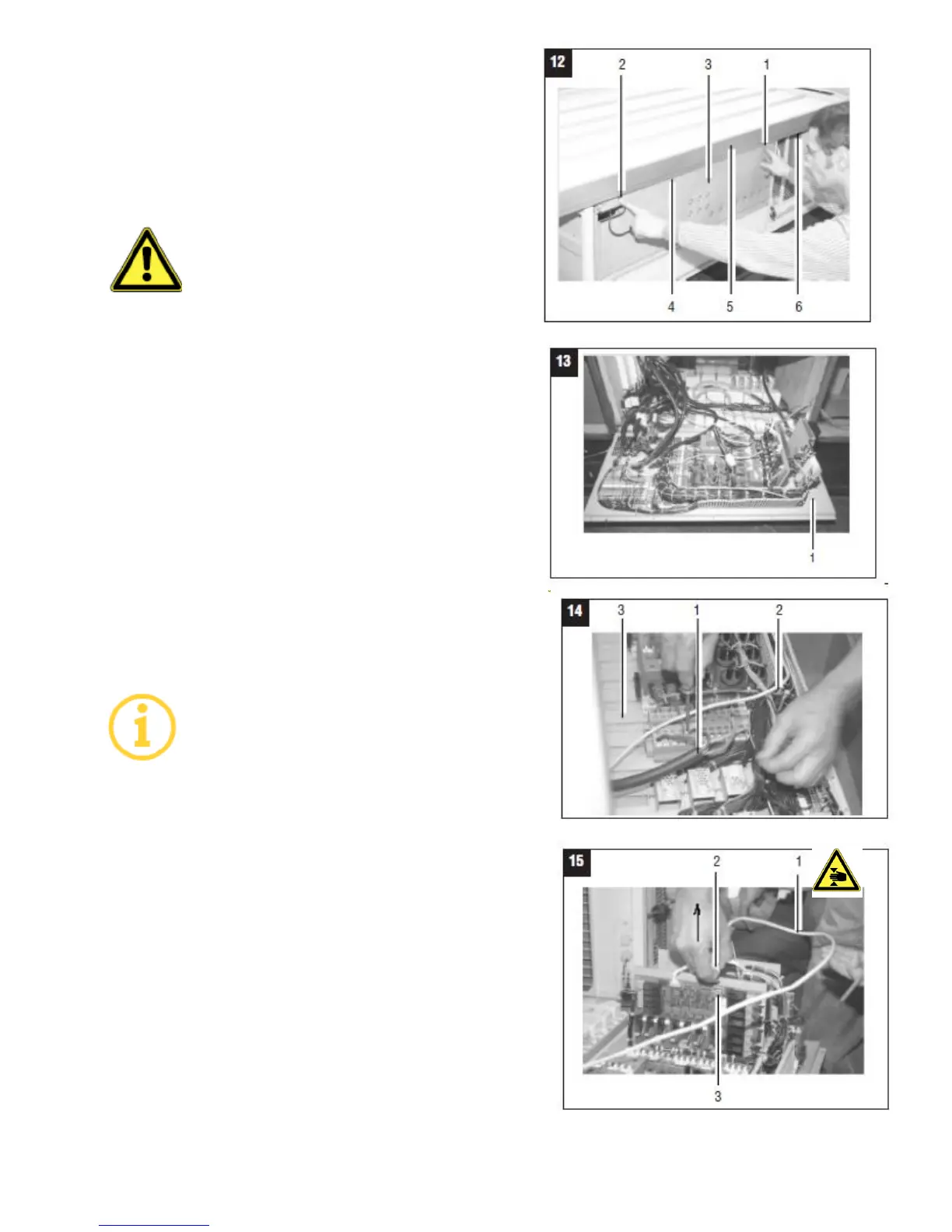

Removal of the control unit’s mounting plate
• Remove the right (12/1) and left (12/2) M6 screws
that fasten the control unit’s mounting plate (12/3)
• Tilt the control unit’s mounting plate (12/3) forwards,
lift it and place it on the floor
• Remove the attachment bracket for the control
unit’s mounting plate (12/4) under the bench frame
(12/5)
• Remove the attachment bracket for the filter
holder (12/6) (optional air conditioning unit)
Control unit’s mounting plate hinged down
