46
Removal of the control lead for the control panel
• Hold the control lead for the control panel (15/1) by
the plug (15/2), release the locking device on the
plug (by pressing it in) and pull it upwards out of the
socket (15/3)
Do not pull it by the lead because this
could damage the contacts.

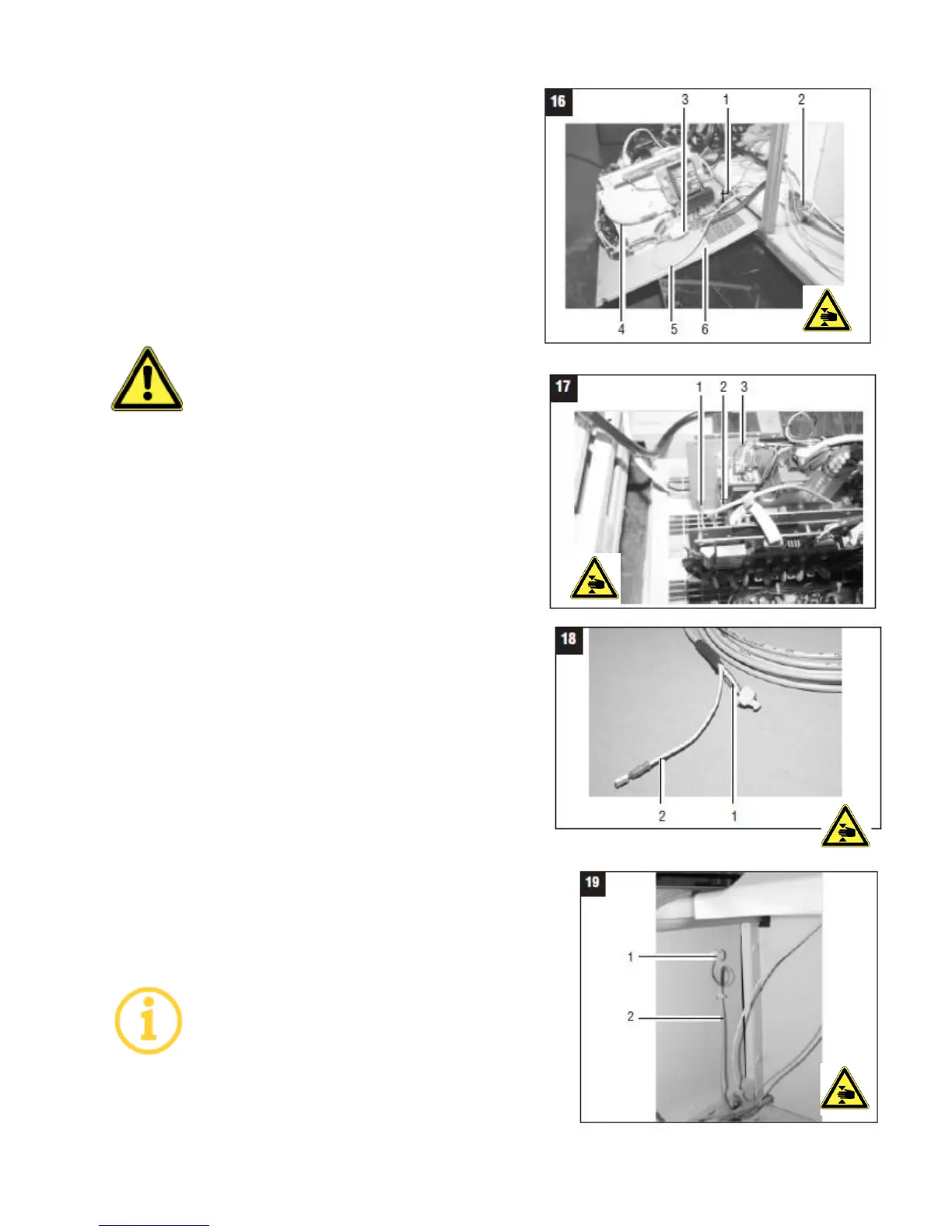

Special control leads
• Disconnect the loudspeaker leads for the
multifunction unit (16/1) (red/black for left
loudspeaker, yellow/blue for right loudspeaker,
viewed from the bed)
• Disconnect the control lead X10 for the air
conditioning unit (optional)
• Disconnect the control lead X11 for the multifunction
unit (16/3)
• Disconnect the audio-in lead (16/4) to the audio
system’s connection plate
• Disconnect the control lead (16/5) to the headphone
socket on the control panel
• Disconnect 3-wire control lead (17/1) with Phoenix plug
and 1-wire mains lead (17/2) (yellow/green) with AMP plug
3-wire control lead (18/1) with Phoenix plug
and 1-wire mains lead (18/2) (yellow/green)
with AMP-plug
