47

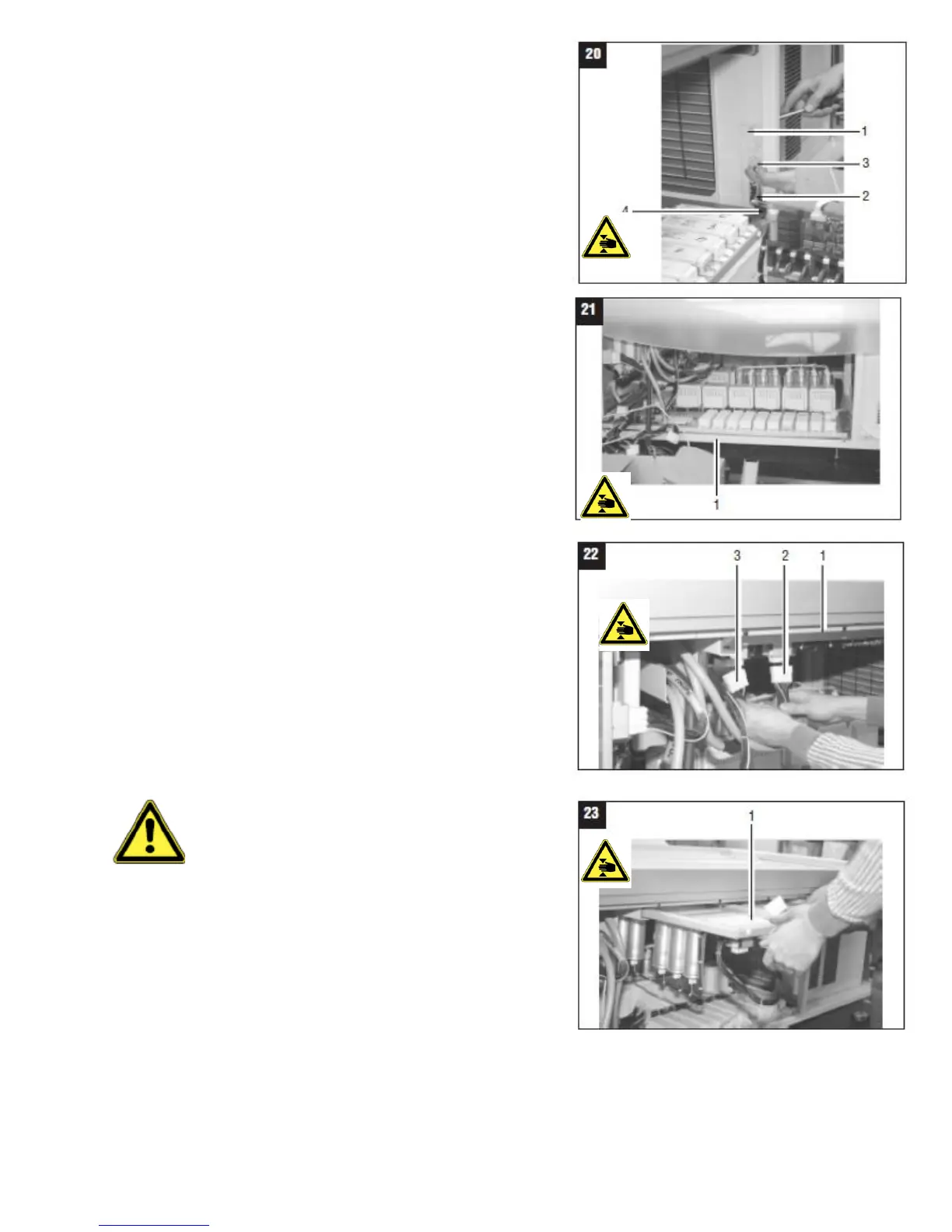

Disconnecting the head end supply
• Undo screws (20/1) and (20/2) in the lead through plate
• Disconnect the mains lead (20/3) for the air conditioning
unit
• Remove the control unit’s mounting plate
Removal of the mounting plate of the front
high pressure lamp module
1. Disconnect plug X6 for the mounting plate for the front
high pressure lamp module. Pull it out by the plug and not
by the lead.
2. Remove the mounting plate for the front high pressure
lamp module (21/1)
Removal of the bench mounting plate
1. Disconnect plugs X9 (22/2) and X8 (22/3), which
lead to the bench, at the mounting plate (22/1).
Pull them out by the plug, not by the lead.
To prevent the heavy bench mounting plate
(23/1) from falling after pulling it out of its
guide, pull it out only half way.
2. Carefully pull out the bench mounting plate (23/1) half
way
3. Remove the mounting plate
