48

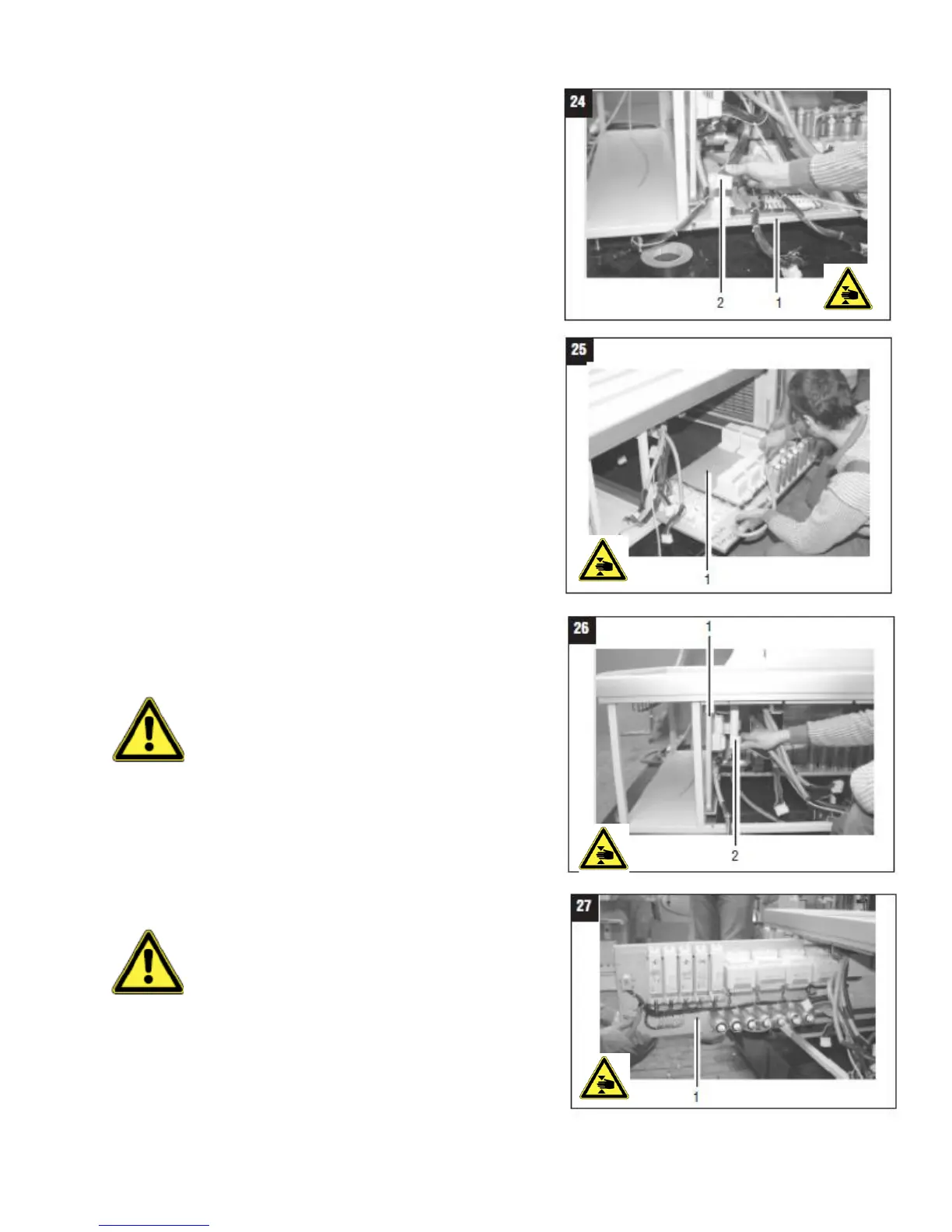

Removal of the mounting plate for the rear
high pressure lamp module
1. Disconnect plug (24/2) X3 for the mounting plate of
the front high pressure lamp module (24/1). Pull out by
the plug, not by the lead.
To prevent the heavy mounting plate for the rear high
pressure lamp module (25/1) from falling out of its guides
after pulling it out, pull it out only half way.
2. Carefully pull out the mounting plate for the rear high
pressure lamp module (25/1) half way
3. Remove the mounting plate for the rear high pressure
lamp module (25/1)
Removal of the mounting plate for the middle
high pressure lamp module
1. Disconnect plug X2 (26/2) for the middle
high pressure lamp module (26/1). Pull out by the plug,
not by the lead.
To prevent the heavy mounting plate for the
rear high pressure lamp module (27/1) from
falling out of its guides after pulling it out, pull it
out only half way.
