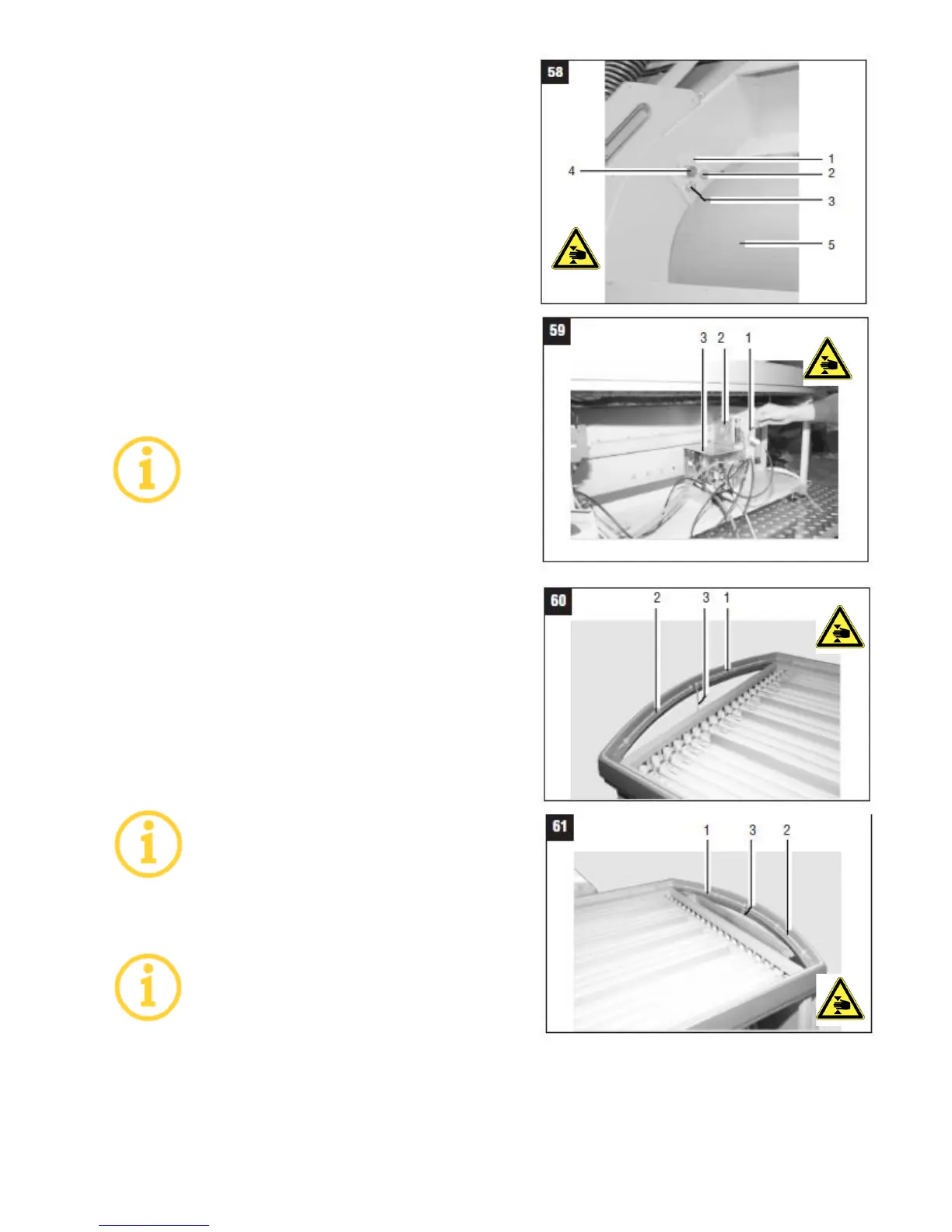

• Remove the two left screws (58/2 + 3) for the rear
high pressure lamp module
• Lift the rear high pressure lamp module
(remove from the 2 suspension points)
• Swivel the rear high pressure lamp module to the
front
• Pull the rear high pressure lamp module away to
the bottom
Removal of the bench
Before the bench trough and bench frame
are removed, the control leads to the LED
illumination of the bed are to be
disconnected at the foot and head ends.
• Disconnect control lead (59/1) X31 for foot-end LED
illumination at the power supply for LED-illumination of
the bed in the foot
LED-illumination (60/1+2) and control lead (60/1) X31
for LED-illumination at foot end of bed
LED-illumination (61/1+2) and control lead (61/1) X32
for LED-illumination at head end of bed
