54

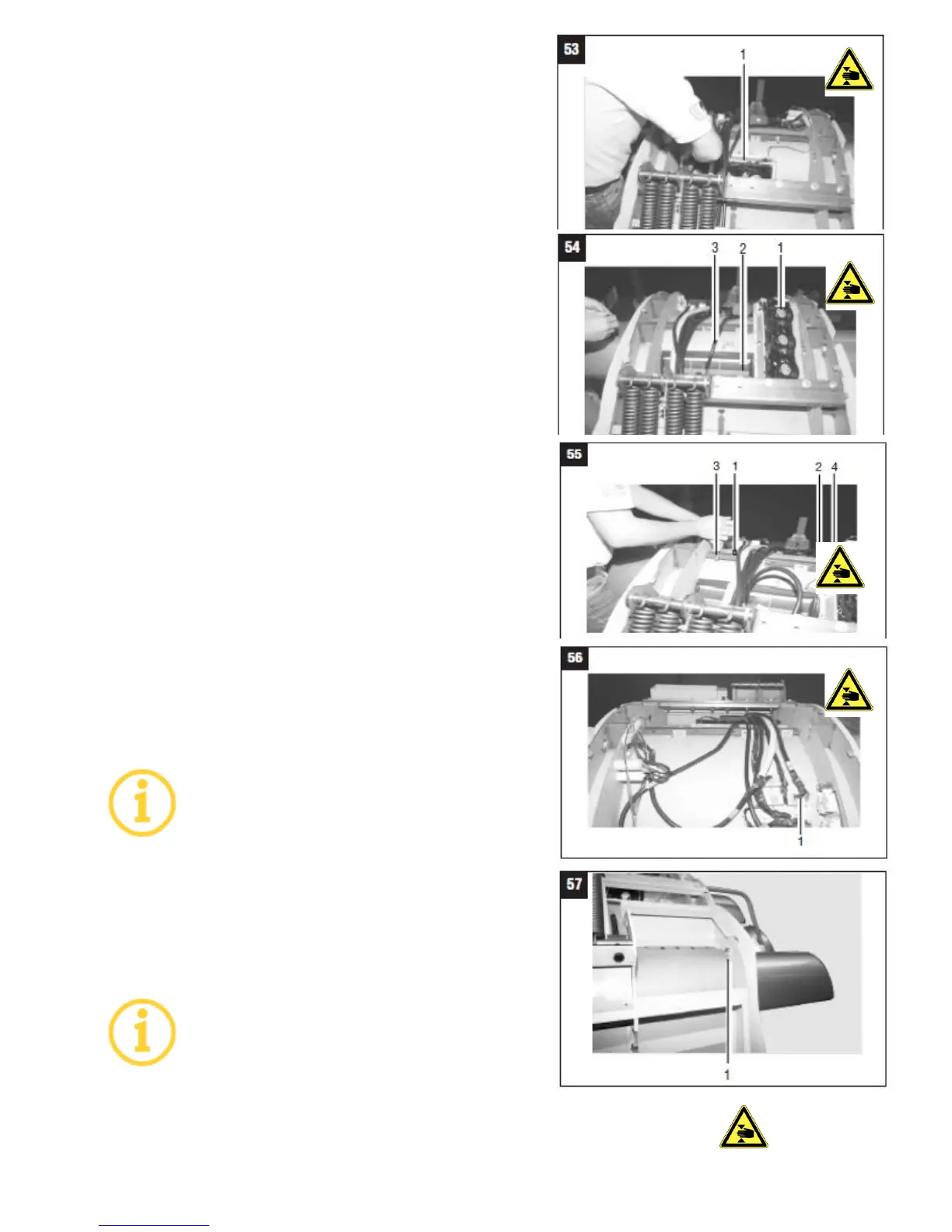

• Unscrew the fan of the middle high pressure lamp
module (53/1)
• Place the fan of the middle high pressure lamp
module (54/1) to the side
• Push the lead complete with plug X17 (54/3) through
the opening (54/2)
• Remove the screws (55/3 + 4) from the middle high
pressure lamp module
• Remove the nuts complete with washers from the
mounting bolts (55/1 + 2)
• Take away the middle high pressure lamp
module downwards
Removal of the rear high pressure lamp module
• Demount the exhaust air duct and left cover for the
rear high pressure lamp module
see photos (37 + 38)
• Disconnect control lead X16 (56/1) from the front
cantilever arm and push it through to the rear high
pressure lamp module
• Disconnect the two right screws (57/1) for the rear high
pressure lamp module
see also photo (39)
