53

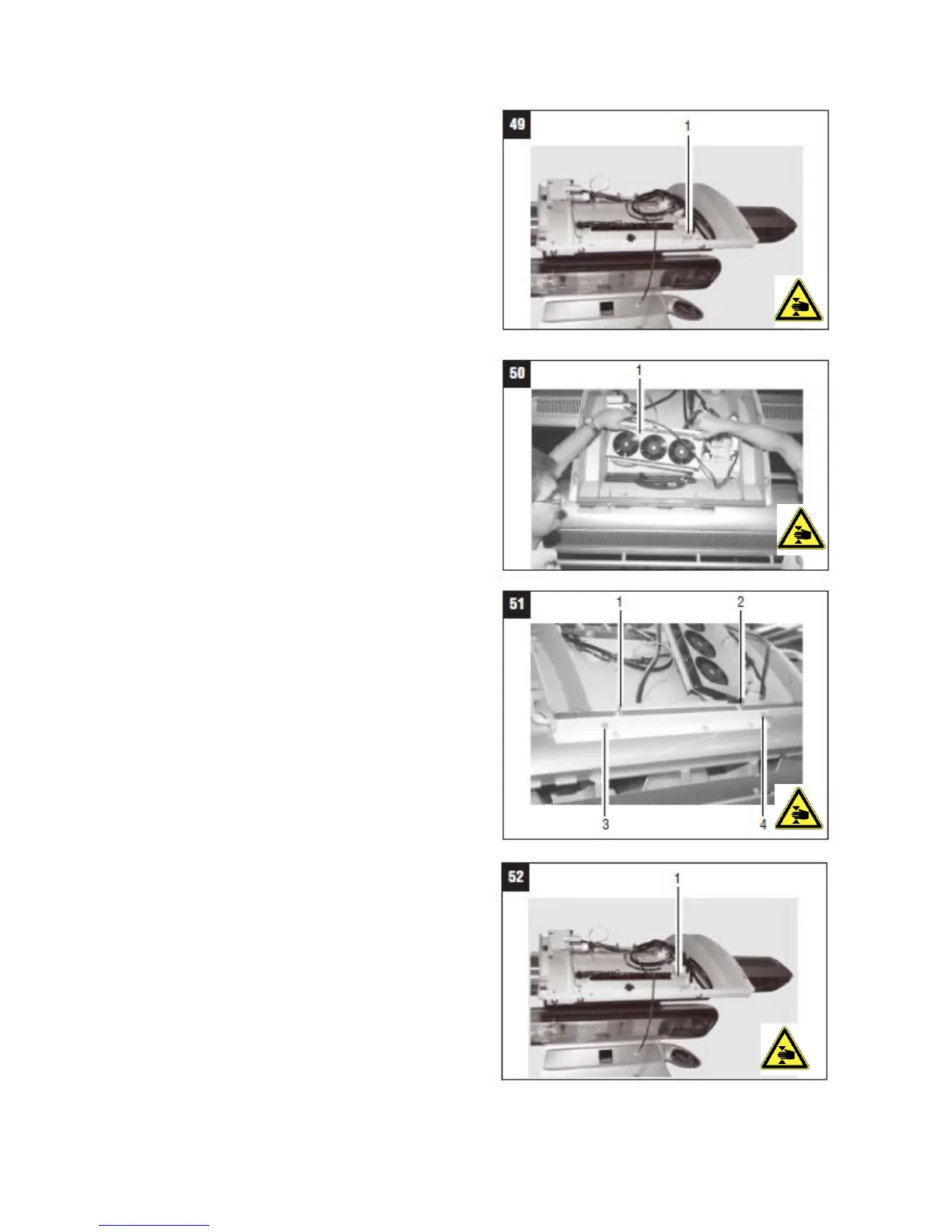

Removal of front high pressure lamp module
• Disconnect connector X17 (49/1)
• Unscrew the fan of the front high pressure lamp
module (50/1)
• Remove the screws (51/3 + 4) from the front
high pressure lamp module
• Remove the nuts complete with washers from
the mounting bolts (51/1 + 2)
• Take away the front high pressure lamp
module
Downwards
Removal of the middle high pressure lamp
Module
• Disconnect connector X15 (52/1) from the front
of the cantilever arm
