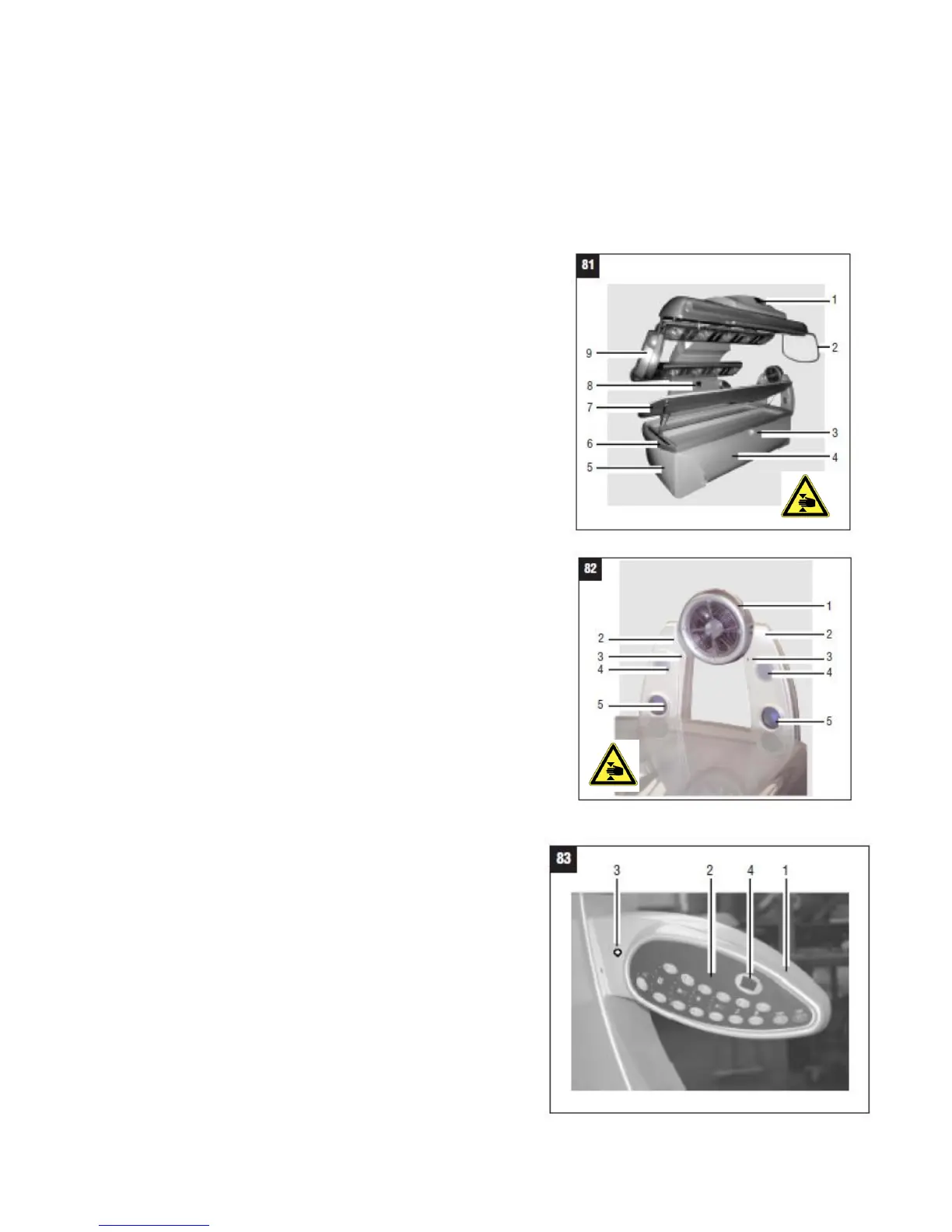

MAIN SUBASSEMBLIES
Base housing
• Bench trough (concealed under bench sheet)
• Bench sheet (80/7), hinged up (81/7)
• Bench frame (81/6) (with acclimatizing sheet and lamp
holder supports, optional)
• Side panel at foot end (80/9) and (81/5)
• Front apron (81/4) with locking device (81/3)
• Side panel at head end (concealed)
• Multifunction unit (80/6) with head-end fan
(80/5)
Stand with canopy
• Stand (80/10)
• Cantilever arm (80/11)
• uwe logo (81/8) and effect lighting on the stand
• uwe logo (81/1) on the cantilever arm
• Rear high pressure lamp module (80/1)
• Middle high pressure lamp module (80/2)
• Front high pressure lamp module (80/3) with canopy
handle (81/2)
• Body fans (80/4) and (81/9)
Multifunction unit consisting of
• Head end fan (82/1)
• BREEZE nozzles (82/3)
• Loudspeakers (82/4)
• Shoulder tanner (82/5)
• Plastic paneling (82/2)
Control panel consisting of
• Enclosure (83/1)
• Membrane keypad (83/2) with display (83/4)
• Headphone socket (83/3)
