60
Prerequisites:
The couplings of the BREEZE line and leakage
line are disconnected

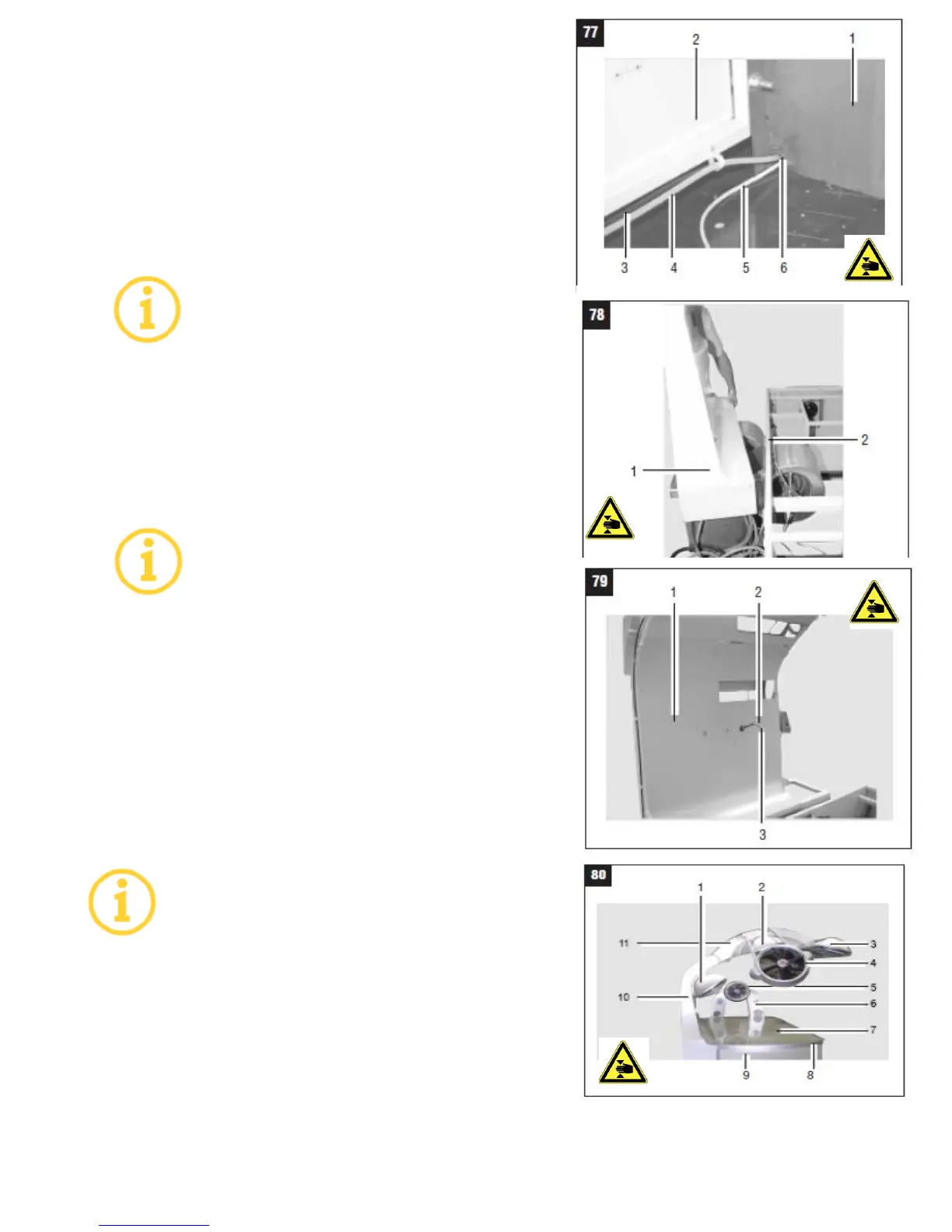

• Pull the BREEZE line (73/3) and leakage line (77/4) through
the connecting pipe on the underside of the stand to the
head end
• Detach the stand (78/1) from the base frame (78/2)
The lines remain on the stand. Fasten securely
for transport
Removal of the stand paneling
Prerequisite:
Rear high pressure lamp module is demounted
• Remove the screw connections between the plastic
paneling and the stand
• Disconnect control leads X33 (79/2) for uwe logo and X34
(79/3) for LED-illumination on stand
• Remove the plastic paneling
Paneling removed from the stand
