V-Tec DT601 - Cables Requirements; When Monitor Quantity < 20; When Monitor Quantity > 20

-15-
RF CARD
The farest monitor
B
A
C
DBC4A1
monitor
monitor
monitor
with two or four monitors
100~240VAC
BUS(IM) BUS(DS)
PC6A
AC~

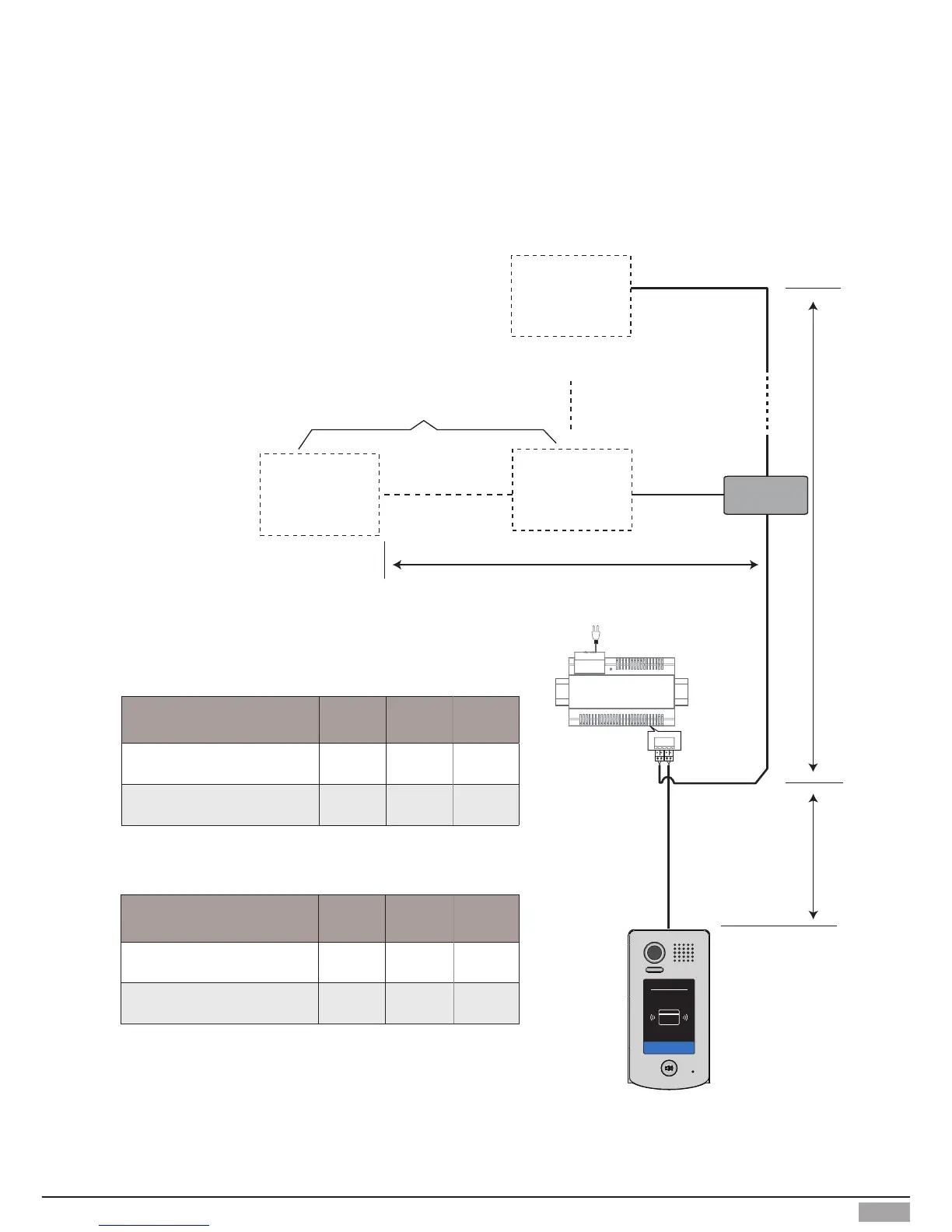

11. Cables Requirements
The maximum distance of the wiring is limited in the DT system. Using different cables may also affect the
maximum distance which the system can reach.
When Monitor quantity < 20
Cable Usage A B C
Twisted cable 2x0.75 mm
2
60 60 30
Twisted cable 2x1 mm
2
80 80 40
When Monitor quantity > 20
Cable Usage A B C
Twisted cable 2x1 mm
2
70 30 20
Twisted cable 2x1.5 mm
2
70 50 30
Note:Ifthemonitorhasbeenspeciedthedistance,referto
the parameter.
